Description
Product Description

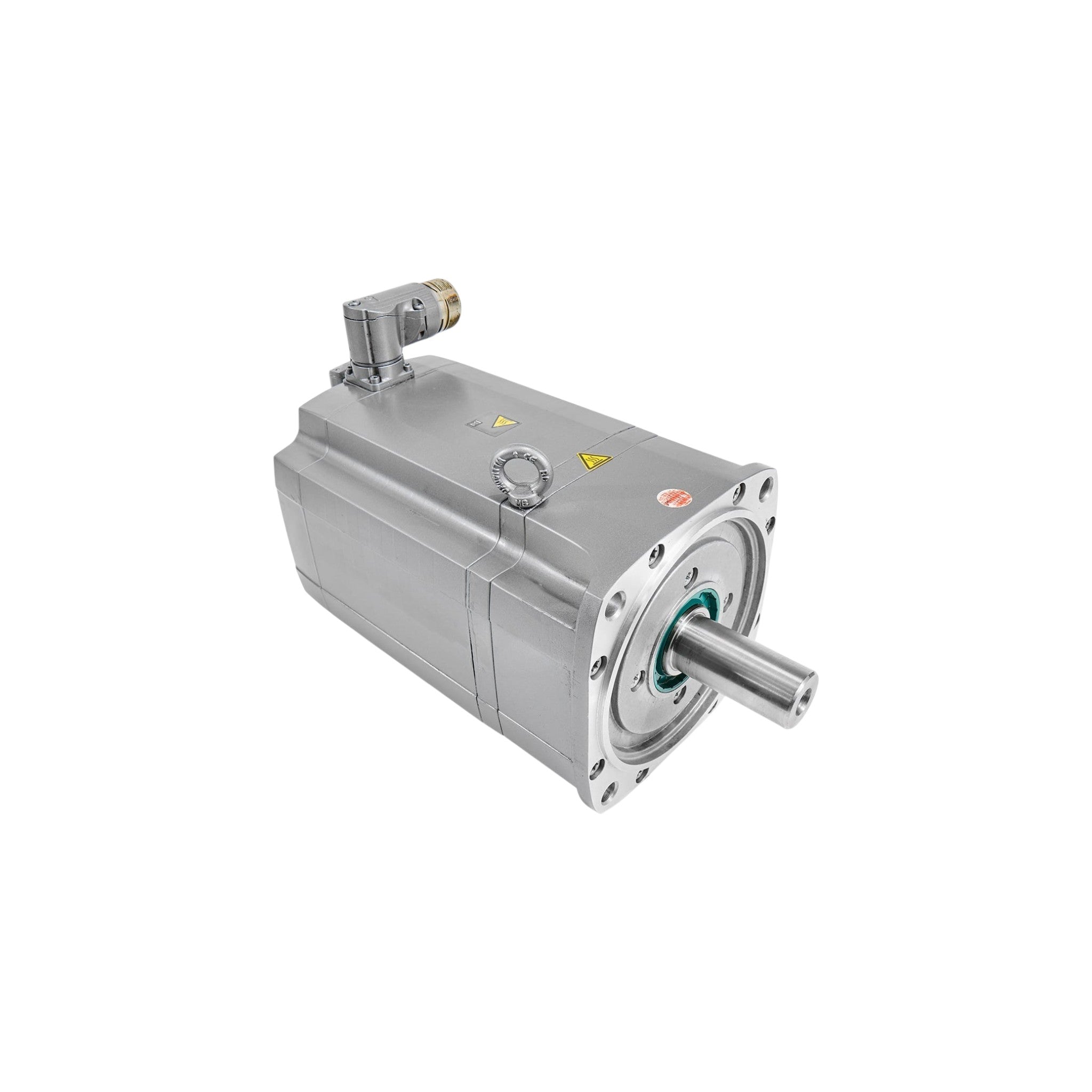

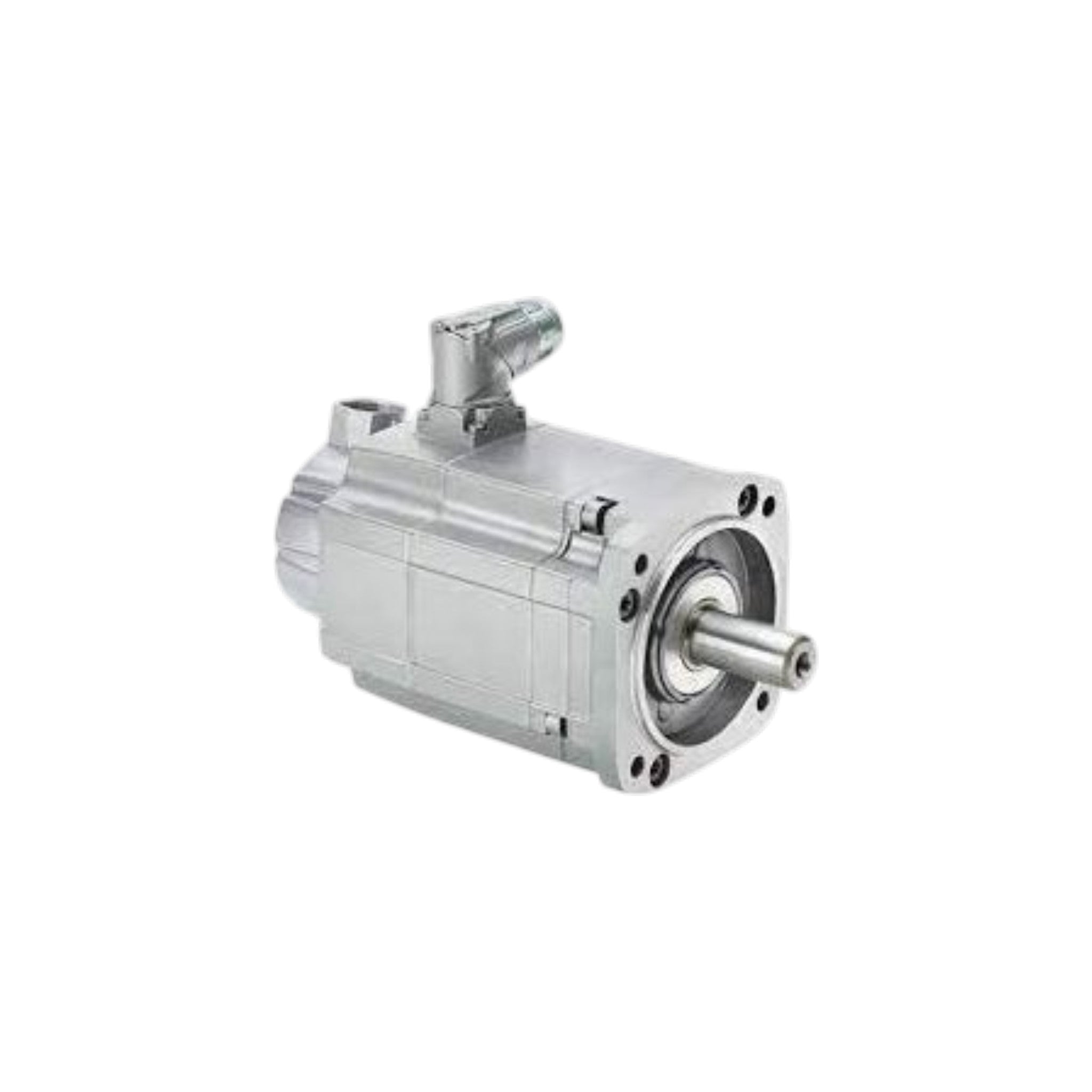

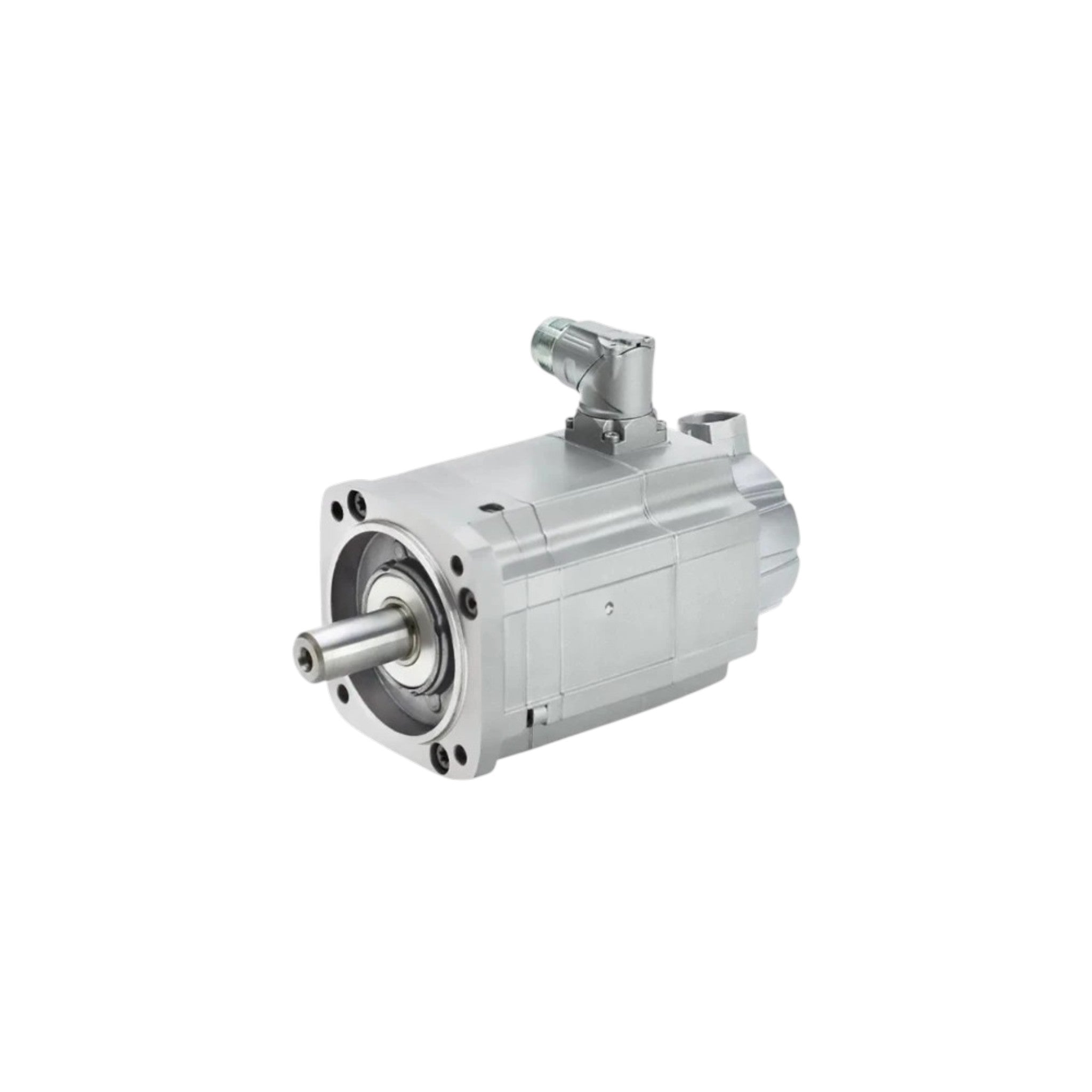

The Siemens 1FT7105-5AC7X-1XXX belongs to the SIMOTICS S-1FT7 family of permanent magnet synchronous servo motors, engineered for demanding motion control applications requiring high torque, precision positioning, and exceptional dynamic performance. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems, this motor family is ideal for CNC machine tools, industrial robotics, packaging machinery, material handling equipment, printing presses, semiconductor manufacturing, and automated production lines.
Operating at a rated speed of 2,000 RPM, the 1FT7105-5AC7X-1XXX series delivers 8.0 kW rated output power, 38 Nm rated torque, and 50 Nm stall torque (100 K). The motors provide up to 200 Nm maximum torque and support maximum mechanical speeds of 6,000 RPM, offering excellent overload capability, rapid acceleration, and highly accurate speed and position control. The permanent magnet synchronous design ensures high efficiency, low rotor inertia, and reliable continuous-duty operation.
The 1FT7105-5AC7X-1XXX product family includes numerous MLFB variants with different encoder technologies, shaft configurations (plain shaft or fitted key), optional holding brakes, connector orientations, and protection classes. All variants feature natural cooling, IM B5 flange mounting, DRIVE-CLiQ communication, integrated motor temperature monitoring, and rotatable power connectors. The exact electrical and mechanical configuration is determined by the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Designed for Siemens SINAMICS S120 servo drive systems
- Rated output power: 8.0 kW
- Rated speed: 2,000 RPM
- Rated torque: 38 Nm
- Stall torque (100 K): 50 Nm
- Maximum torque: 200 Nm
- Maximum mechanical speed: 6,000 RPM
- Natural convection cooling
- High overload capability
- DRIVE-CLiQ encoder interface
- Available with incremental, single-turn, and multiturn absolute encoders
- Plain shaft or keyed shaft options
- Optional integrated holding brake
- IM B5 flange mounting
- Rotatable power connector
- Integrated temperature monitoring
- IP64/IP65/IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Series | 1FT7105-5AC7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Rated Power | 8.0 kW |
| Rated Speed | 2,000 RPM |
| Rated Torque | 38 Nm |
| Stall Torque (100 K) | 50 Nm |
| Maximum Torque | 200 Nm |
| Rated Current | 15 A |
| Stall Current (100 K) | 18 A |
| Maximum Current | 84 A |
| Maximum Mechanical Speed | 6,000 RPM |
| Maximum Converter Speed | 3,350 RPM |
| Number of Poles | 10 |
| Efficiency | 93% |
| Torque Constant | 2.68 Nm/A |
| Voltage Constant | 170.5 V/1000 RPM |
| Rotor Inertia | Approx. 178–206 kg·cm² (variant dependent) |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Keyed Shaft |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated Temperature Sensor |
| Drive Compatibility | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Turning Centers
- Industrial Robotics
- Packaging Machinery
- Material Handling Systems
- Printing & Converting Equipment
- Semiconductor Manufacturing
- Textile Machinery
- Automated Assembly Lines
- Precision Motion Control Systems
