Product Description

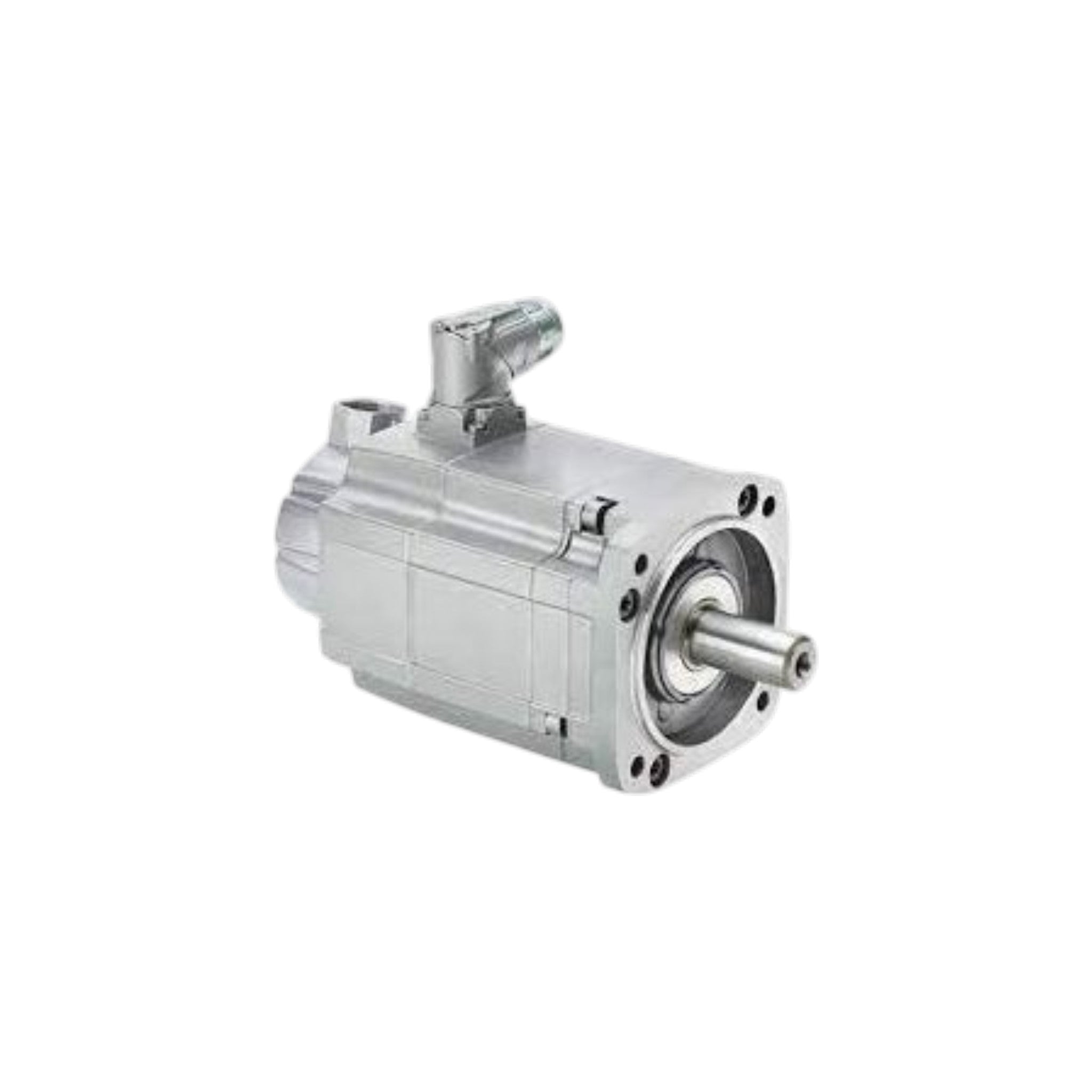

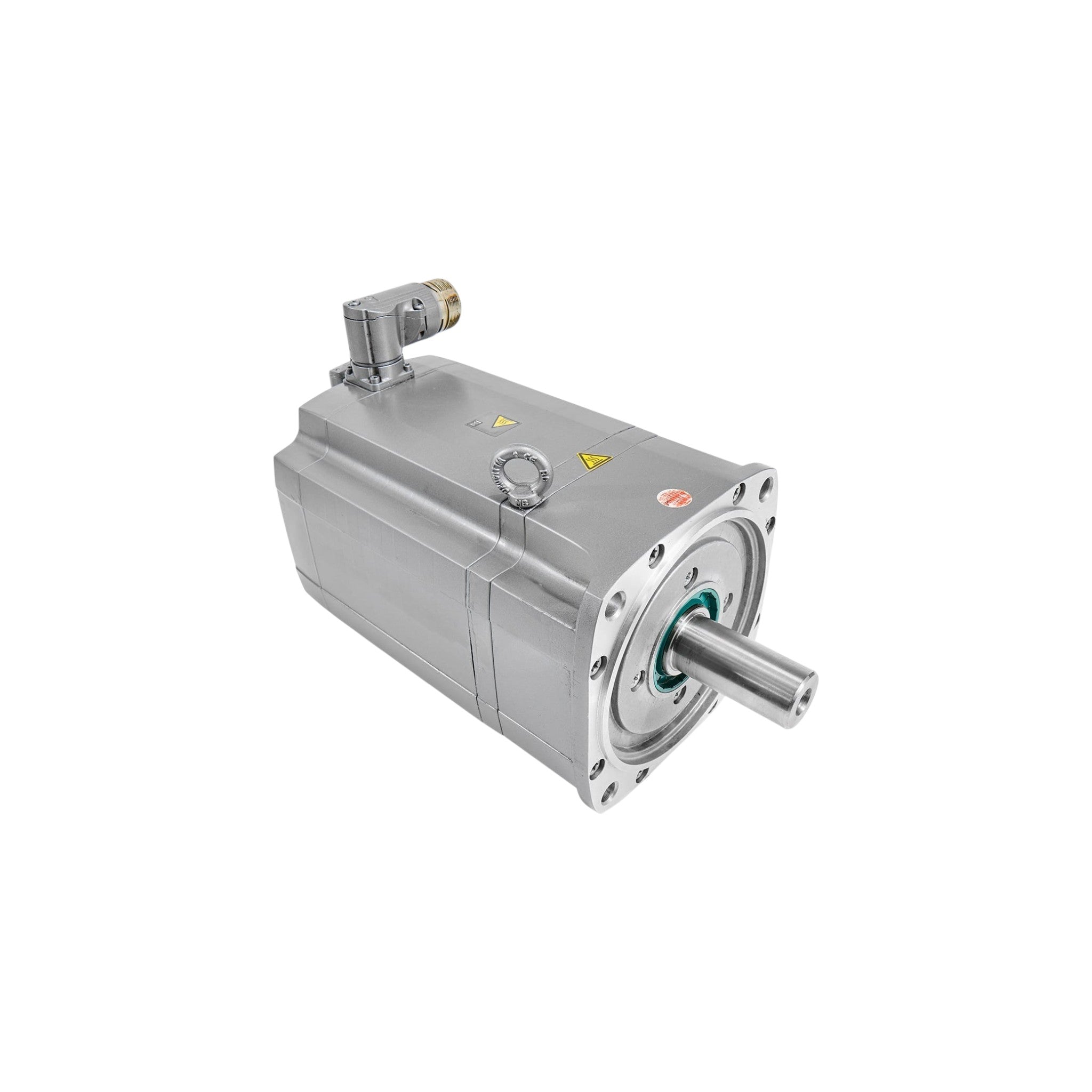

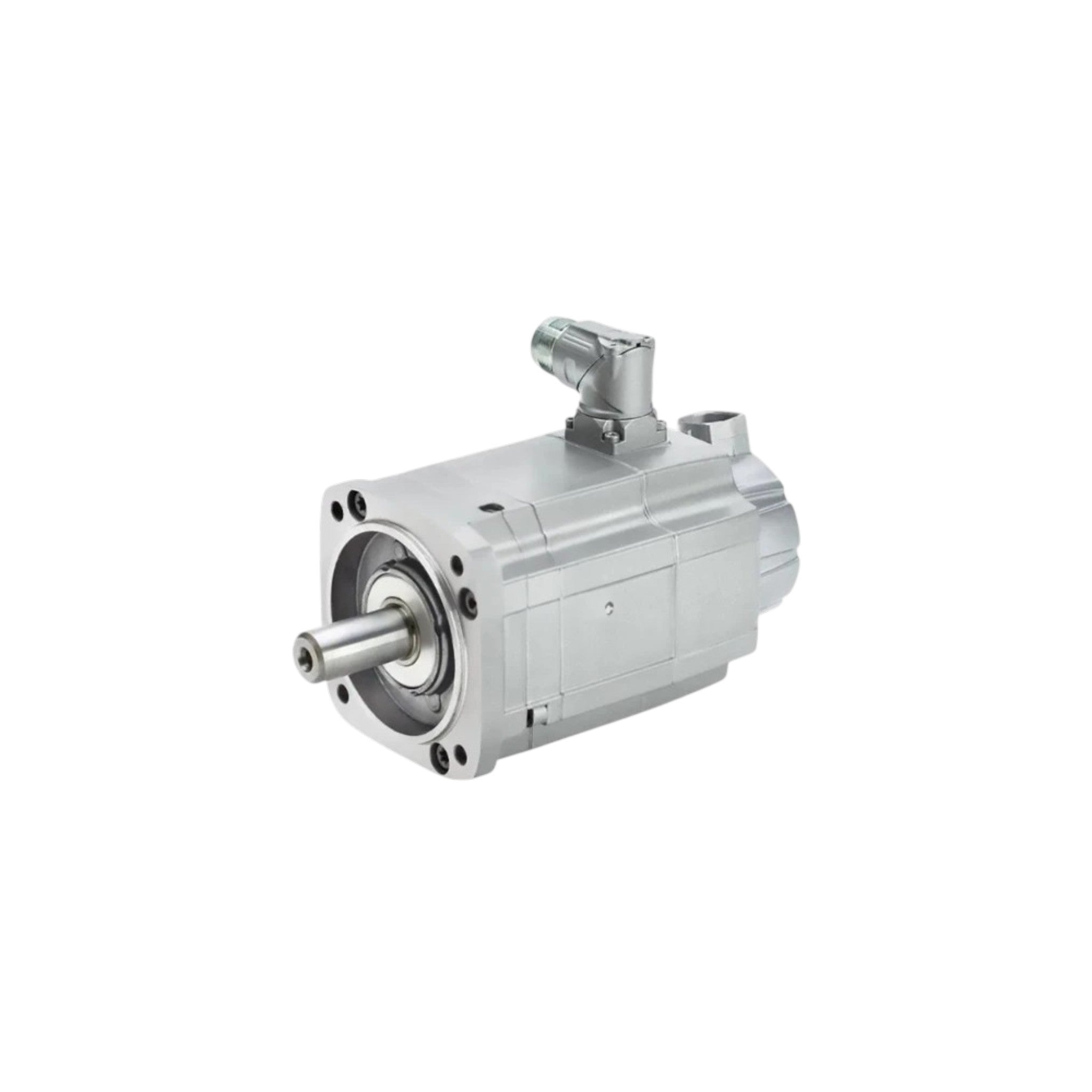

The Siemens 1FT7105-5AF7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor engineered for demanding industrial motion control applications requiring high continuous torque, exceptional positioning accuracy, and superior dynamic response. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems via the DRIVE-CLiQ interface, this naturally cooled servo motor delivers outstanding efficiency and reliability for CNC machine tools, industrial robotics, packaging machinery, printing equipment, material handling systems, and automated production lines.
Operating at a rated speed of 3,000 RPM, the 1FT7105-5AF7X-1XXX delivers 8.80 kW rated output power, 28 Nm rated torque (100 K), and 50 Nm stall torque (100 K). The motor is capable of producing up to 200 Nm maximum torque while supporting a maximum mechanical speed of 6,000 RPM, providing excellent overload capability, rapid acceleration, and highly accurate motion control. The permanent magnet rotor design ensures high torque density, low inertia, and high operating efficiency of up to 94%.
The 1FT7105-5AF7X-1XXX product family includes numerous MLFB variants featuring different encoder technologies, shaft configurations (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and protection ratings. All variants feature natural cooling, IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication. The exact motor configuration depends on the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Designed for Siemens SINAMICS S120 servo drive systems
- Rated output power: 8.80 kW
- Rated speed: 3,000 RPM
- Rated torque: 28 Nm
- Stall torque (100 K): 50 Nm
- Maximum torque: 200 Nm
- Maximum mechanical speed: 6,000 RPM
- High efficiency (up to 94%)
- Natural cooling
- DRIVE-CLiQ digital encoder interface
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft configurations
- Optional holding brake
- IM B5 flange mounting
- Rotatable power connector
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7105-5AF7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Rated Power | 8.80 kW |
| Rated Speed | 3,000 RPM |
| Rated Torque | 28 Nm |
| Stall Torque (100 K) | 50 Nm |
| Maximum Torque | 200 Nm |
| Rated Current | 15 A |
| Stall Current (100 K) | 26 A |
| Maximum Current | 116 A |
| Maximum Mechanical Speed | 6,000 RPM |
| Maximum Inverter Speed | 4,630 RPM |
| Number of Poles | 10 |
| Efficiency | 94% |
| Torque Constant | 1.92 Nm/A |
| Voltage Constant | 123.5 V/1000 RPM |
| Winding Resistance | 0.08 Ω |
| Rotating Field Inductance | 2.3 mH |
| Electrical Time Constant | 27 ms |
| Mechanical Time Constant | 1.2 ms |
| Thermal Time Constant | 80 min |
| Rotor Inertia | 178 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 206 × 10⁻⁴ kg·m² |
| Motor Weight | 44.2 kg |
| Motor Weight (with Brake) | 50.4 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated Temperature Sensor |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected MLFB configuration and encoder/brake options.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Printing Machinery
- Material Handling Systems
- Semiconductor Manufacturing
- Automated Assembly Lines
- Metalworking Equipment
- High-Speed Production Systems
- Precision Motion Control Applications
