Description
Product Description

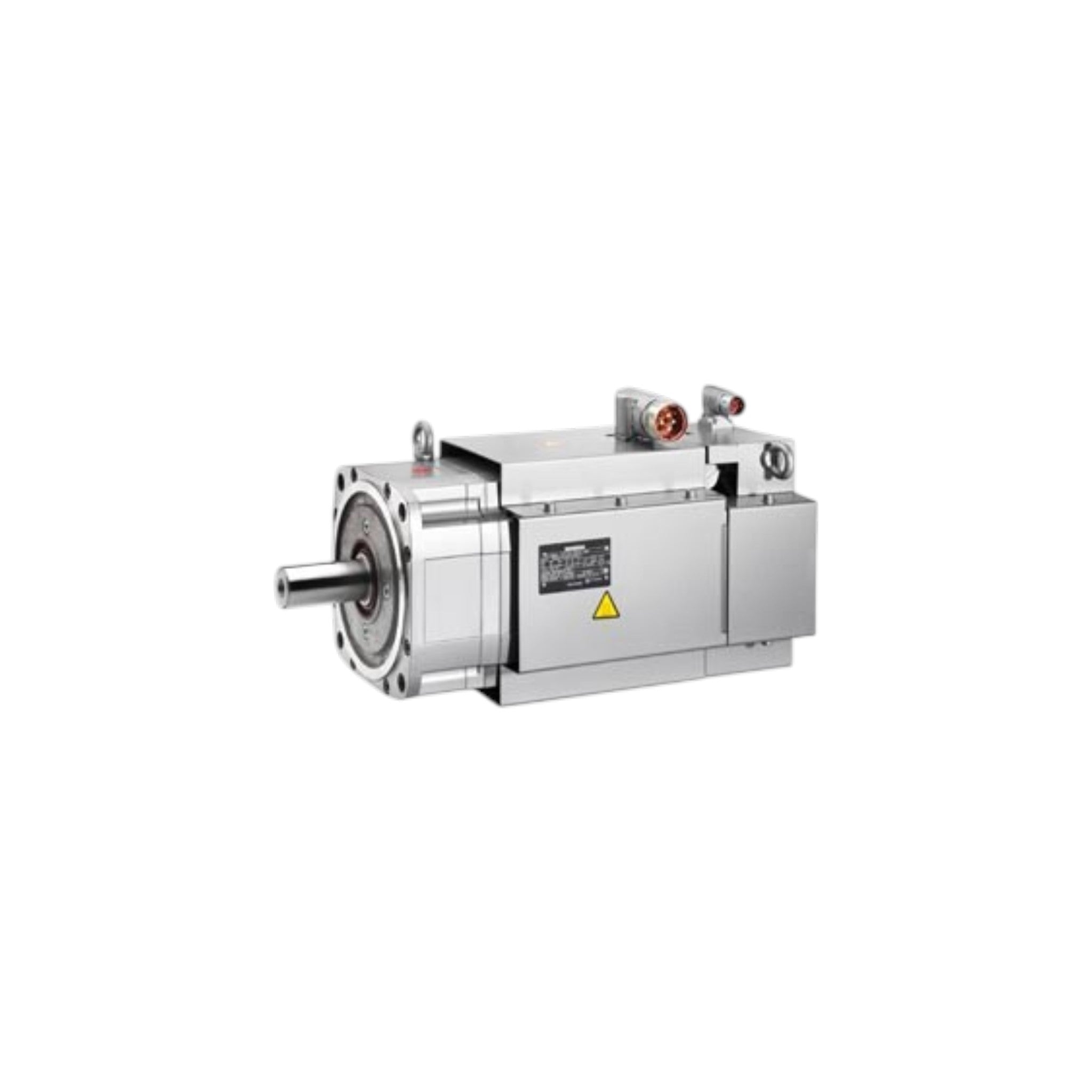

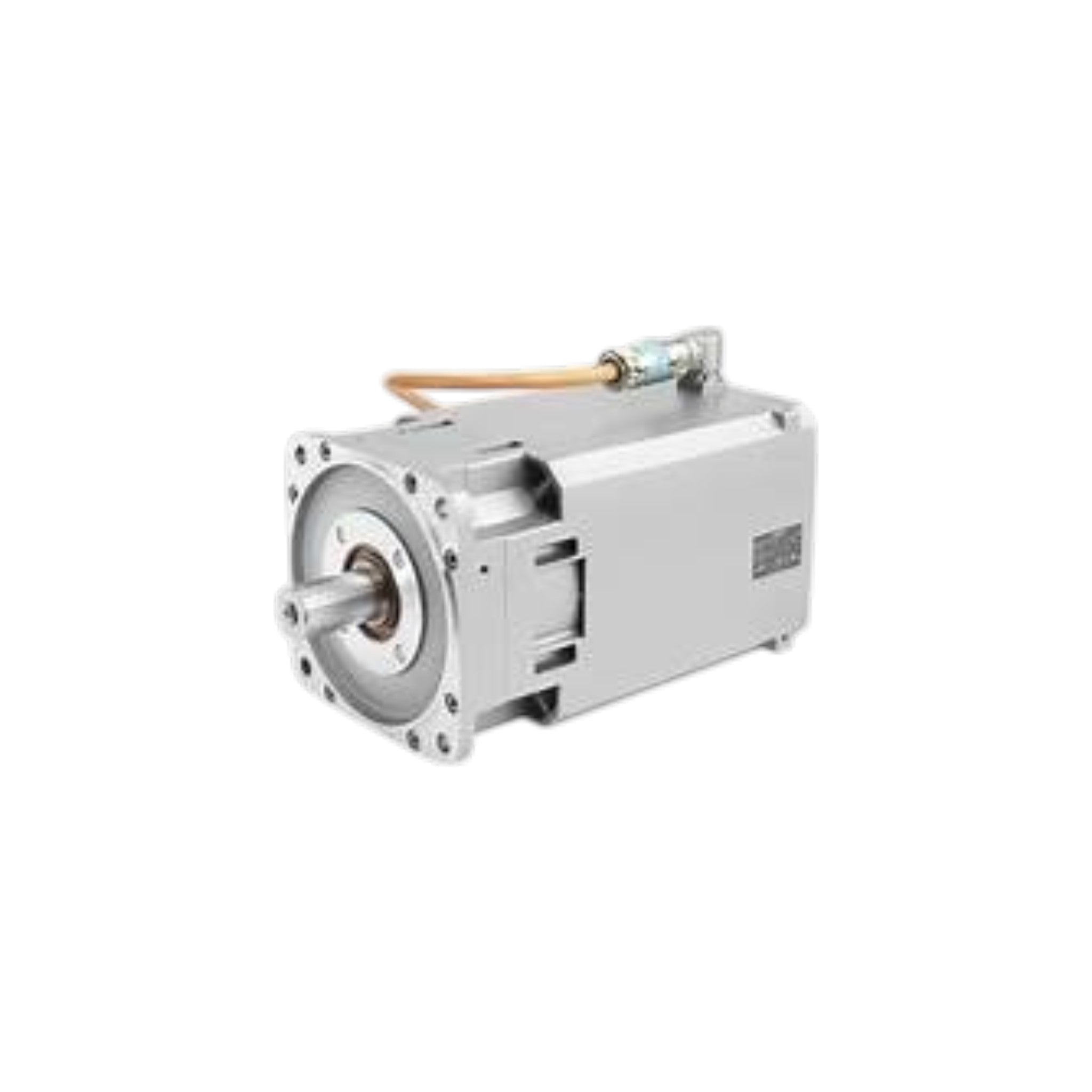

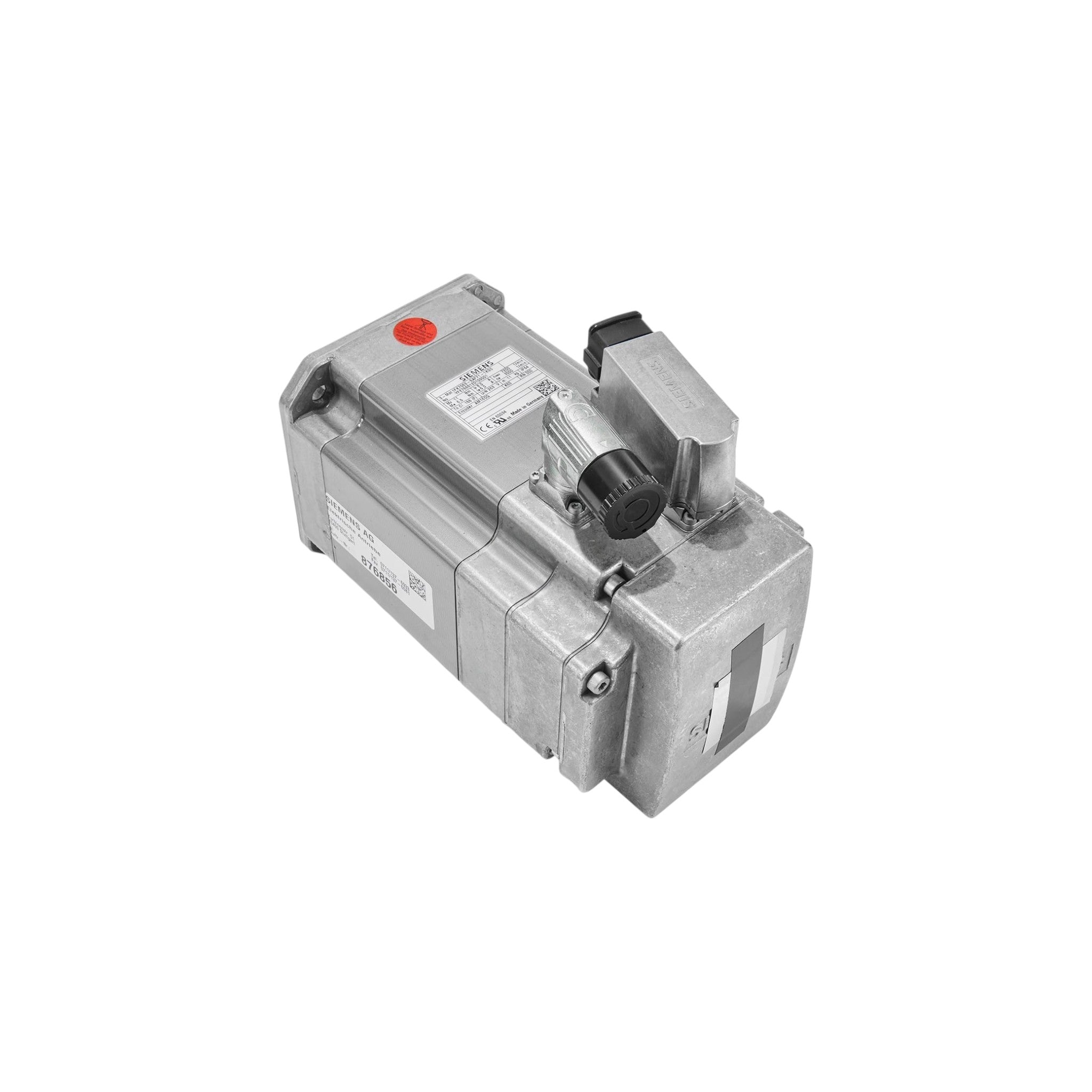

The Siemens 1FT7105-5SC7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for demanding industrial motion control applications requiring high torque, precise positioning, and continuous-duty reliability. Engineered for seamless integration with Siemens SINAMICS S120 servo drive systems through the DRIVE-CLiQ interface, this forced-ventilated servo motor delivers exceptional dynamic response, excellent overload capability, and energy-efficient performance for CNC machine tools, rotary tables, robotics, packaging machinery, metal processing equipment, and automated production systems.
Operating at a rated speed of 2,000 RPM, the 1FT7105-5SC7X-1XXX provides an optimum output power of 11.7 kW, 56 Nm rated torque (100 K), and 65 Nm stall torque (100 K). The motor delivers up to 200 Nm maximum torque while supporting a maximum mechanical speed of 6,000 RPM, making it ideal for applications requiring high torque, rapid acceleration, and continuous industrial operation. Forced ventilation ensures efficient heat dissipation and reliable performance under heavy load conditions.

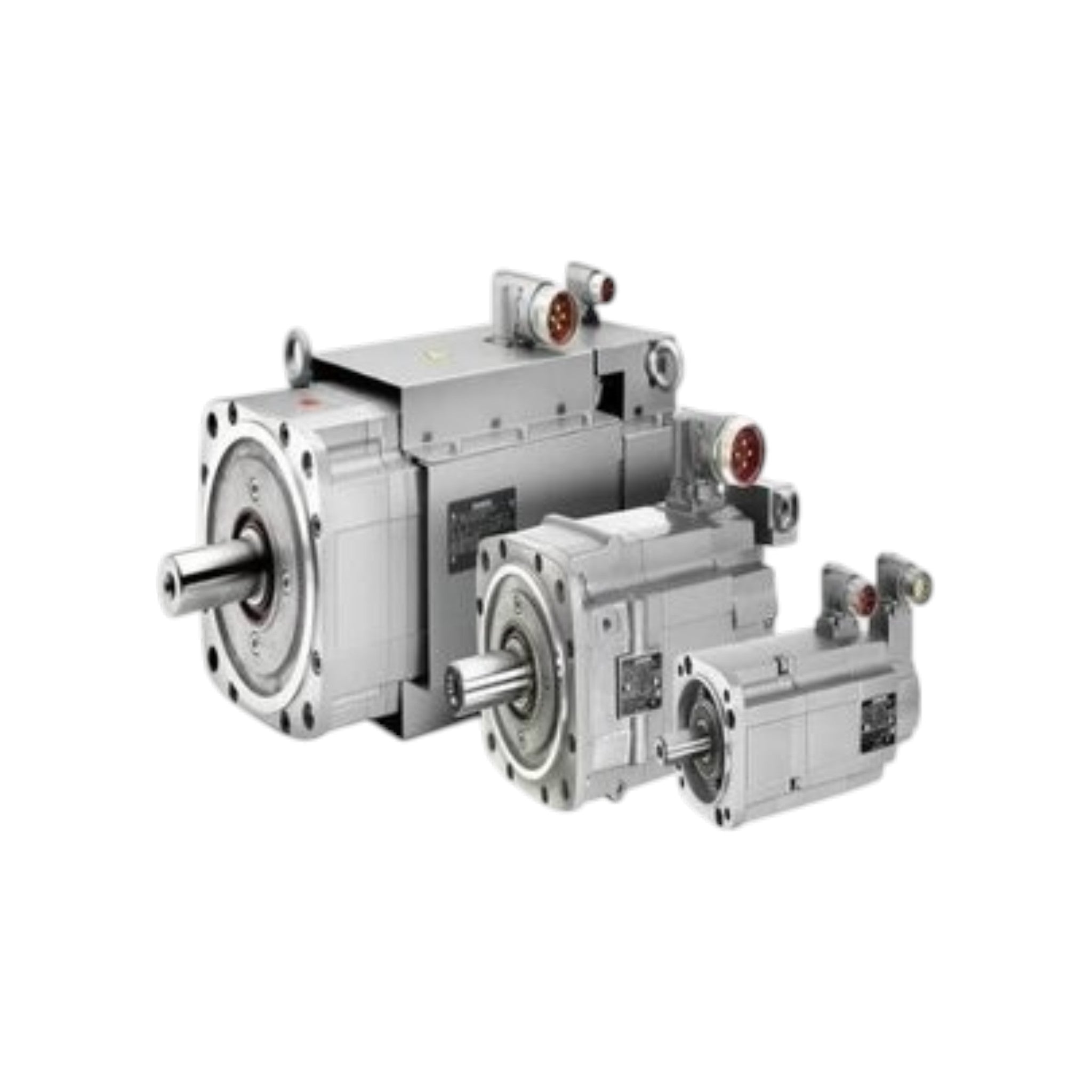

The 1FT7105-5SC7X-1XXX family is available in multiple MLFB variants with different encoder technologies, shaft configurations (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and protection classes. All variants feature IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ digital communication for fast commissioning and advanced diagnostics.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drive systems
- Forced ventilation cooling
- Optimum output power: 11.7 kW
- Rated speed: 2,000 RPM
- Rated torque: 56 Nm
- Stall torque (100 K): 65 Nm
- Maximum torque: 200 Nm
- Maximum mechanical speed: 6,000 RPM
- Efficiency: 93%
- DRIVE-CLiQ digital encoder interface
- High torque density with low rotor inertia
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft configurations
- Optional permanent-magnet holding brake
- IM B5 flange mounting
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7105-5SC7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Forced Ventilation |
| Optimum Output Power | 11.7 kW |
| Rated Speed | 2,000 RPM |
| Optimum Speed | 2,000 RPM |
| Rated Torque (100 K) | 56 Nm |
| Stall Torque (100 K) | 65 Nm |
| Stall Torque (60 K) | 51 Nm |
| Maximum Torque | 200 Nm |
| Rated Current | 29 A |
| Stall Current (100 K) | 31 A |
| Stall Current (60 K) | 24 A |
| Maximum Current | 107 A |
| Maximum Mechanical Speed | 6,000 RPM |
| Maximum Converter Speed | 4,250 RPM |
| Rated Converter Current | 45 A |
| Maximum Converter Current | 85 A |
| Maximum Converter Torque | 168 Nm |
| Number of Poles | 10 |
| Efficiency | 93% |
| Torque Constant | 2.11 Nm/A |
| Voltage Constant | 134.5 V/1000 RPM |
| Winding Resistance | 0.10 Ω |
| Rotating Field Inductance | 2.7 mH |
| Electrical Time Constant | 27 ms |
| Mechanical Time Constant | 1.2 ms |
| Rotor Inertia | 178 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 206 × 10⁻⁴ kg·m² |
| Motor Weight | 50 kg |
| Motor Weight (with Brake) | 56 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated KTY84 / Pt1000 (variant dependent) |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected encoder type, shaft version, holding brake option, connector orientation, and complete Siemens MLFB configuration.
Applications
- CNC Machine Tools
- Industrial Robotics
- Rotary Tables
- Metal Processing Machinery
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Semiconductor Manufacturing
- Automated Production Lines
- High-Precision Motion Control
