Description
Product Description

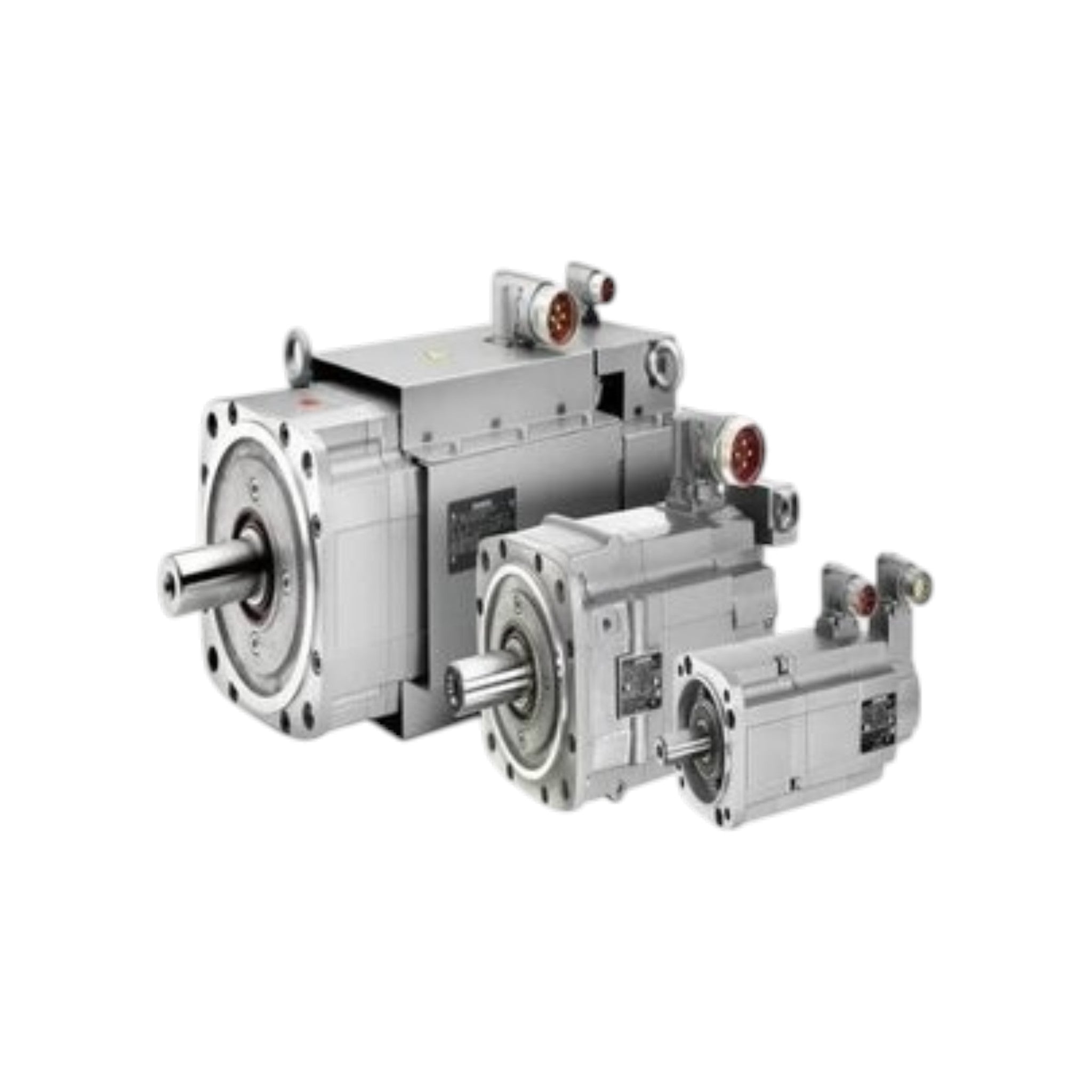

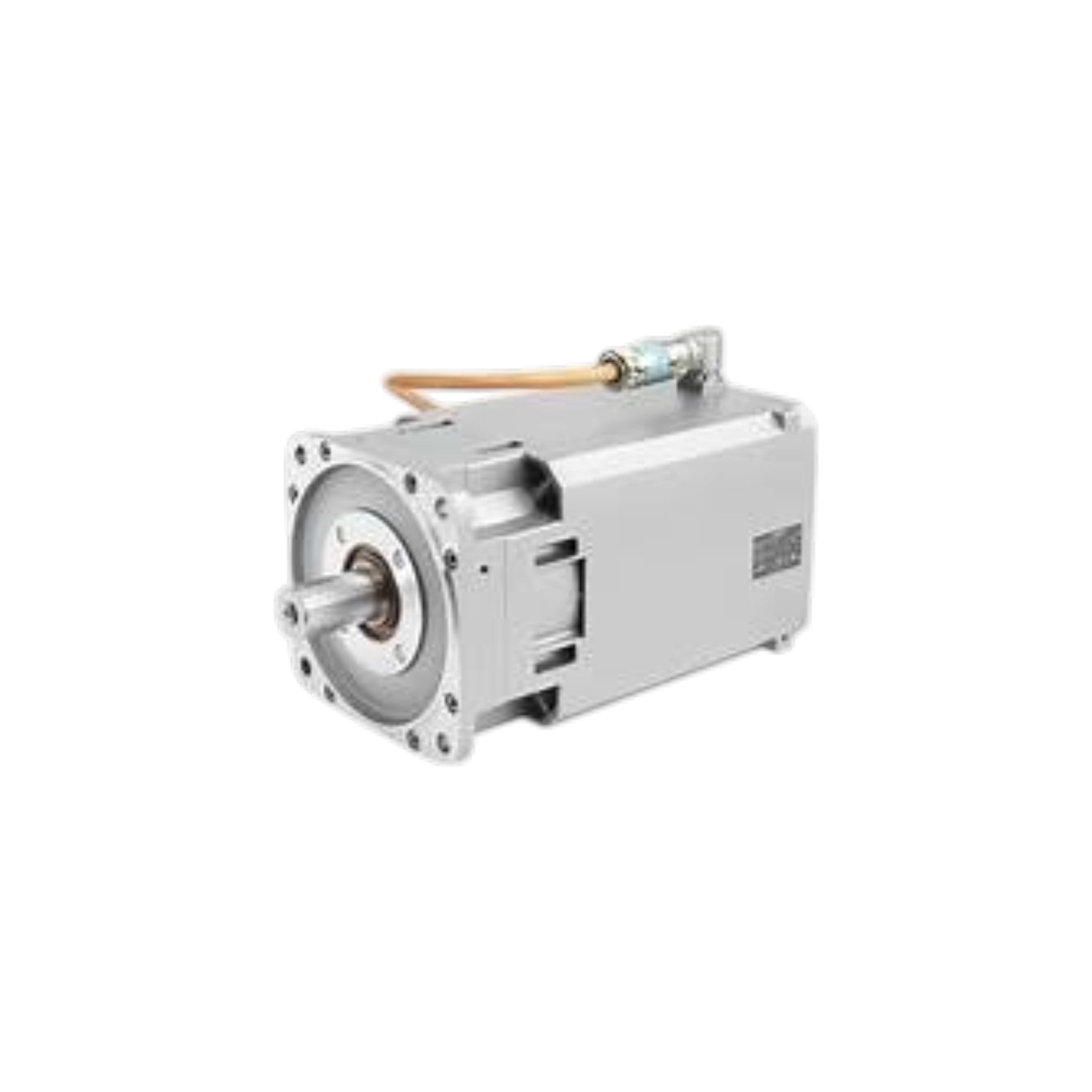

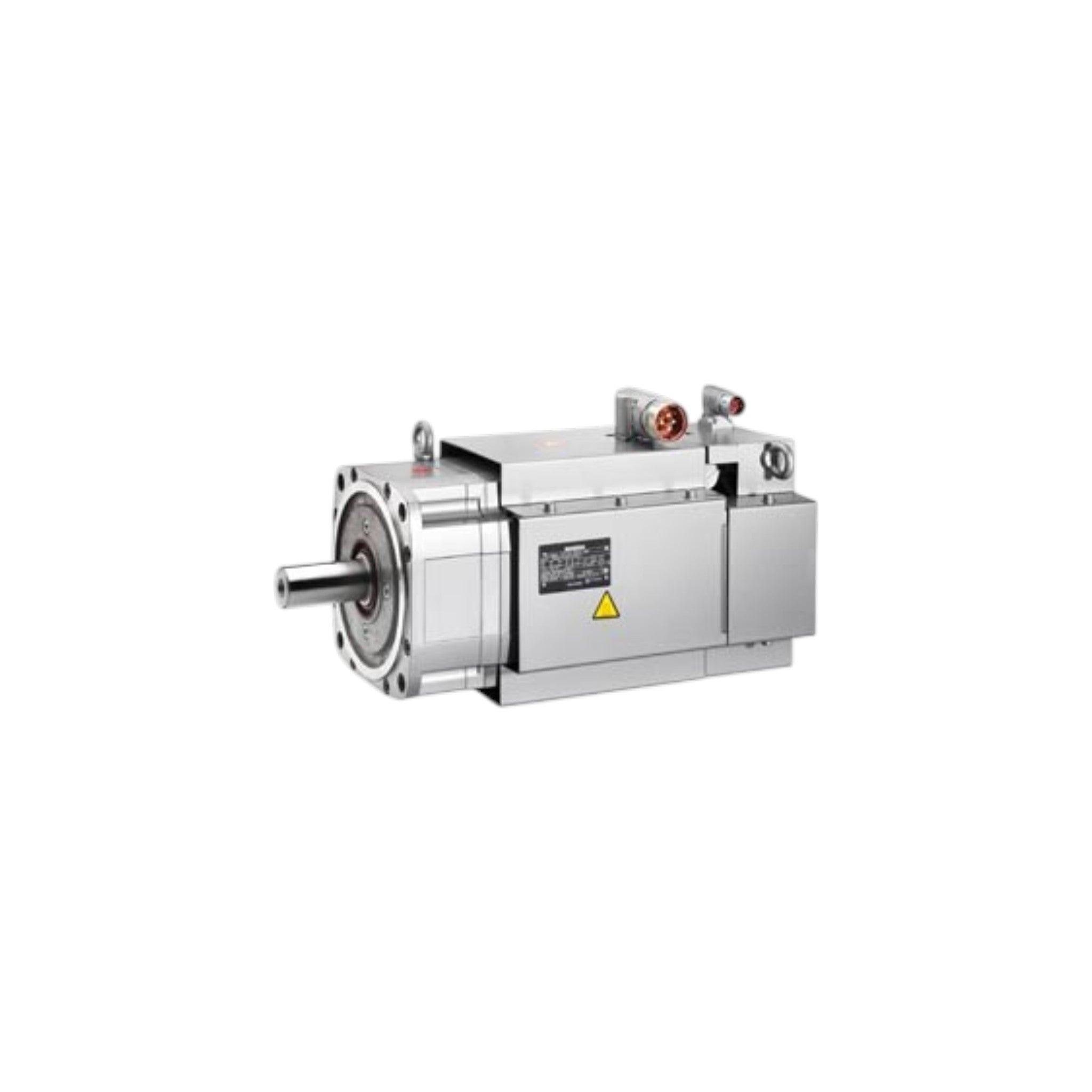

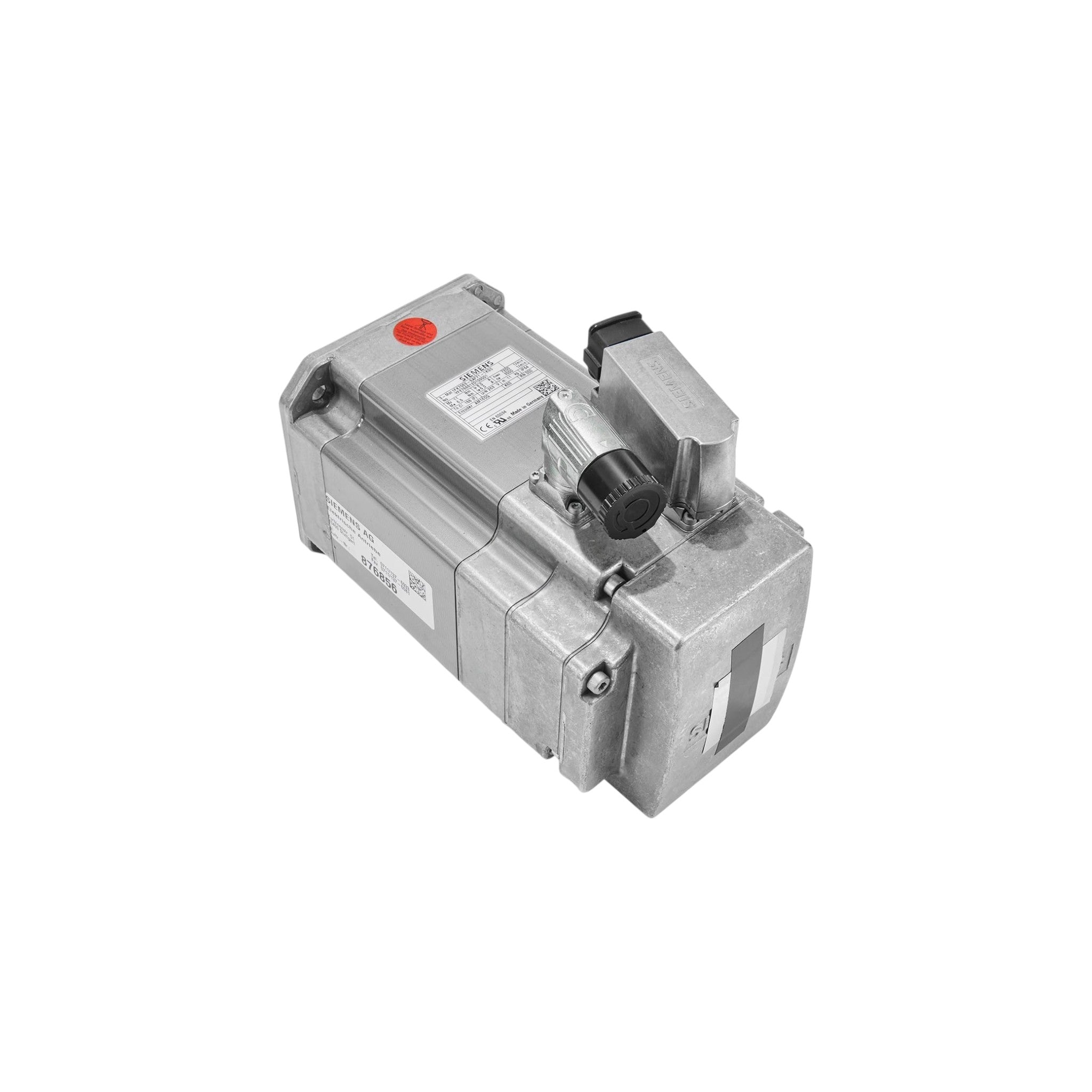

The Siemens 1FT7105-5SF7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for demanding industrial motion control applications requiring high torque, precision positioning, and continuous-duty reliability. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems through the DRIVE-CLiQ interface, this forced-ventilated servo motor delivers exceptional dynamic response, high overload capability, and outstanding energy efficiency for CNC machine tools, industrial robots, rotary tables, packaging machinery, metal processing equipment, and automated production systems.
Operating at a rated speed of 3,000 RPM, the 1FT7105-5SF7X-1XXX delivers an optimum output power of 15.1 kW, 48 Nm rated torque (100 K), and 65 Nm stall torque (100 K). The motor can generate up to 200 Nm maximum torque while supporting a maximum mechanical speed of 6,000 RPM, providing excellent acceleration, high positioning accuracy, and reliable continuous operation under heavy-duty conditions.
The 1FT7105-5SF7X-1XXX family is available in numerous MLFB variants with multiple encoder systems, shaft configurations (plain shaft or fitted key), optional permanent-magnet holding brakes, connector orientations, vibration grades, and protection classes. All variants feature IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication for simplified commissioning and advanced diagnostics.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drive systems
- Forced ventilation cooling
- Optimum output power: 15.1 kW
- Rated speed: 3,000 RPM
- Rated torque: 48 Nm
- Stall torque (100 K): 65 Nm
- Maximum torque: 200 Nm
- Maximum mechanical speed: 6,000 RPM
- Efficiency: 93%
- DRIVE-CLiQ digital encoder interface
- High torque density with excellent dynamic performance
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft versions
- Optional permanent-magnet holding brake
- IM B5 flange mounting
- Integrated Pt1000 temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7105-5SF7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Forced Ventilation |
| Optimum Output Power | 15.1 kW |
| Rated Speed | 3,000 RPM |
| Optimum Speed | 3,000 RPM |
| Rated Torque (100 K) | 48 Nm |
| Rated Current (100 K) | 35 A |
| Stall Torque (60 K) | 51 Nm |
| Stall Torque (100 K) | 65 Nm |
| Stall Current (60 K) | 36 A |
| Stall Current (100 K) | 45 A |
| Maximum Torque | 200 Nm |
| Maximum Current | 158 A |
| Maximum Mechanical Speed | 6,000 RPM |
| Maximum Converter Speed | 6,000 RPM |
| Number of Poles | 10 |
| Efficiency | 93% |
| Torque Constant | 1.43 Nm/A |
| Voltage Constant | 91 V/1000 RPM |
| Winding Resistance | 0.05 Ω |
| Rotating Field Inductance | 1.3 mH |
| Electrical Time Constant | 25 ms |
| Mechanical Time Constant | 1.3 ms |
| Thermal Time Constant | 50 min |
| Rotor Inertia | 178 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 206 × 10⁻⁴ kg·m² |
| Motor Weight | 50 kg |
| Motor Weight (with Brake) | 56 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated Pt1000 Temperature Sensor |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected encoder, shaft version, holding brake, connector orientation, and complete Siemens MLFB ordering code.
Applications
- CNC Machine Tools
- Industrial Robotics
- Rotary Tables
- Metal Processing Machinery
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Semiconductor Manufacturing
- Automated Production Lines
- High-Precision Motion Control
