Product Description

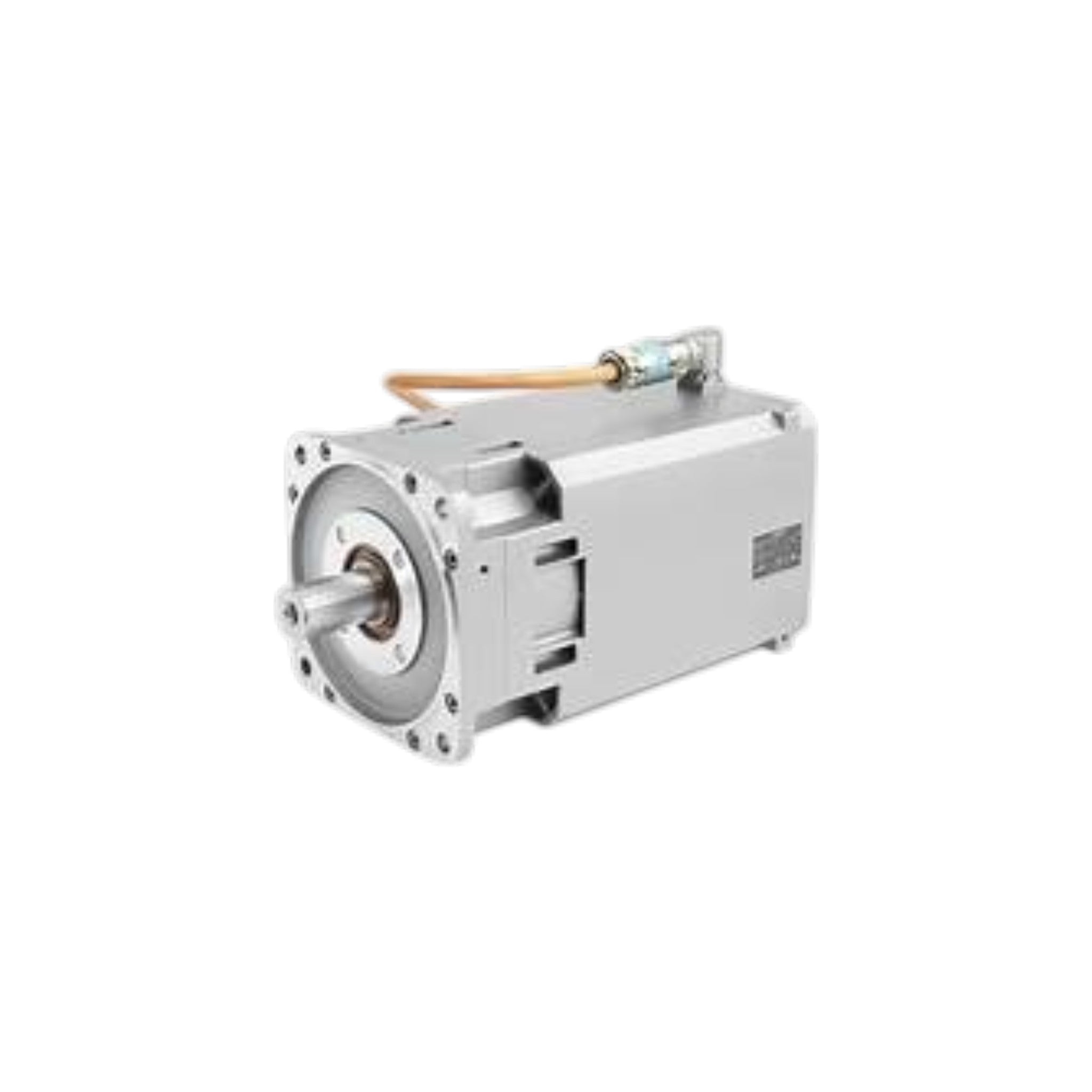

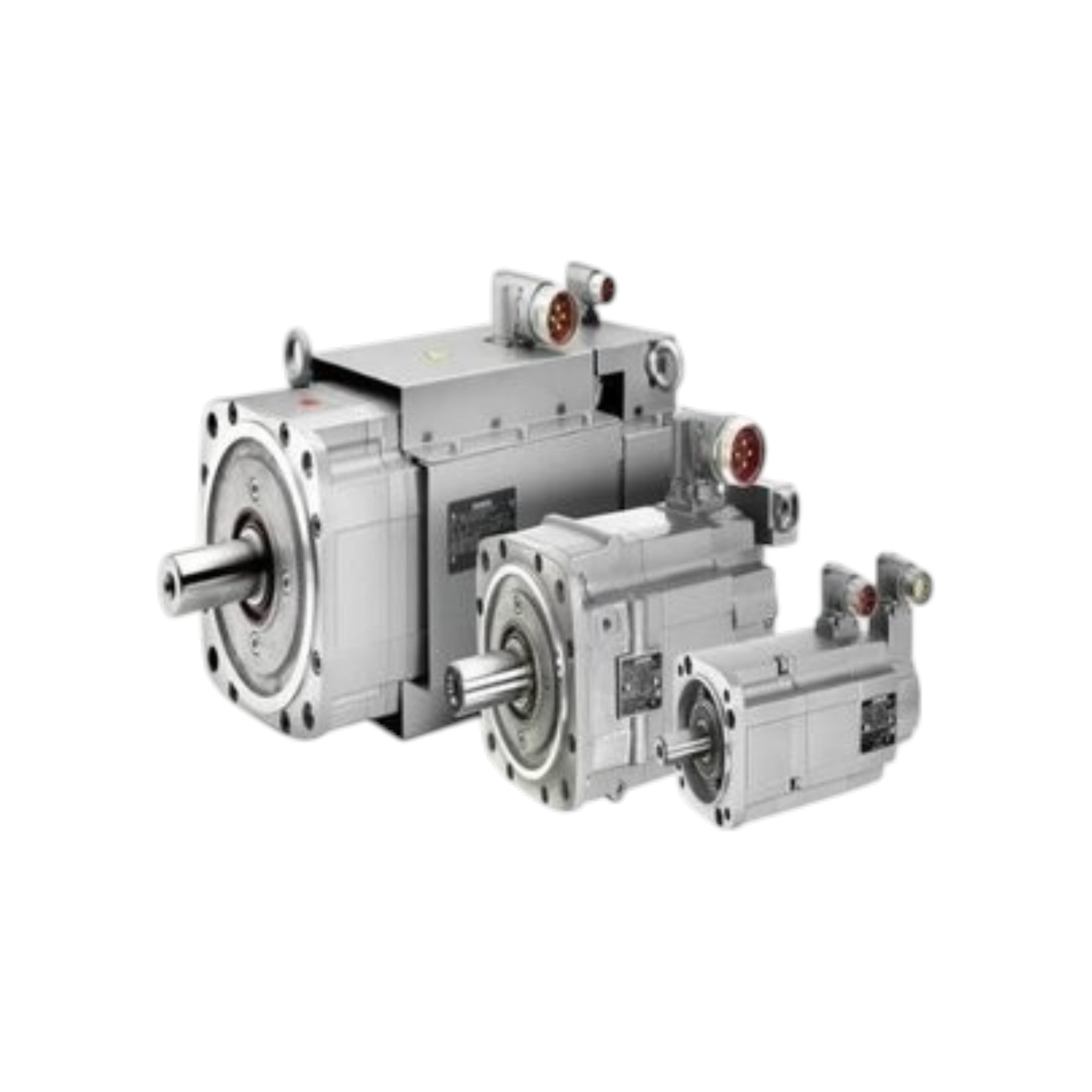

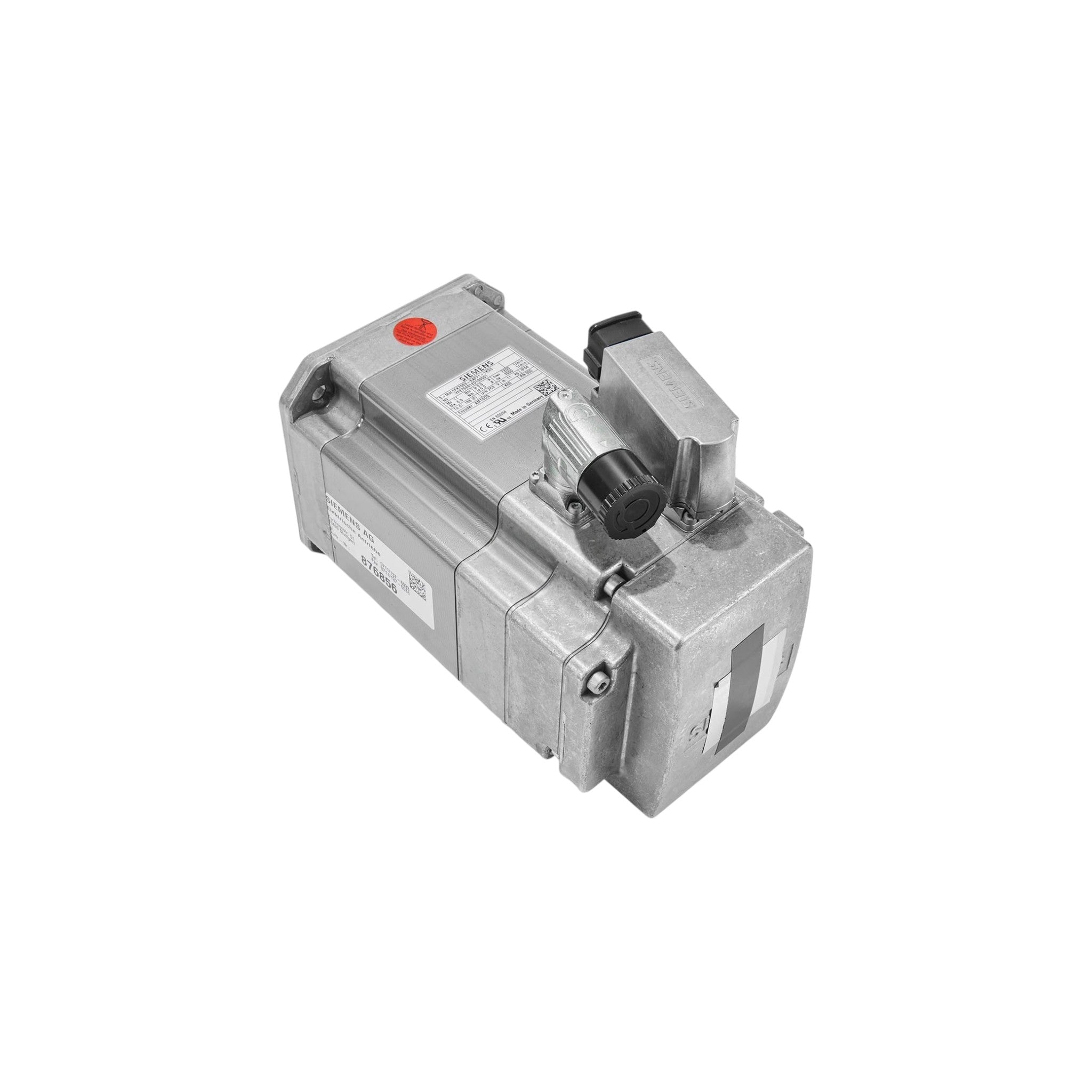

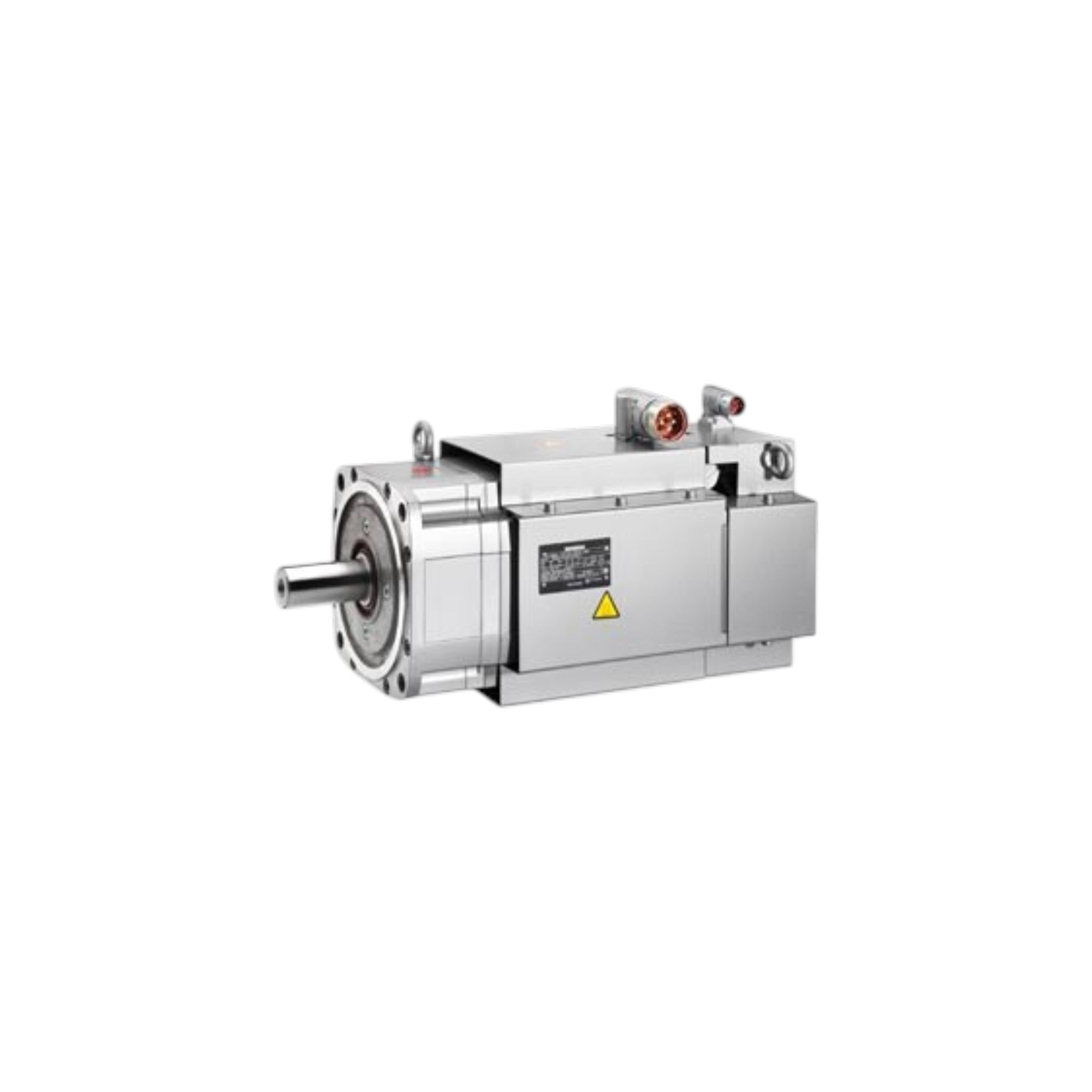

The Siemens 1FT7108-5SC7X-1XXX is a premium SIMOTICS S-1FT7 permanent magnet synchronous servo motor engineered for high-performance industrial motion control applications that demand exceptional torque, precision, and continuous-duty reliability. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems via the DRIVE-CLiQ interface, this forced-ventilated servo motor delivers superior dynamic response, excellent overload capability, and high energy efficiency for CNC machine tools, industrial robotics, rotary tables, metal processing machinery, packaging equipment, and automated production systems.
Operating at a rated speed of 2,000 RPM, the 1FT7108-5SC7X-1XXX provides an optimum output power of 15.3 kW, 73 Nm rated torque (100 K), and 91 Nm stall torque (100 K). The motor is capable of producing up to 280 Nm maximum torque while supporting a maximum mechanical speed of 6,000 RPM, making it ideal for demanding applications requiring rapid acceleration, precise positioning, and continuous high-load operation. Forced ventilation ensures efficient cooling and dependable thermal performance.
The 1FT7108-5SC7X-1XXX family is available in numerous MLFB configurations with multiple encoder systems, shaft options (plain shaft or fitted key), optional permanent-magnet holding brakes, connector orientations, vibration grades, and protection classes. All variants feature IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication for simplified commissioning and advanced diagnostics.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drive systems
- Forced ventilation cooling
- Optimum output power: 15.3 kW
- Rated speed: 2,000 RPM
- Rated torque: 73 Nm
- Stall torque (100 K): 91 Nm
- Maximum torque: 280 Nm
- Maximum mechanical speed: 6,000 RPM
- Efficiency: 93%
- DRIVE-CLiQ digital encoder interface
- High torque density with low rotor inertia
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft versions
- Optional permanent-magnet holding brake
- IM B5 flange mounting
- Integrated Pt1000 temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7108-5SC7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Forced Ventilation |
| Optimum Output Power | 15.3 kW |
| Rated Speed | 2,000 RPM |
| Optimum Speed | 2,000 RPM |
| Rated Torque (100 K) | 73 Nm |
| Stall Torque (100 K) | 91 Nm |
| Stall Torque (60 K) | 74 Nm |
| Maximum Torque | 280 Nm |
| Rated Current | 33 A |
| Stall Current (100 K) | 39 A |
| Stall Current (60 K) | 32 A |
| Maximum Current | 142 A |
| Maximum Mechanical Speed | 6,000 RPM |
| Maximum Converter Speed | 3,900 RPM |
| Rated Converter Current | 45 A |
| Maximum Converter Current | 85 A |
| Maximum Converter Torque | 190 Nm |
| Number of Poles | 10 |
| Efficiency | 93% |
| Torque Constant | 2.32 Nm/A |
| Voltage Constant | 148 V/1000 RPM |
| Winding Resistance | 0.09 Ω |
| Rotating Field Inductance | 2.4 mH |
| Electrical Time Constant | 28 ms |
| Mechanical Time Constant | 1.2 ms |
| Thermal Time Constant | 60 min |
| Rotor Moment of Inertia | 276 × 10⁻⁴ kg·m² |
| Motor Weight | Approx. 64–70 kg (configuration dependent) |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated Pt1000 Temperature Sensor |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected encoder, shaft configuration, brake option, connector orientation, and complete Siemens MLFB configuration.
Applications
- CNC Machine Tools
- Industrial Robotics
- Rotary Tables
- Metal Processing Machinery
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Semiconductor Manufacturing
- Automated Production Lines
- High-Precision Motion Control
