Product Description

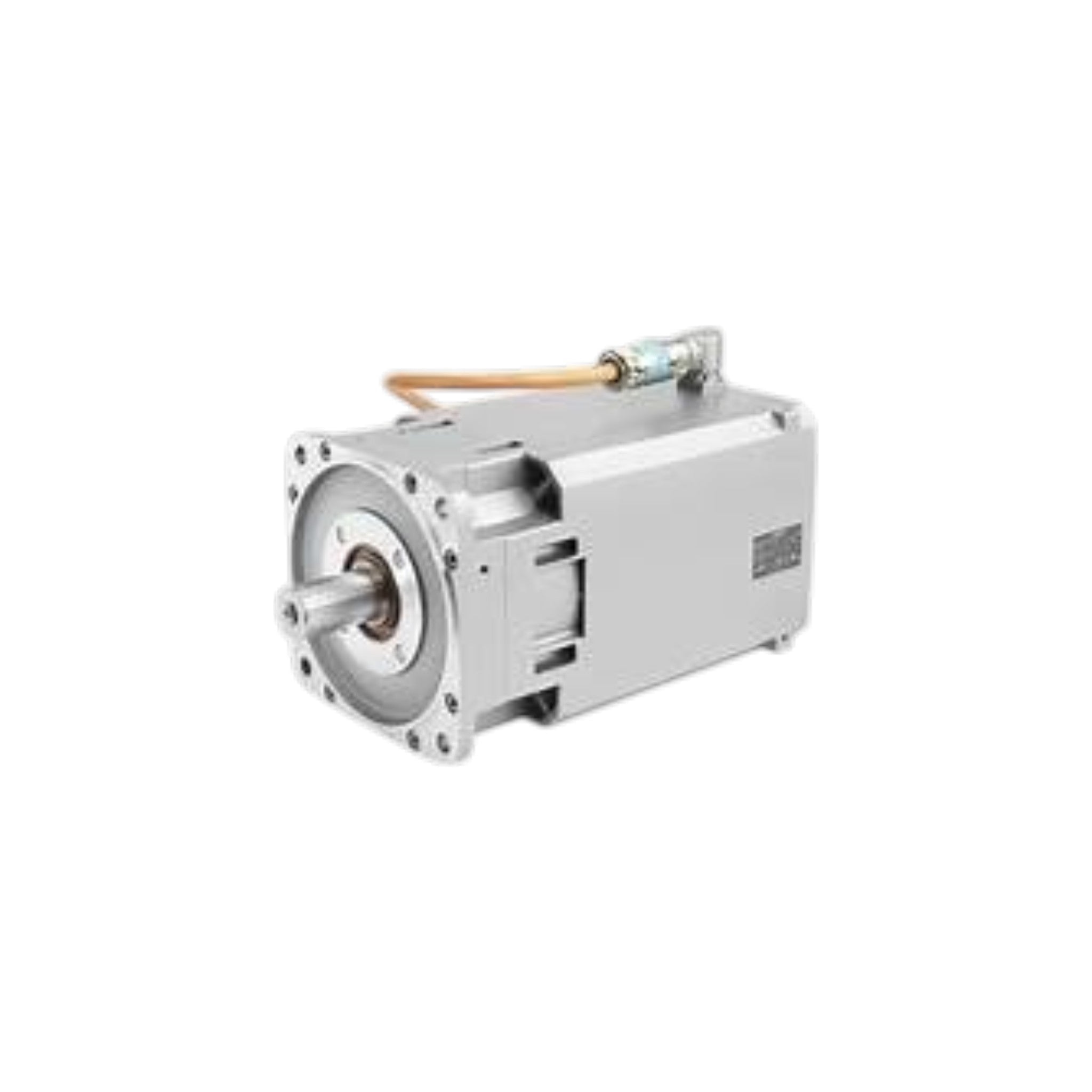

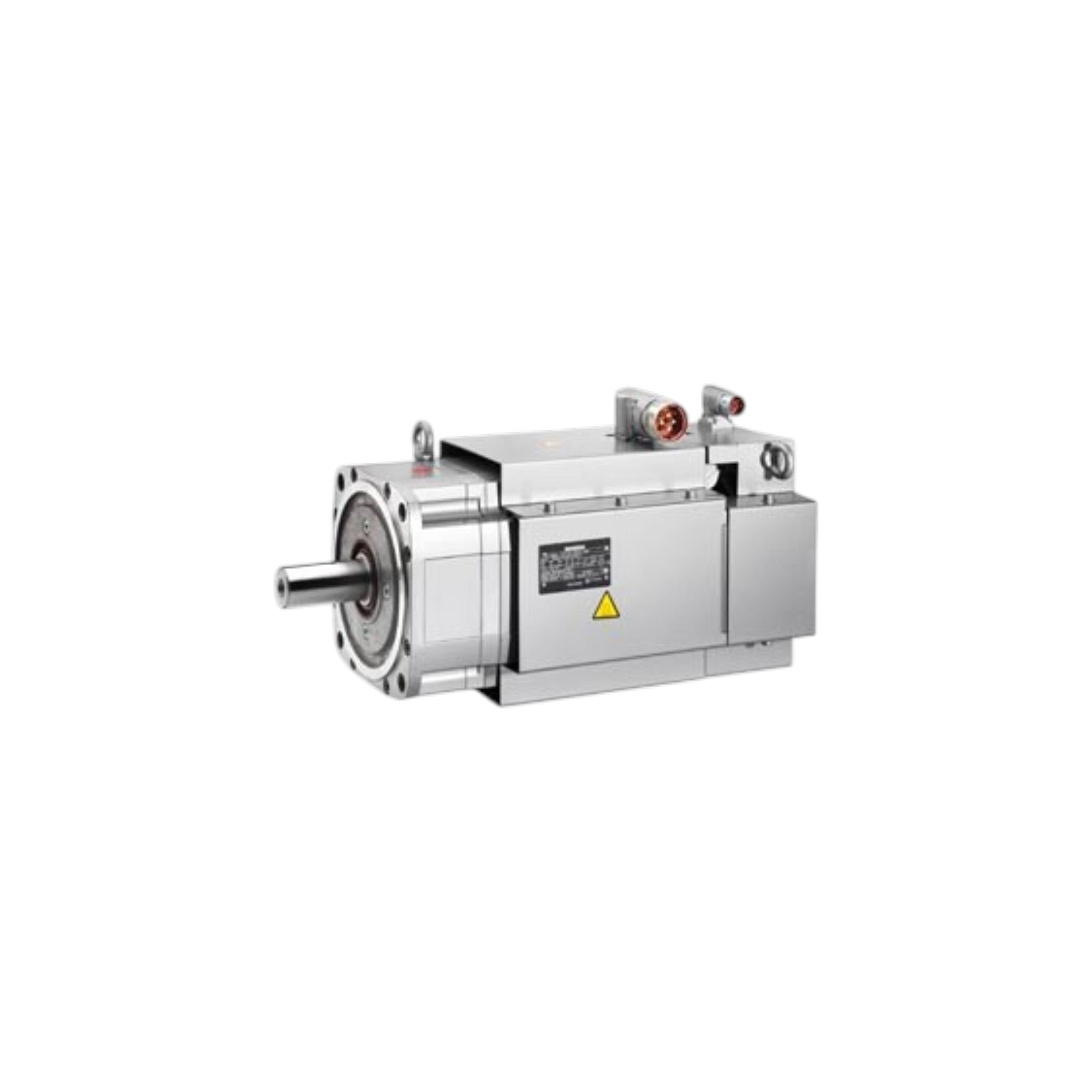

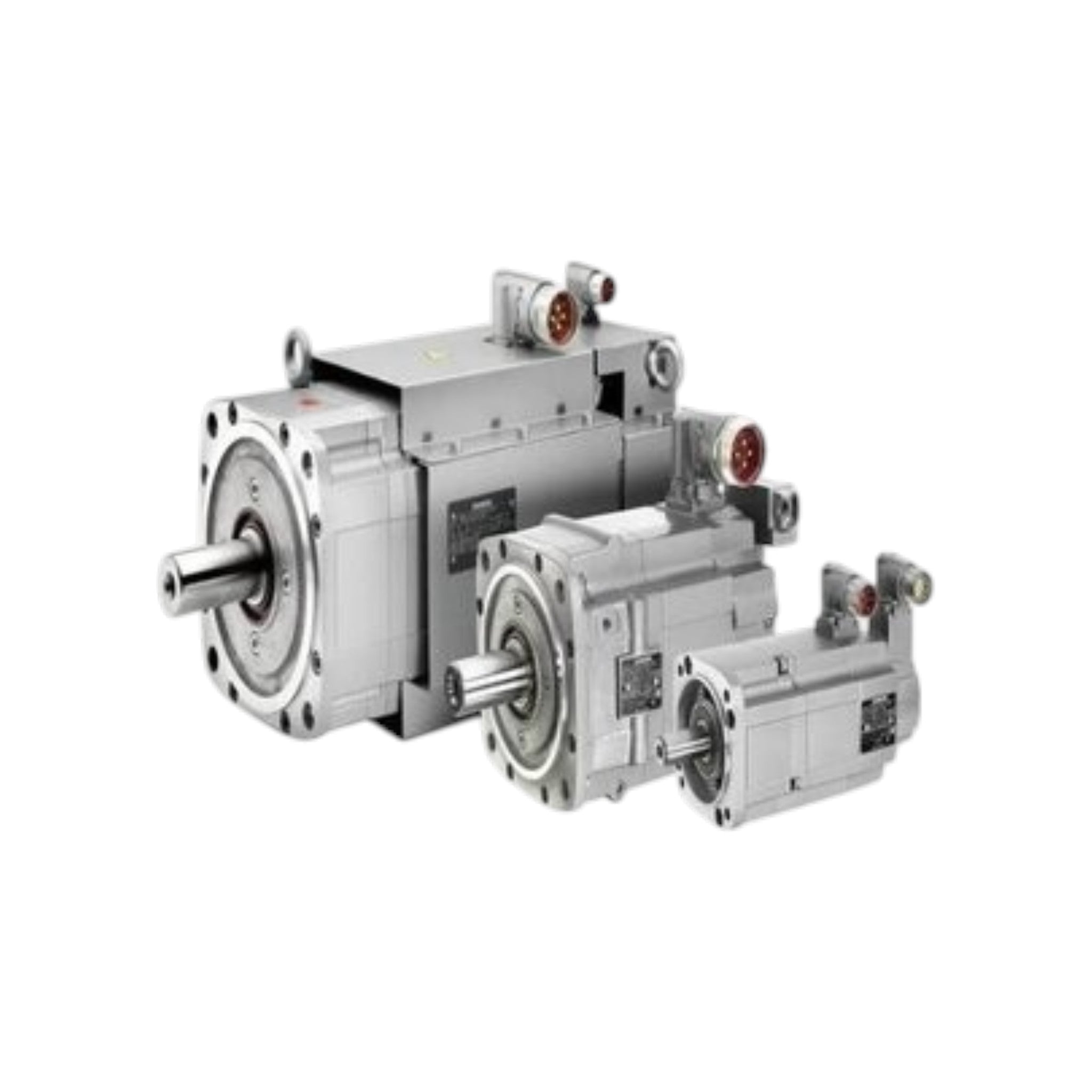

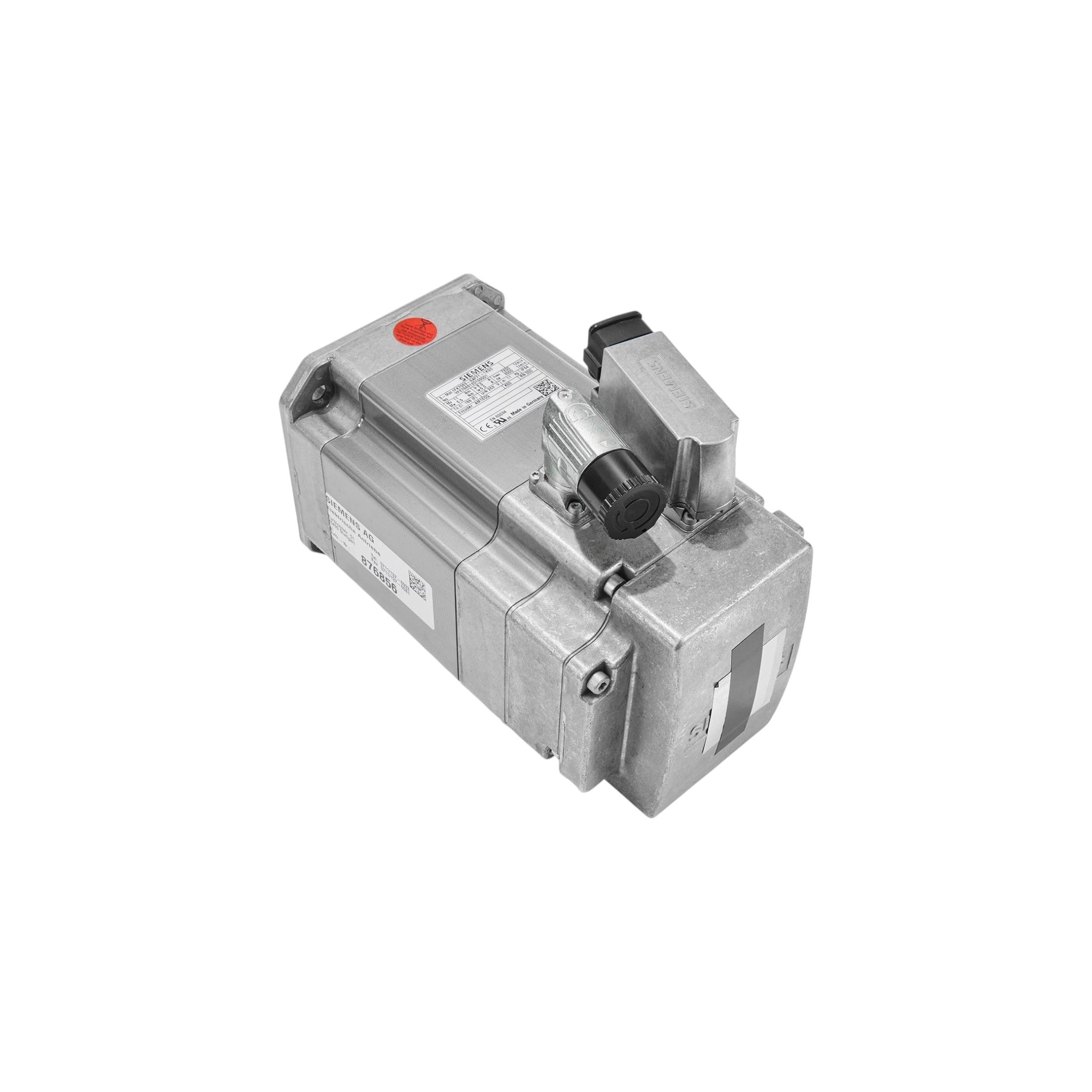

The Siemens 1FT7132-5SB7X-XXXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor engineered for heavy-duty industrial motion control applications requiring high torque, exceptional dynamic response, and precise positioning. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems through the DRIVE-CLiQ interface, this naturally cooled servo motor delivers outstanding efficiency, high overload capability, and long-term reliability for CNC machine tools, robotics, metal processing, packaging machinery, printing systems, and advanced production automation.
With an optimum output power of approximately 18.85 kW at a rated speed of 3,000 RPM, the 1FT7132-5SB7X-XXXX delivers 60 Nm rated torque (100 K), 94 Nm stall torque (100 K), and up to 117 Nm maximum torque. It supports a maximum mechanical speed of 5,000 RPM, providing rapid acceleration, excellent positioning accuracy, and reliable continuous-duty operation. The permanent magnet rotor design ensures high torque density, low inertia, and excellent energy efficiency.
The 1FT7132-5SB7X-XXXX product family includes multiple MLFB variants with different encoder technologies, shaft versions (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and protection classes. All variants feature natural cooling, IM B5 flange mounting, integrated motor temperature monitoring, and DRIVE-CLiQ communication. The exact configuration depends on the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drive systems
- Optimum output power: 18.85 kW
- Rated speed: 3,000 RPM
- Rated torque: 60 Nm
- Stall torque (100 K): 94 Nm
- Maximum torque: 117 Nm
- Maximum mechanical speed: 5,000 RPM
- Natural cooling
- High torque density and excellent overload capability
- DRIVE-CLiQ digital encoder interface
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft versions
- Optional holding brake
- IM B5 flange mounting
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7132-5SB7X-XXXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Optimum Output Power | 18.85 kW |
| Rated Speed | 3,000 RPM |
| Rated Torque (100 K) | 60 Nm |
| Stall Torque (100 K) | 94 Nm |
| Maximum Torque | 117 Nm |
| Maximum Mechanical Speed | 5,000 RPM |
| Cooling | Natural Cooling |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated Temperature Sensor |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected encoder, shaft version, brake option, and complete MLFB configuration.
Applications
- CNC Machine Tools
- Industrial Robotics
- Metal Cutting & Forming Machines
- Packaging Machinery
- Printing Equipment
- Semiconductor Manufacturing
- Heavy Material Handling Systems
- Automated Assembly Lines
- Textile Machinery
- High-Precision Motion Control
