Product Description

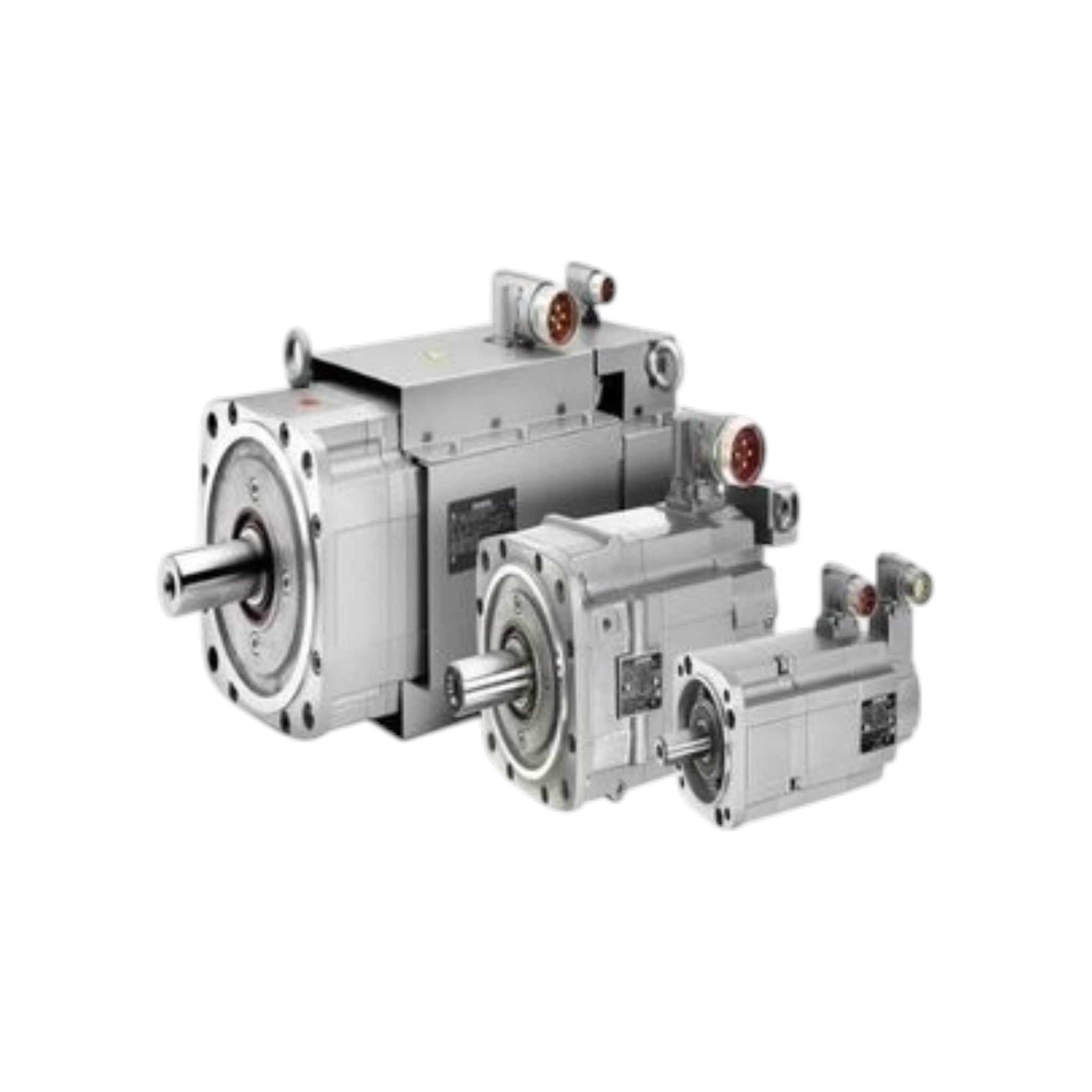

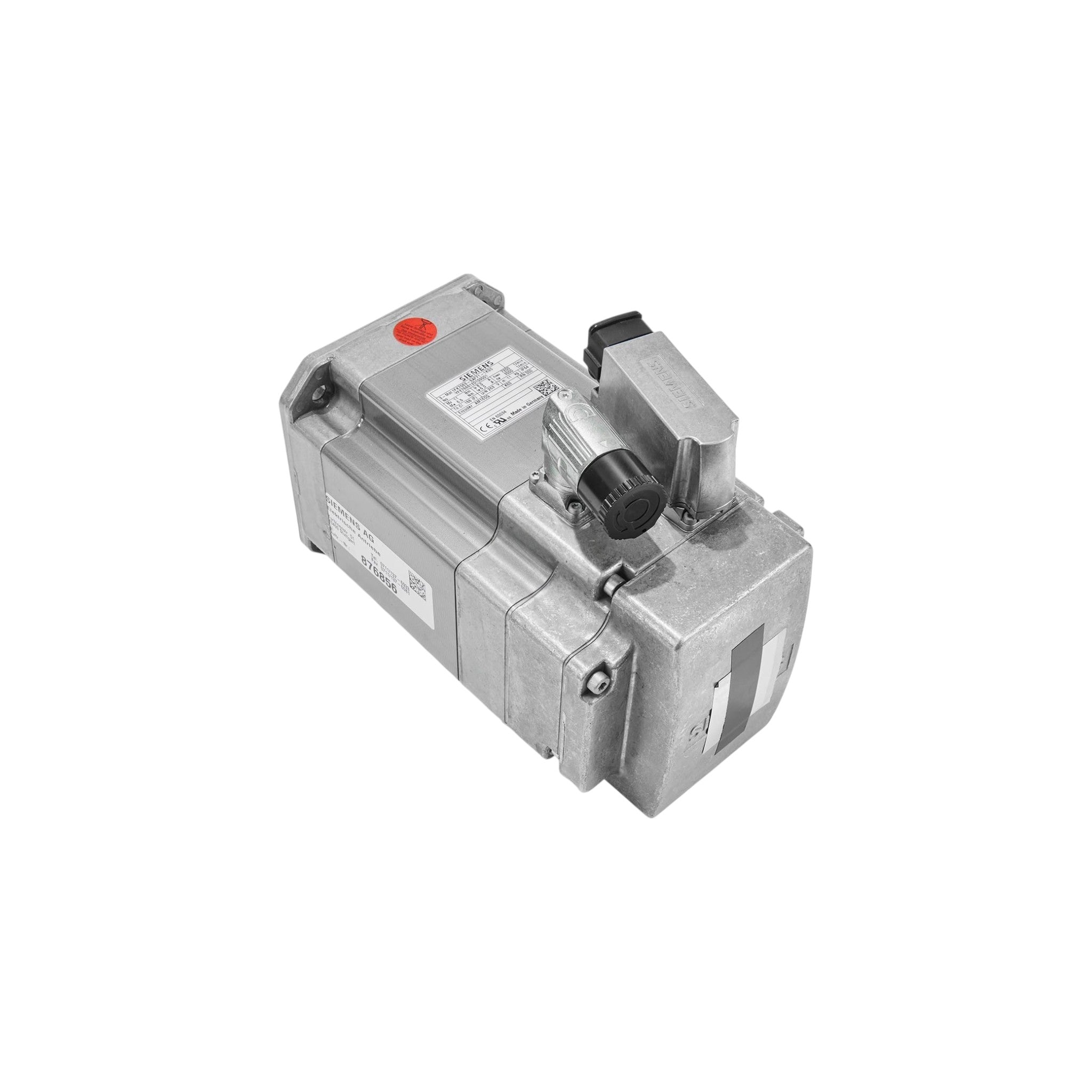

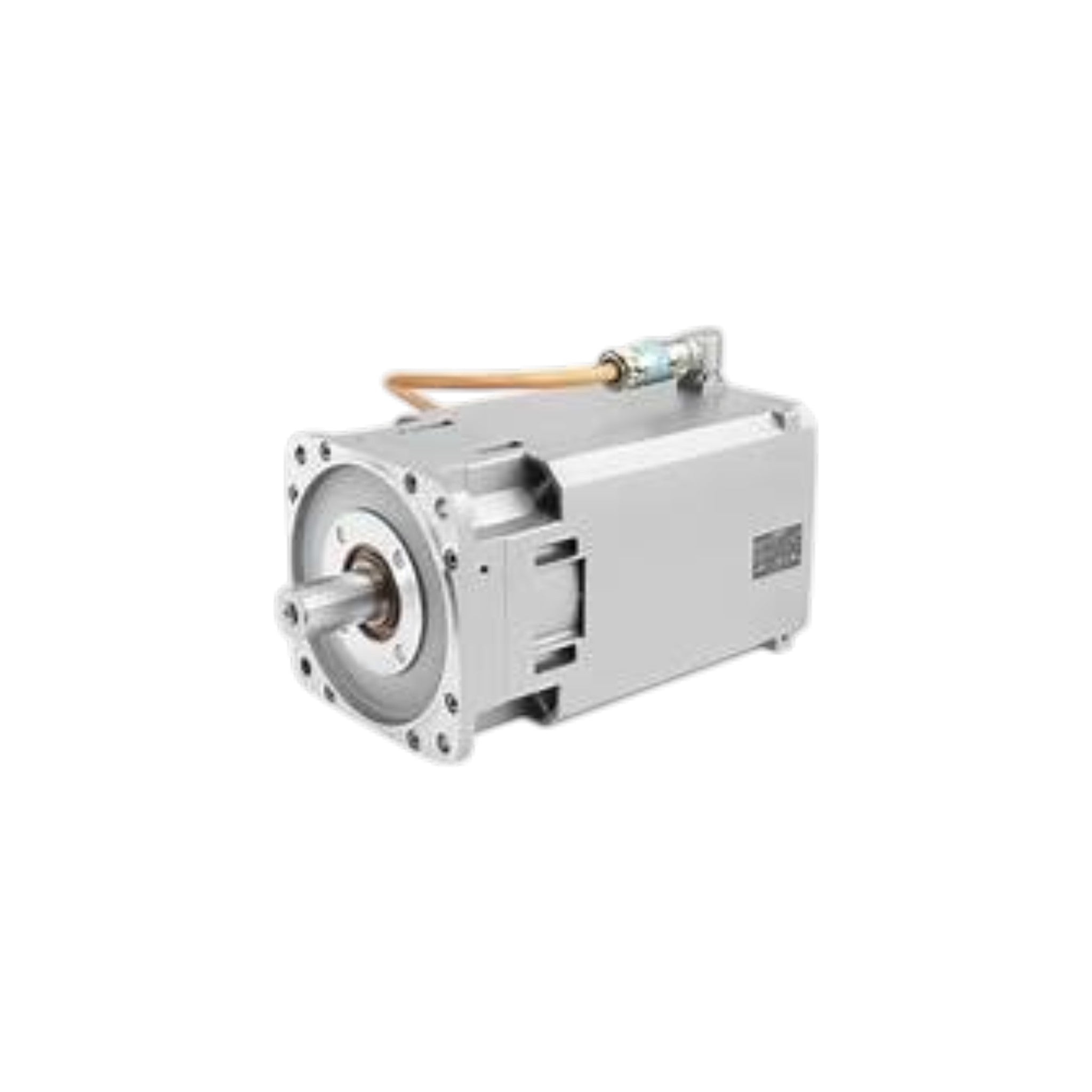

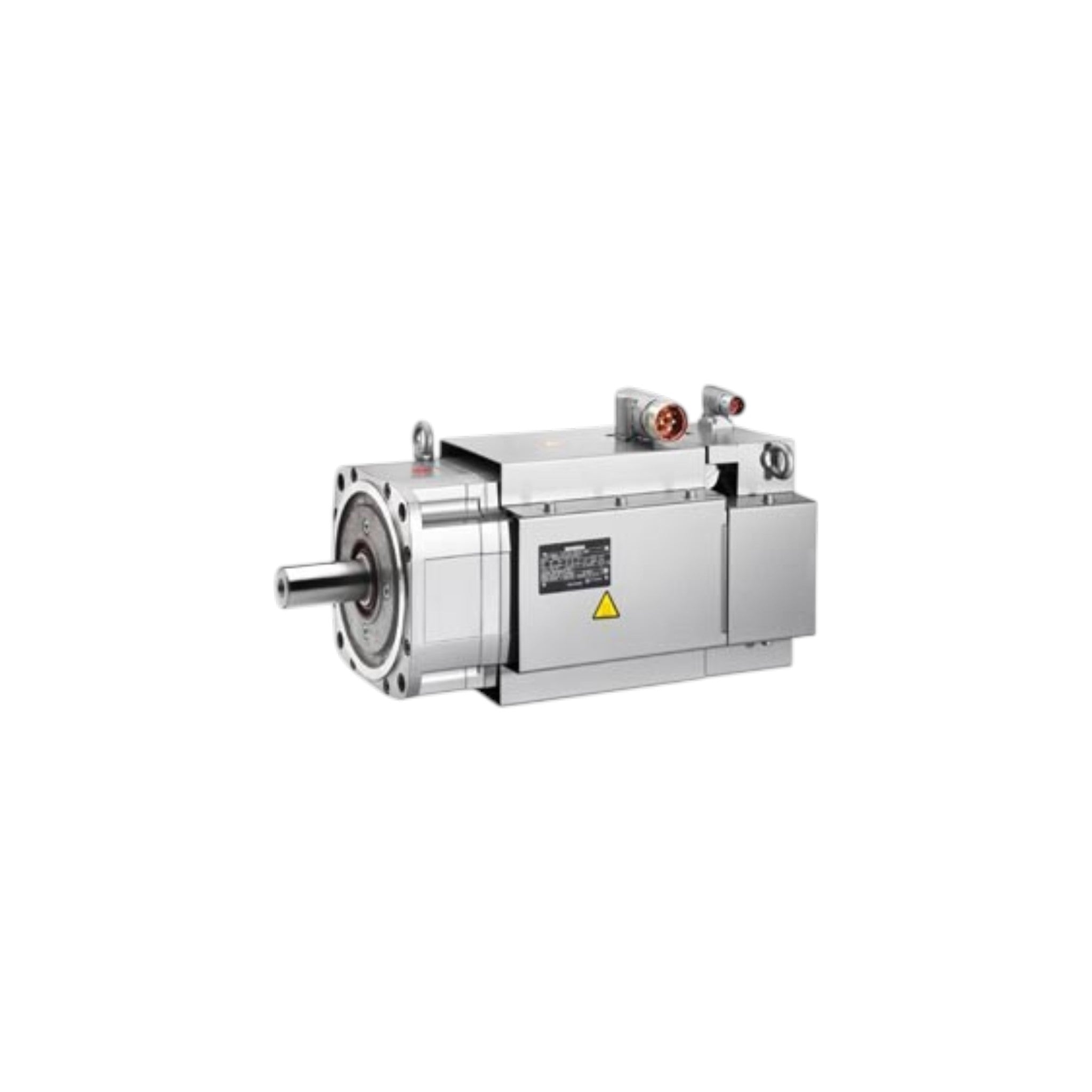

The Siemens 1FT7136-5SB7X-XXXX is a heavy-duty SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for high-torque industrial motion control applications. Engineered for seamless integration with Siemens SINAMICS S120 servo drive systems through the DRIVE-CLiQ interface, this forced-ventilated servo motor delivers exceptional torque density, outstanding overload capability, and precise positioning performance. It is ideal for heavy CNC machine tools, metal cutting and forming machinery, rotary tables, presses, robotics, and other demanding industrial automation systems.
Operating at a rated speed of 1,500 RPM, the 1FT7136-5SB7X-XXXX provides 31.4 kW optimum output power, 200 Nm rated torque (100 K), and 235 Nm stall torque (100 K). The motor can produce up to 510 Nm maximum torque while supporting a maximum mechanical speed of 3,600 RPM, making it suitable for applications requiring extremely high torque, rapid dynamic response, and continuous heavy-duty operation. Forced ventilation ensures reliable thermal performance under sustained high-load conditions.
The 1FT7136-5SB7X-XXXX product family is available in multiple MLFB variants with different encoder systems, shaft configurations (plain shaft or fitted key), optional permanent-magnet holding brakes, connector orientations, vibration grades, and protection classes. All variants include forced ventilation, IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication. The exact configuration is determined by the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drives
- Forced ventilation cooling
- Optimum output power: 31.4 kW
- Rated speed: 1,500 RPM
- Rated torque: 200 Nm
- Stall torque (100 K): 235 Nm
- Maximum torque: 510 Nm
- Maximum mechanical speed: 3,600 RPM
- High efficiency (95%)
- DRIVE-CLiQ digital encoder interface
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft configurations
- Optional permanent-magnet holding brake
- IM B5 flange mounting
- Integrated motor temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7136-5SB7X-XXXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Forced Ventilation |
| Optimum Output Power | 31.4 kW |
| Rated Speed | 1,500 RPM |
| Rated Torque (100 K) | 200 Nm |
| Stall Torque (100 K) | 235 Nm |
| Stall Torque (60 K) | 195 Nm |
| Maximum Torque | 510 Nm |
| Rated Current | 81 A |
| Stall Current (100 K) | 98 A |
| Stall Current (60 K) | 79 A |
| Maximum Current | 245 A |
| Maximum Mechanical Speed | 3,600 RPM |
| Maximum Converter Speed | 3,500 RPM |
| Rated Converter Current | 132 A |
| Maximum Converter Current | 210 A |
| Maximum Converter Torque | 455 Nm |
| Number of Poles | 8 |
| Efficiency | 95% |
| Torque Constant | 2.40 Nm/A |
| Voltage Constant | 159 V/1000 RPM |
| Winding Resistance | 0.04 Ω |
| Rotating Field Inductance | 1.4 mH |
| Electrical Time Constant | 35 ms |
| Mechanical Time Constant | 1.2 ms |
| Thermal Time Constant | 90 min |
| Rotor Inertia | 801 × 10⁻⁴ kg·m² |
| Motor Weight | Approximately 114 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated Temperature Sensor |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected encoder, shaft configuration, brake option, and complete MLFB ordering code.
Applications
- Heavy CNC Machine Tools
- Metal Cutting & Forming Machinery
- Press Automation
- Industrial Robotics
- Rotary Tables
- Heavy Material Handling Systems
- Packaging Machinery
- Printing Equipment
- Steel Processing Machinery
- High-Torque Precision Motion Control
