Description
Product Description

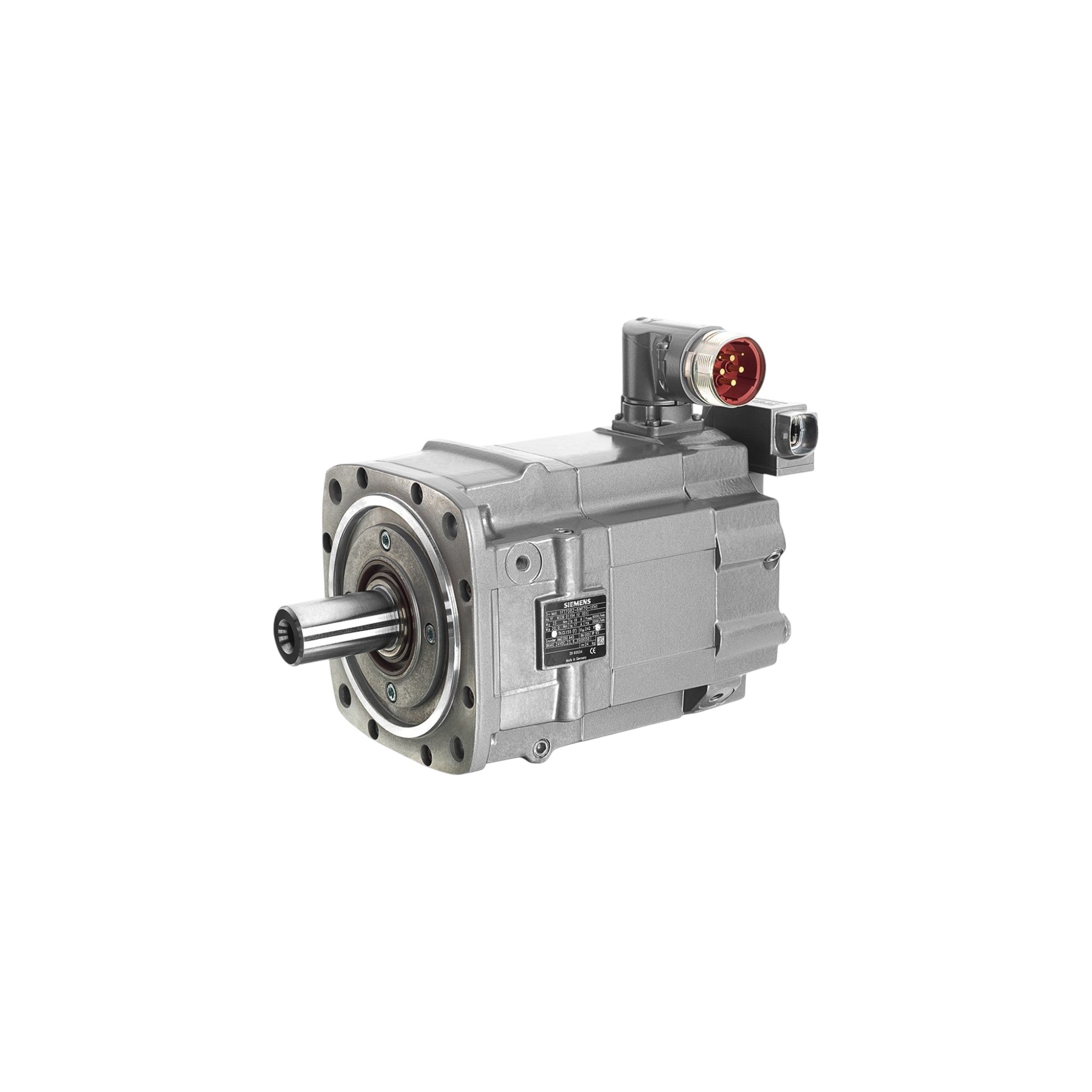

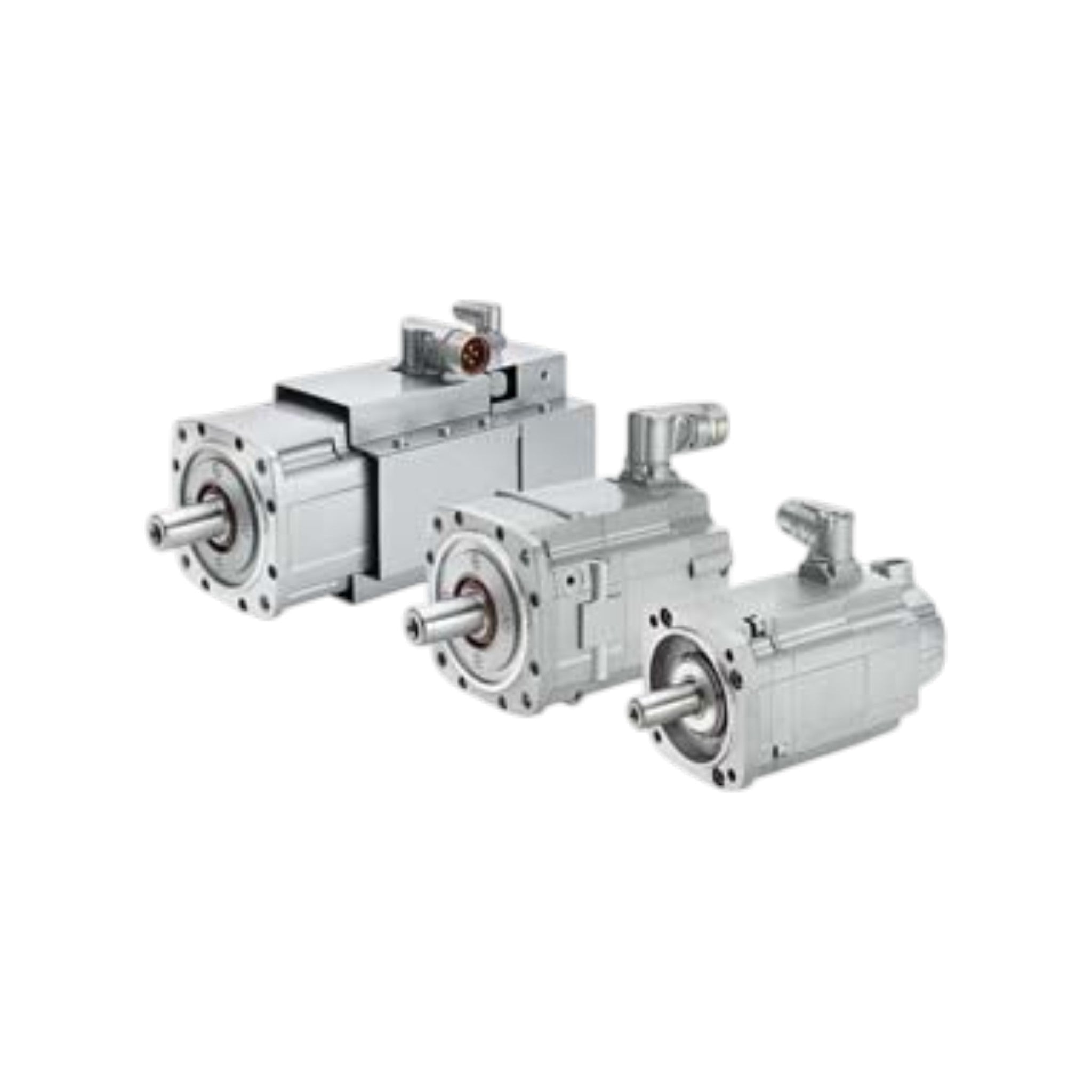

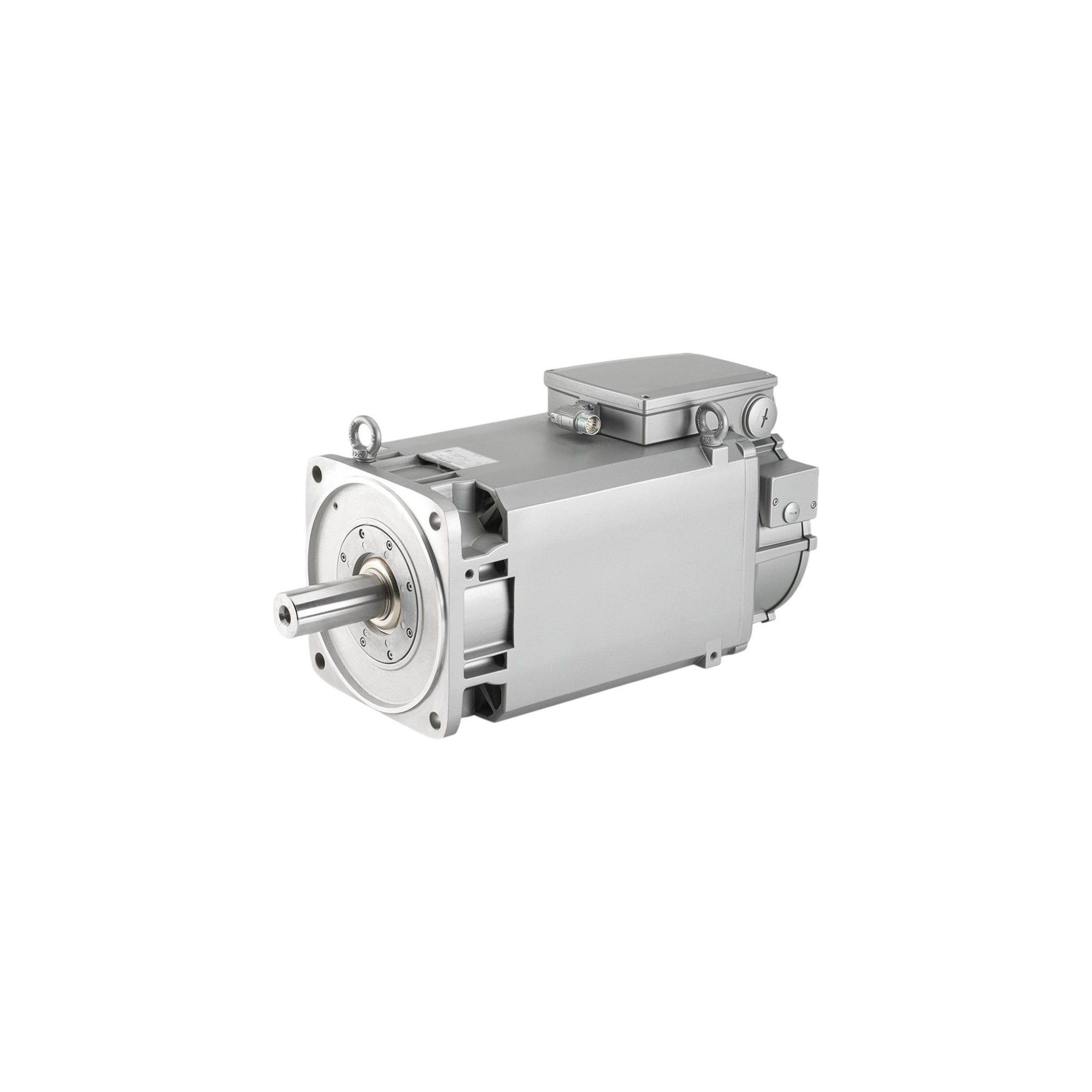

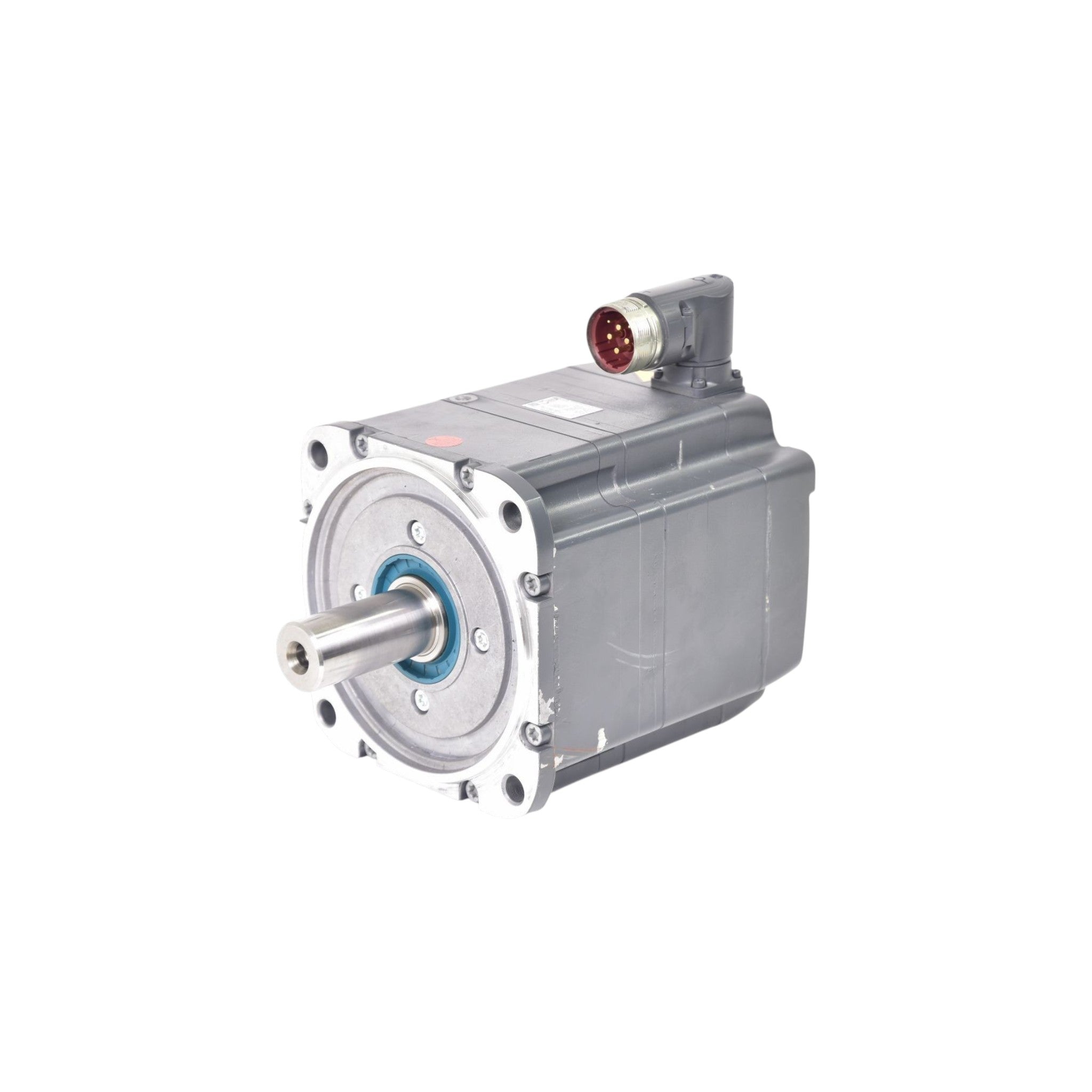

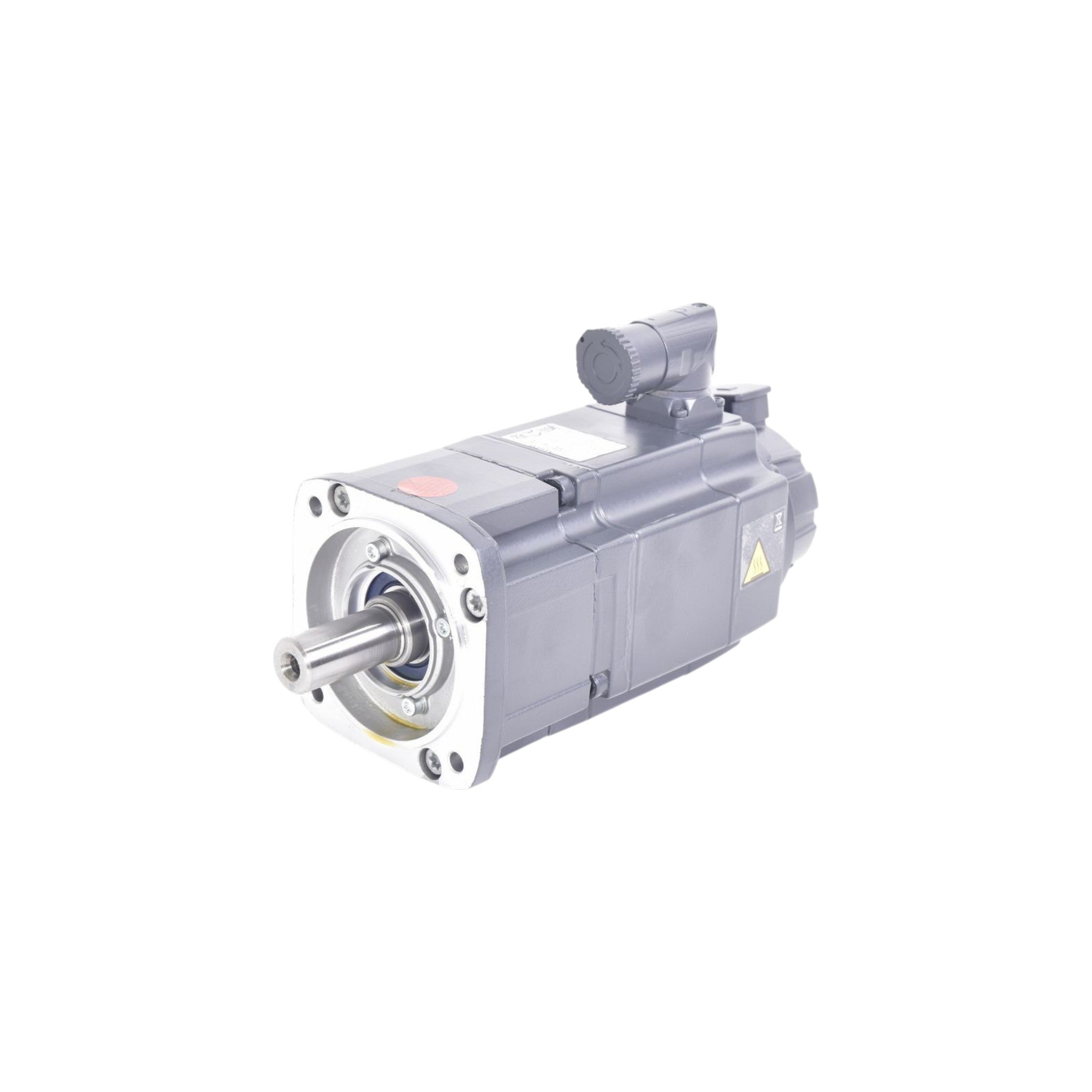

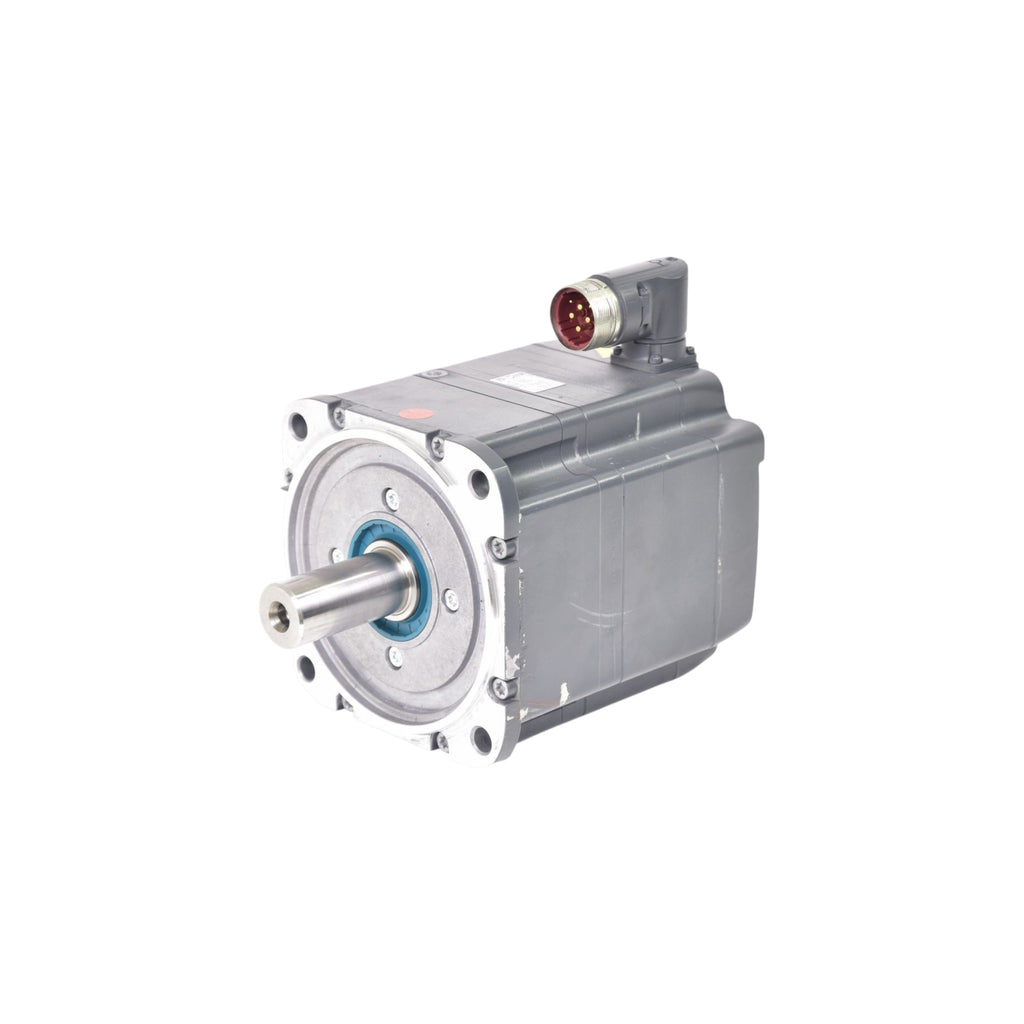

The Siemens 1FT7065-7WH7X-1XXX is a SIMOTICS S 1FT7 High Dynamic synchronous servo motor engineered for precision motion control in demanding industrial automation applications. Designed for seamless integration with SINAMICS S120 drive systems, this permanent magnet servo motor provides high torque density, exceptional dynamic response, and accurate positioning for CNC machinery, robotics, packaging equipment, and automated production systems.
The 7WH7 variant features water cooling, allowing higher continuous torque and improved thermal performance compared to standard cooling versions. The configurable suffix (1XXX) represents factory-selected options such as encoder type, shaft configuration, electrical connection, and optional holding brake. According to Siemens' configuration data, the 1FT7065-7WH7 version provides 19 Nm stall torque (100 K) with a recommended 24 A SINAMICS S120 Motor Module, making it ideal for high-performance continuous-duty applications.
Key Features
- Siemens SIMOTICS S 1FT7 High Dynamic servo motor
- Model: 1FT7065-7WH7X-1XXX
- Permanent magnet synchronous motor
- Water-cooled design for enhanced continuous performance
- High torque density with compact construction
- Stall torque: 19 Nm (100 K)
- High-precision encoder options (configuration dependent)
- Smooth, accurate speed and position control
- Compatible with Siemens SINAMICS S120 drive systems
- Designed for demanding industrial automation environments
Applications
- CNC machine tools
- Industrial robotics
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Textile machinery
- Assembly automation
- Precision manufacturing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMOTICS S 1FT7 High Dynamic |
| Model Number | 1FT7065-7WH7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Water Cooled |
| Stall Torque (100 K) | 19 Nm |
| Stall Current (100 K) | 22 A |
| Recommended Drive | Siemens SINAMICS S120 |
| Recommended Motor Module | 24 A |
| Mounting | IM B5 Flange Mount |
| Encoder | Configuration Dependent |
| Holding Brake | Optional (Configuration Dependent) |
| Degree of Protection | Configuration Dependent (typically IP64/IP67) |
