Product Description

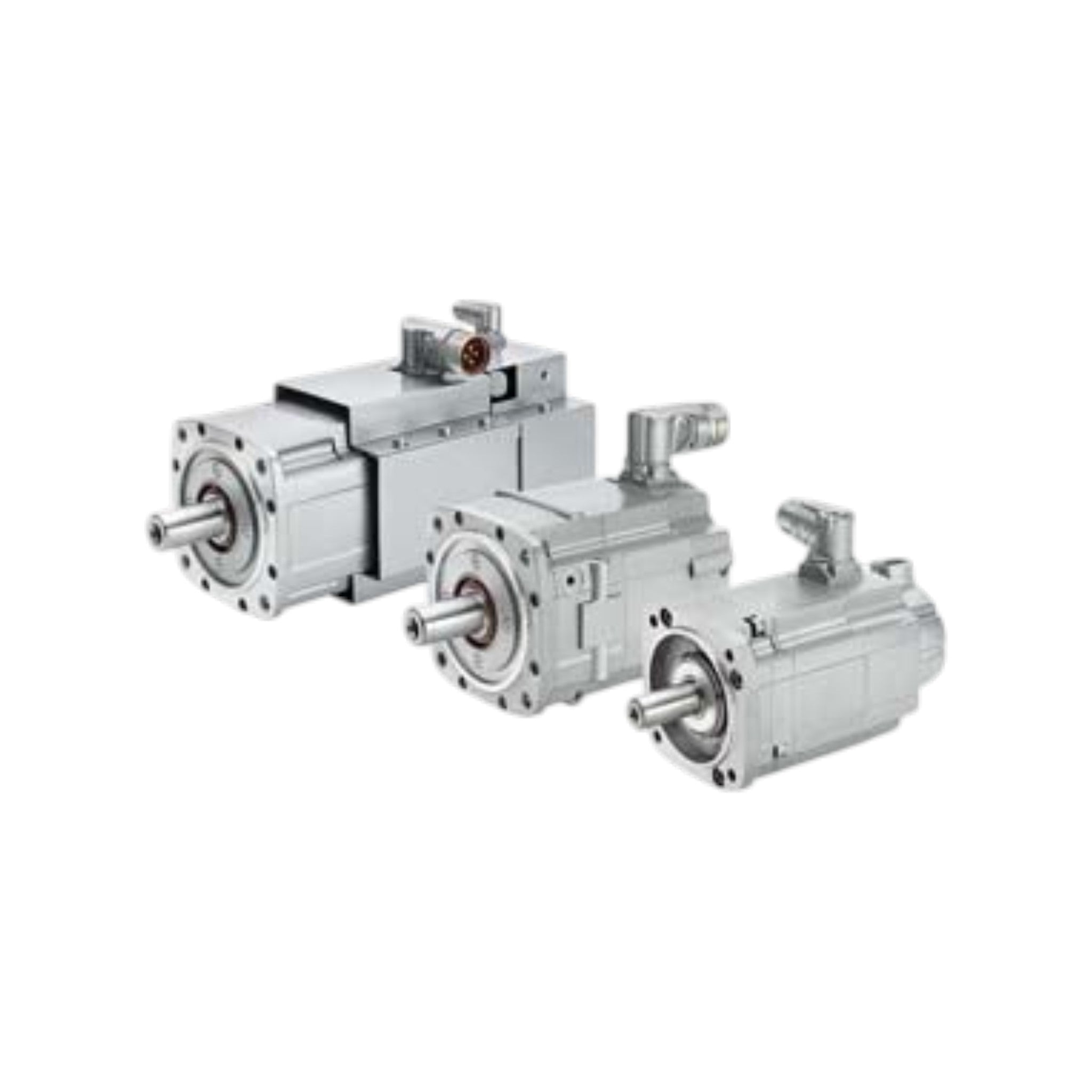

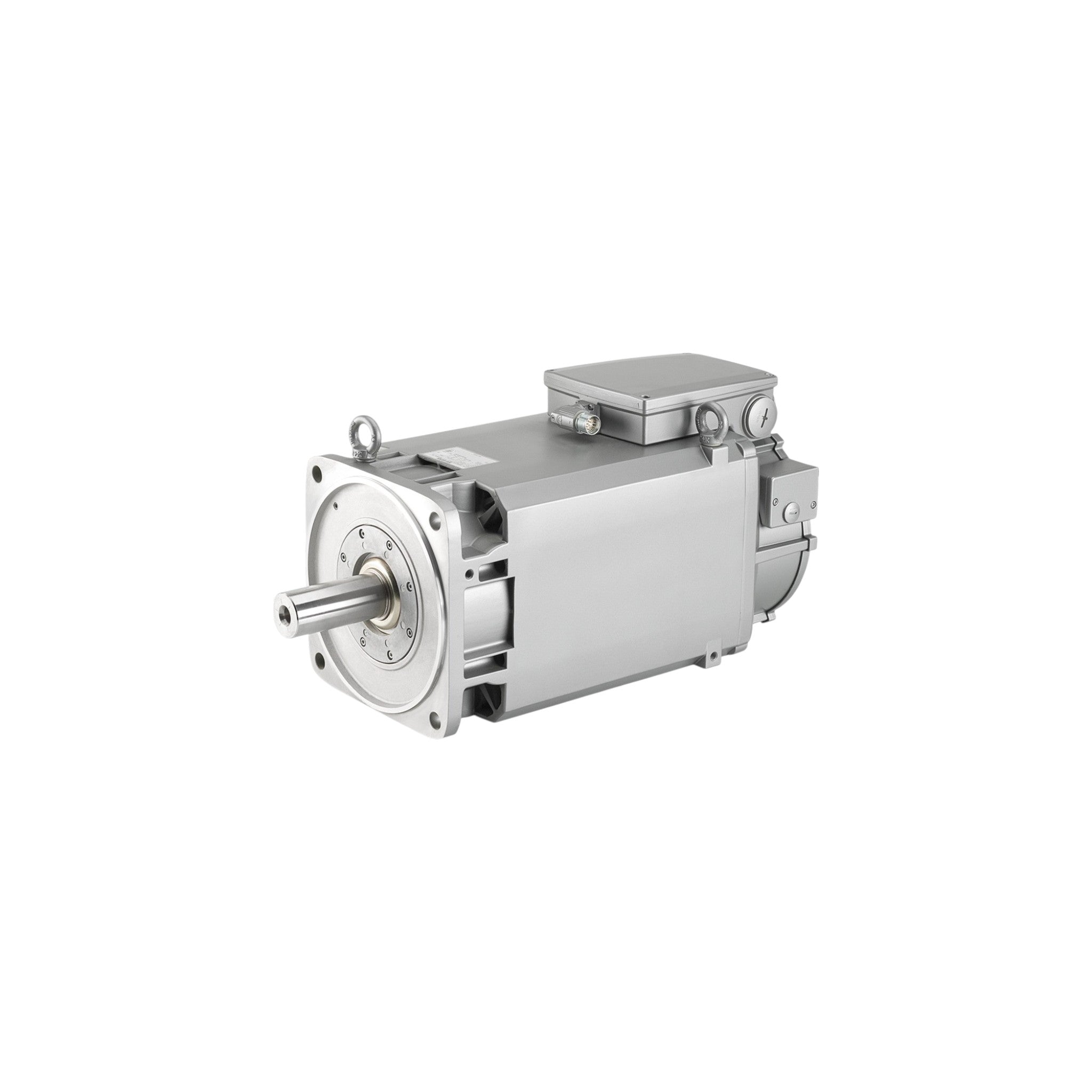

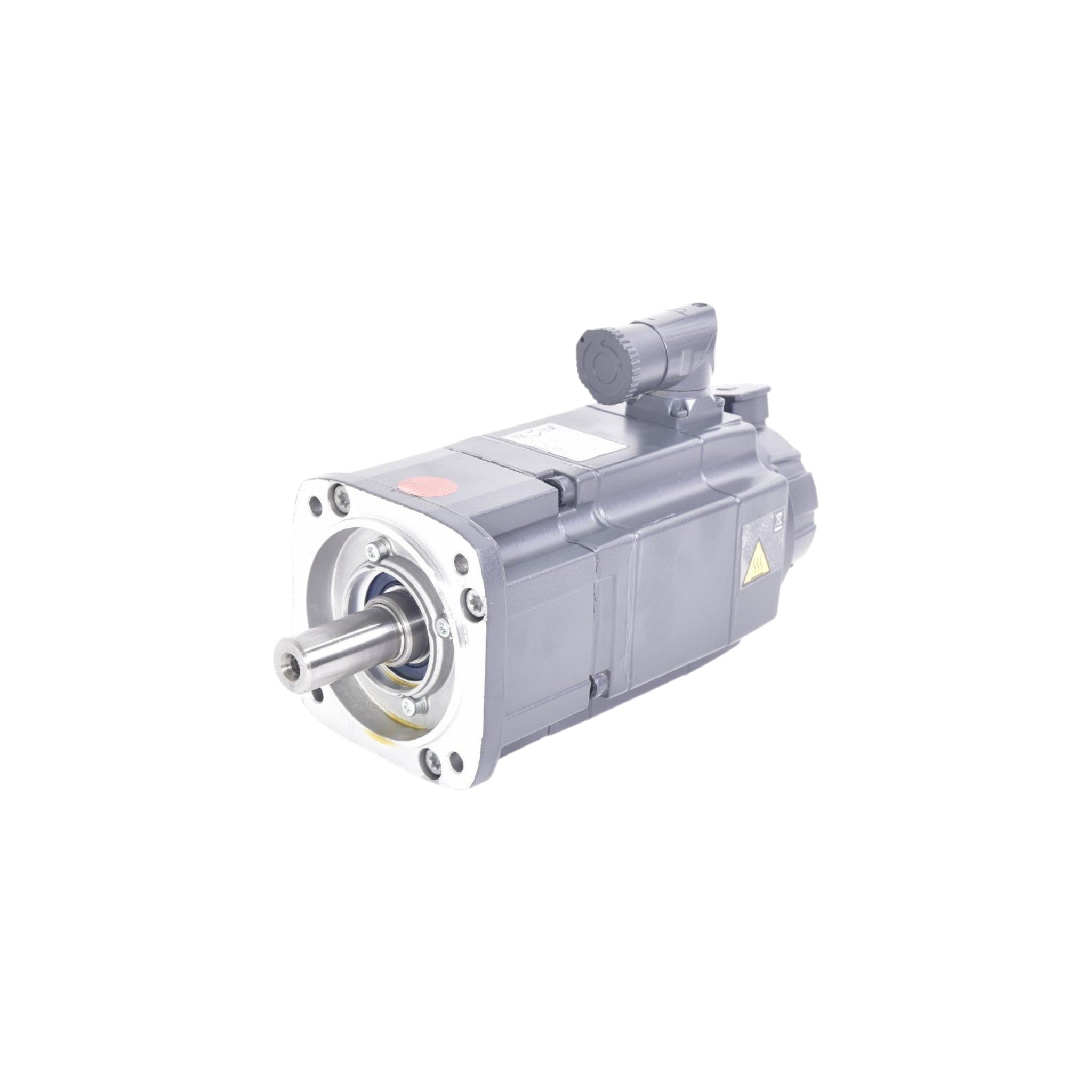

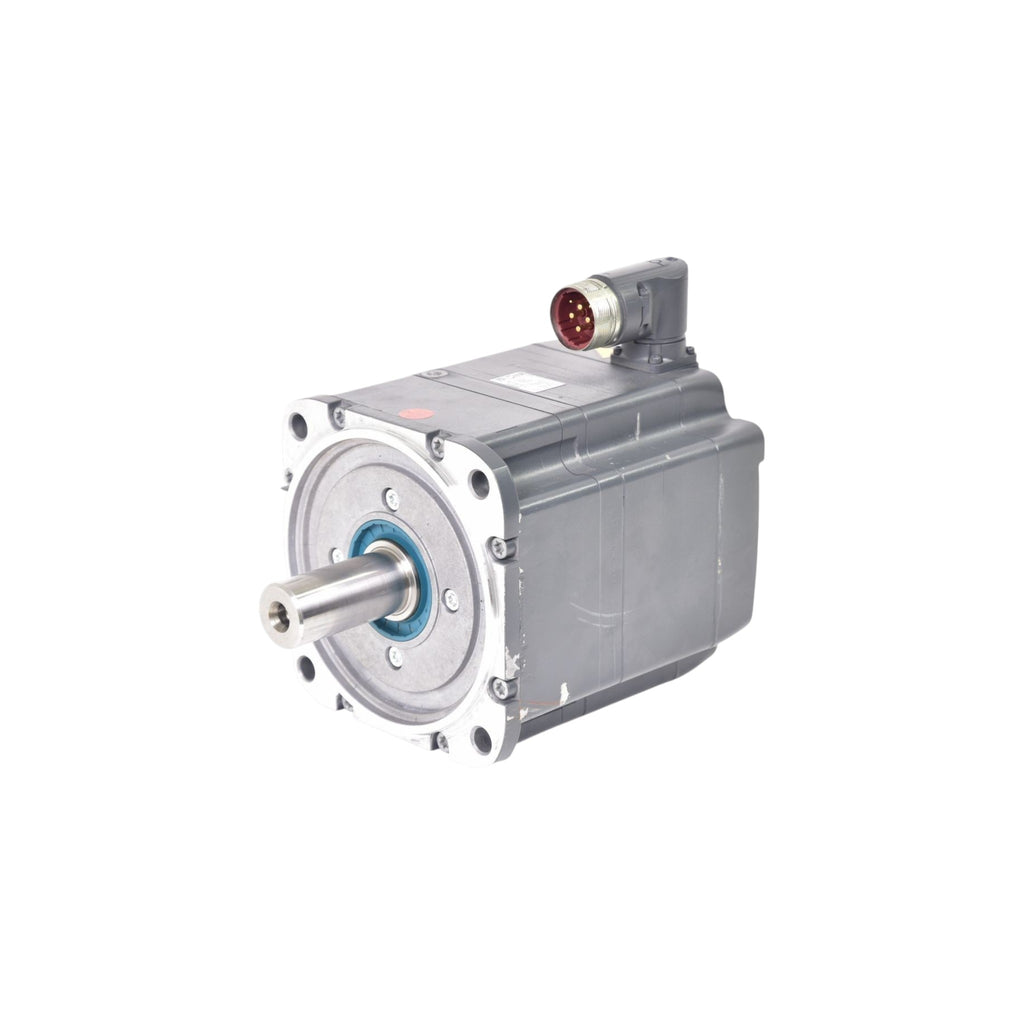

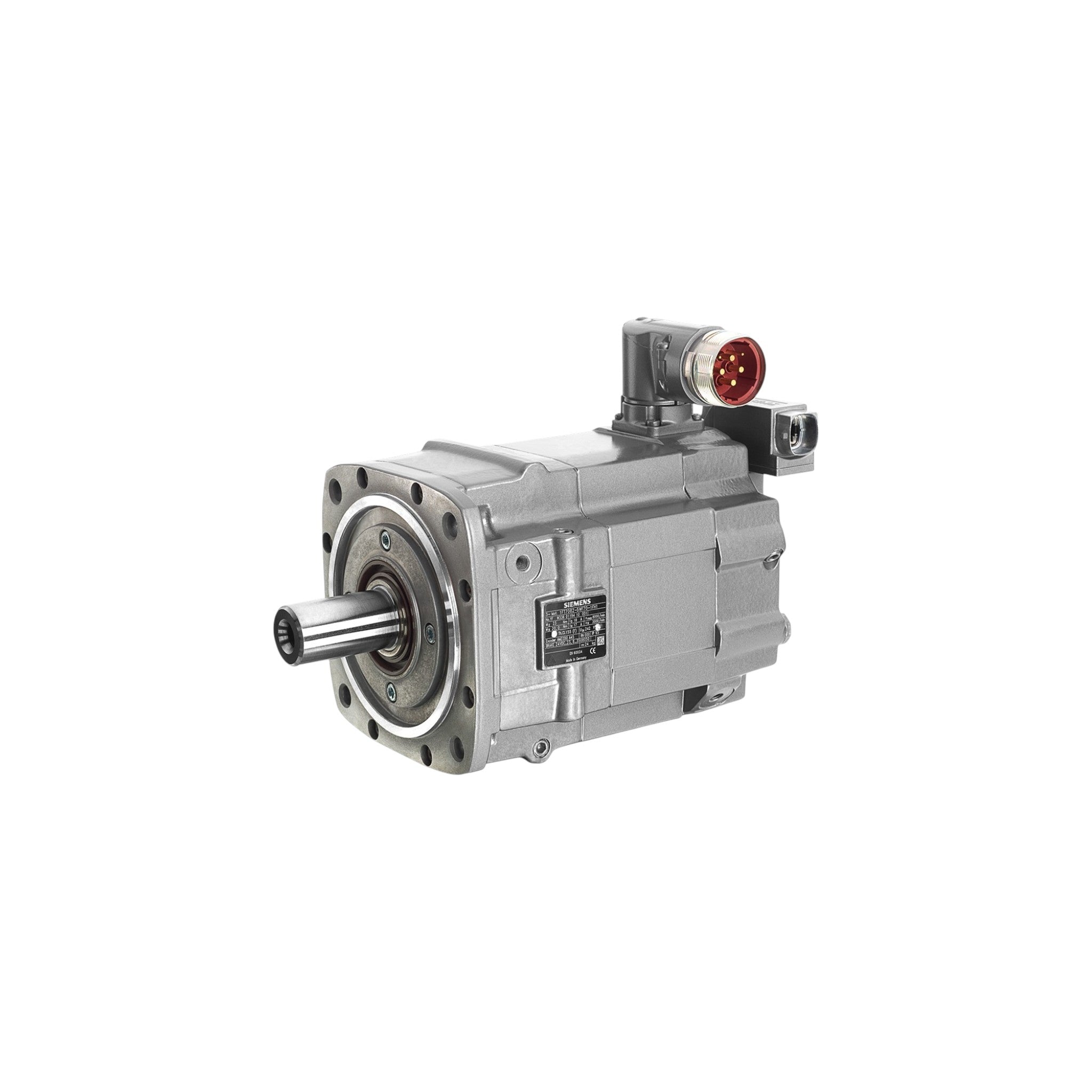

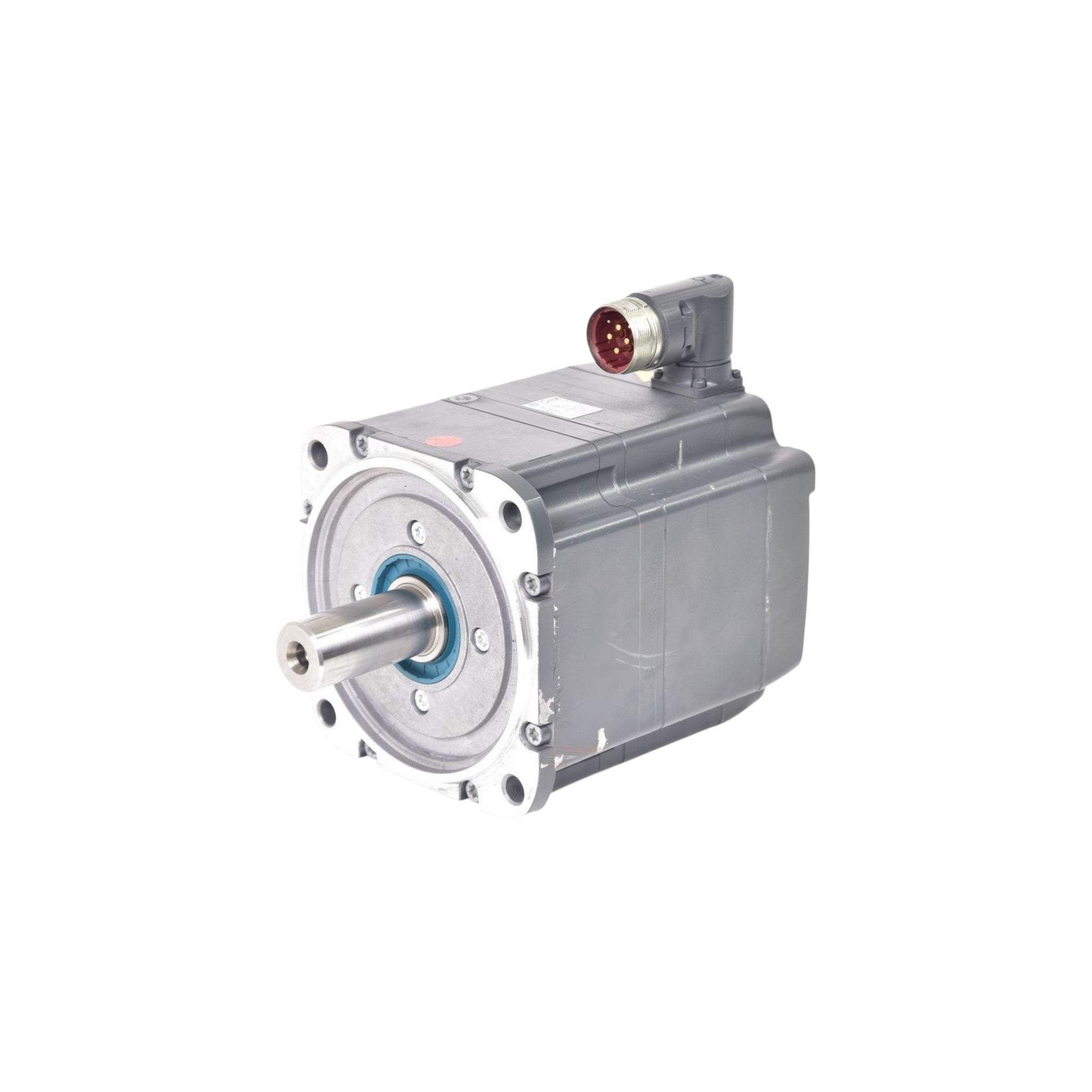

The Siemens 1FT7067-7WF7X-1XXX is a SIMOTICS S-1FT7 High Dynamic synchronous servo motor designed for demanding industrial automation and precision motion control applications. Featuring water cooling, this permanent magnet synchronous servo motor delivers 25 Nm standstill torque (100 K), 23.5 Nm rated torque, and 7.4 kW optimum output power at a 3000 RPM rated speed. Its high torque density, efficient thermal management, and exceptional dynamic response make it ideal for continuous-duty operation in CNC machine tools, robotics, packaging machinery, printing equipment, and material handling systems.
Designed for seamless integration with Siemens SINAMICS S120 drive systems, the 1FT7067-7WF7X-1XXX supports high-precision positioning, rapid acceleration, and reliable long-term performance. The configurable "X" in 7WF7X and the "1XXX" suffix represent factory-selectable options such as encoder type, shaft design, holding brake, electrical connector, and mounting configuration while maintaining the same core motor ratings.
Key Features
- Siemens SIMOTICS S-1FT7 High Dynamic synchronous servo motor
- Manufacturer Part Number: 1FT7067-7WF7X-1XXX
- Water-cooled design for superior heat dissipation
- Standstill torque (M₀, 100 K): 25 Nm
- Rated torque: 23.5 Nm
- Rated speed: 3000 RPM
- Optimum output power: 7.4 kW
- Maximum mechanical speed: 9000 RPM
- Maximum torque: Approximately 75 Nm
- Permanent magnet synchronous motor technology
- High dynamic response and precision positioning
- Compatible with Siemens SINAMICS S120 servo drive systems
- Pt1000 temperature monitoring
- Rugged industrial construction with IP64 protection (configuration dependent)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMOTICS S-1FT7 High Dynamic |
| Model Number | 1FT7067-7WF7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Water Cooling |
| Standstill Torque (100 K) | 25 Nm |
| Rated Torque | 23.5 Nm |
| Rated Speed | 3000 RPM |
| Optimum Output Power | 7.4 kW |
| Rated Current | 21 A |
| Maximum Mechanical Speed | 9000 RPM |
| Maximum Inverter Speed | 9000 RPM |
| Number of Poles | 6 |
| Rotor Inertia | Approx. 8.3 kg·cm² |
| Protection Class | IP64 (configuration dependent) |
| Temperature Sensor | Pt1000 |
| Weight | Approx. 22 kg |
| Typical Applications | CNC Machines, Robotics, Packaging Machinery, Printing Equipment, Material Handling, Industrial Automation |
Note: The "X" in 7WF7X and the "1XXX" suffix denote configurable options such as encoder type, shaft version, holding brake, connector orientation, and mounting configuration. These options do not affect the motor's primary electrical or mechanical performance.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Assembly Automation
- Textile Machinery
- Semiconductor Manufacturing
- High-Precision Motion Control
