Description
Product Description

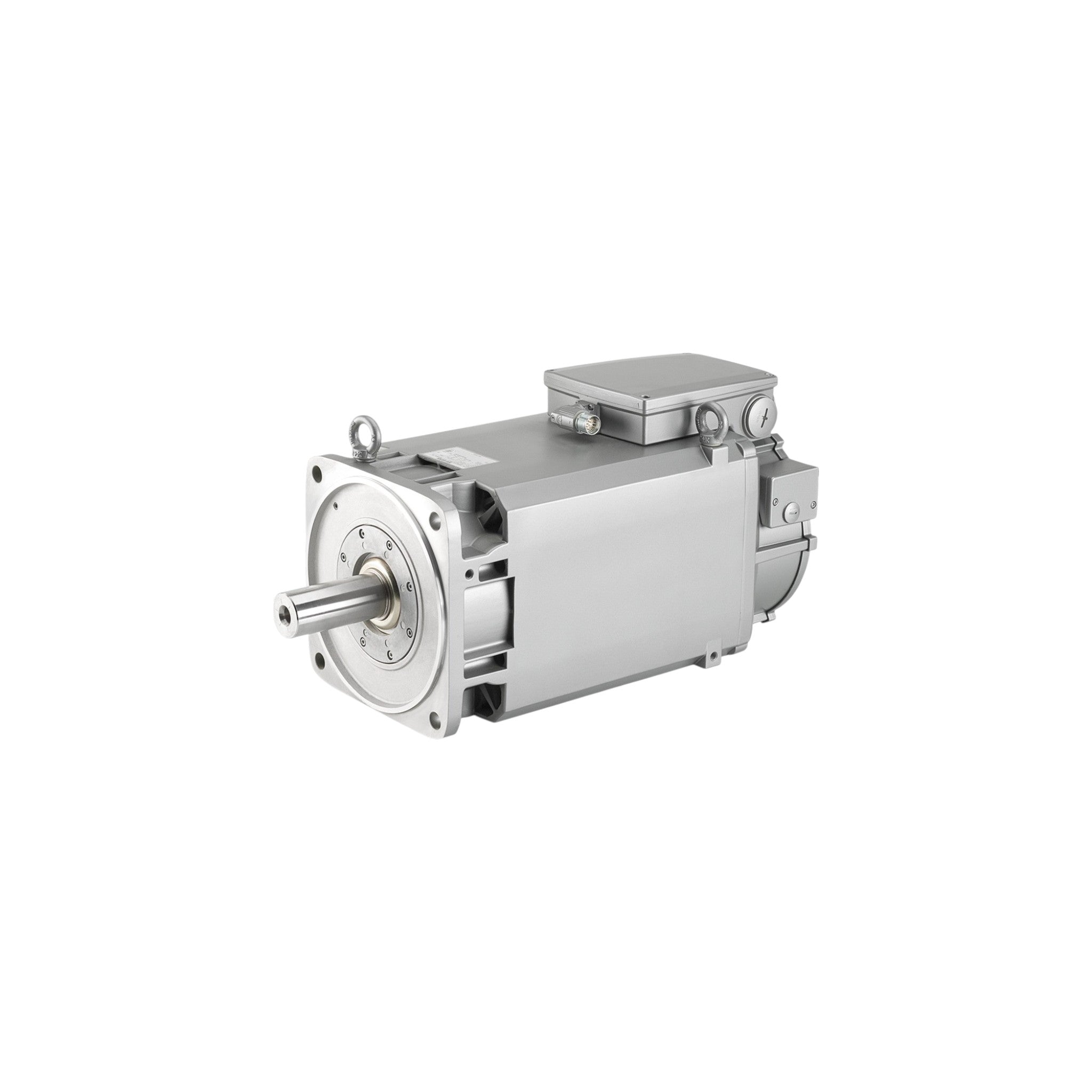

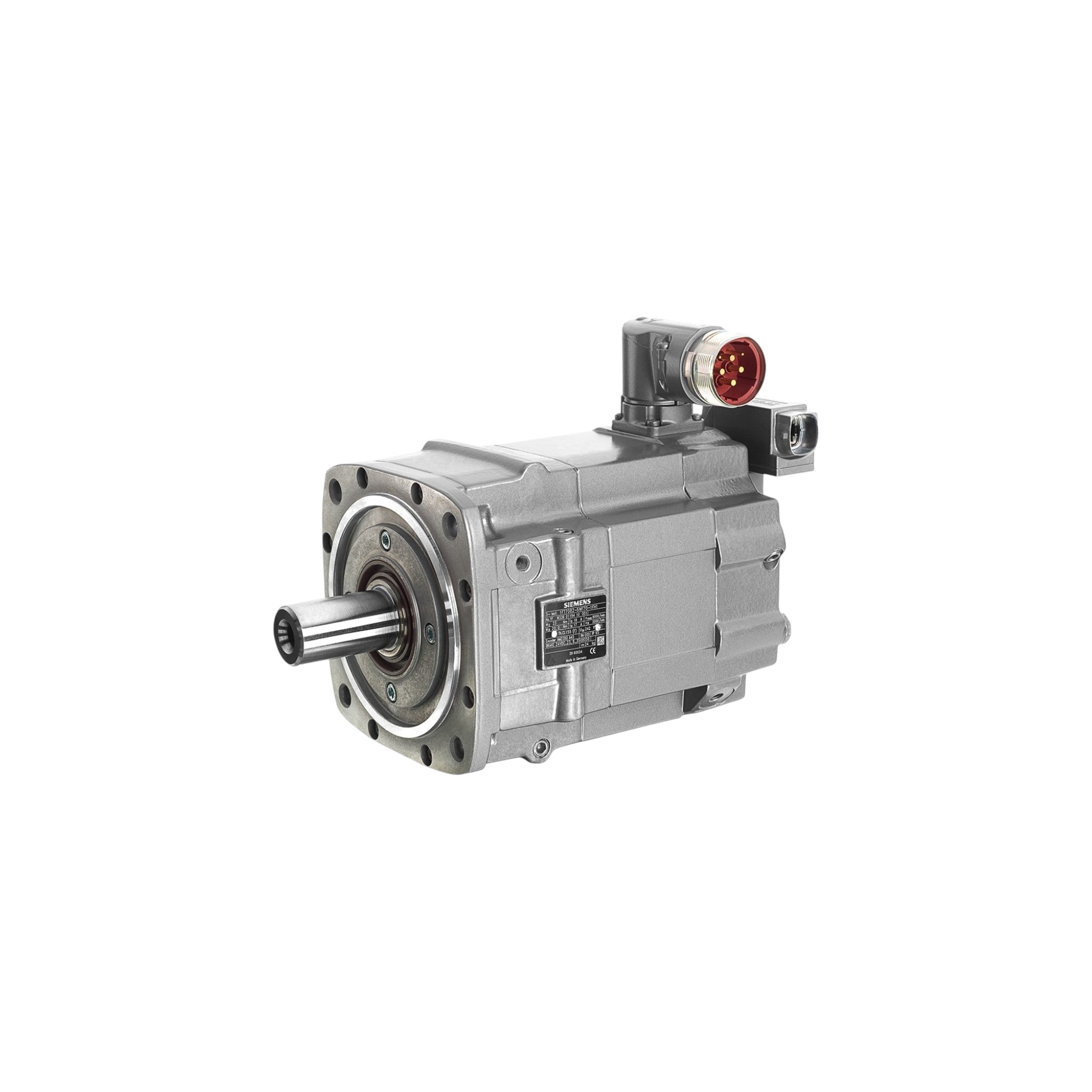

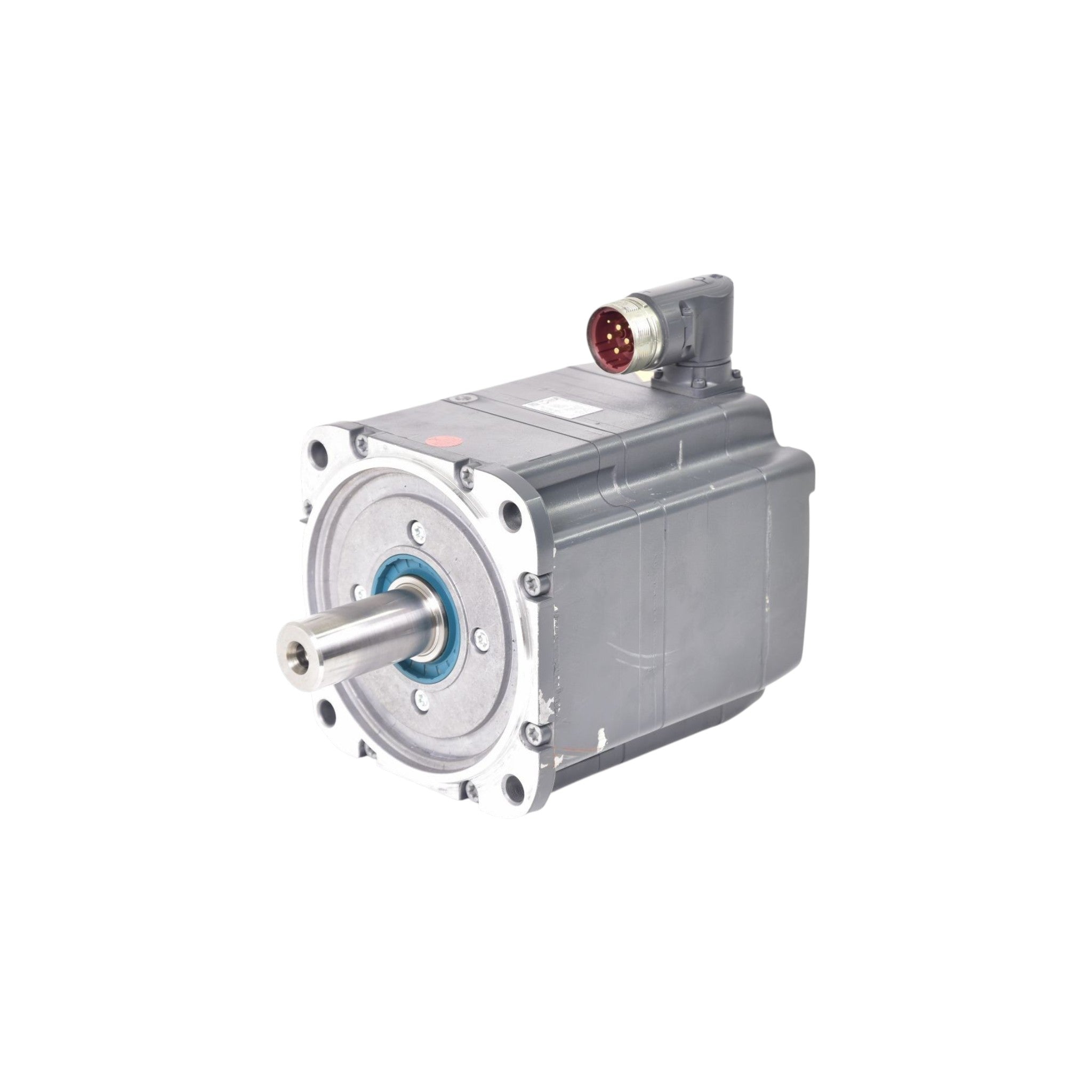

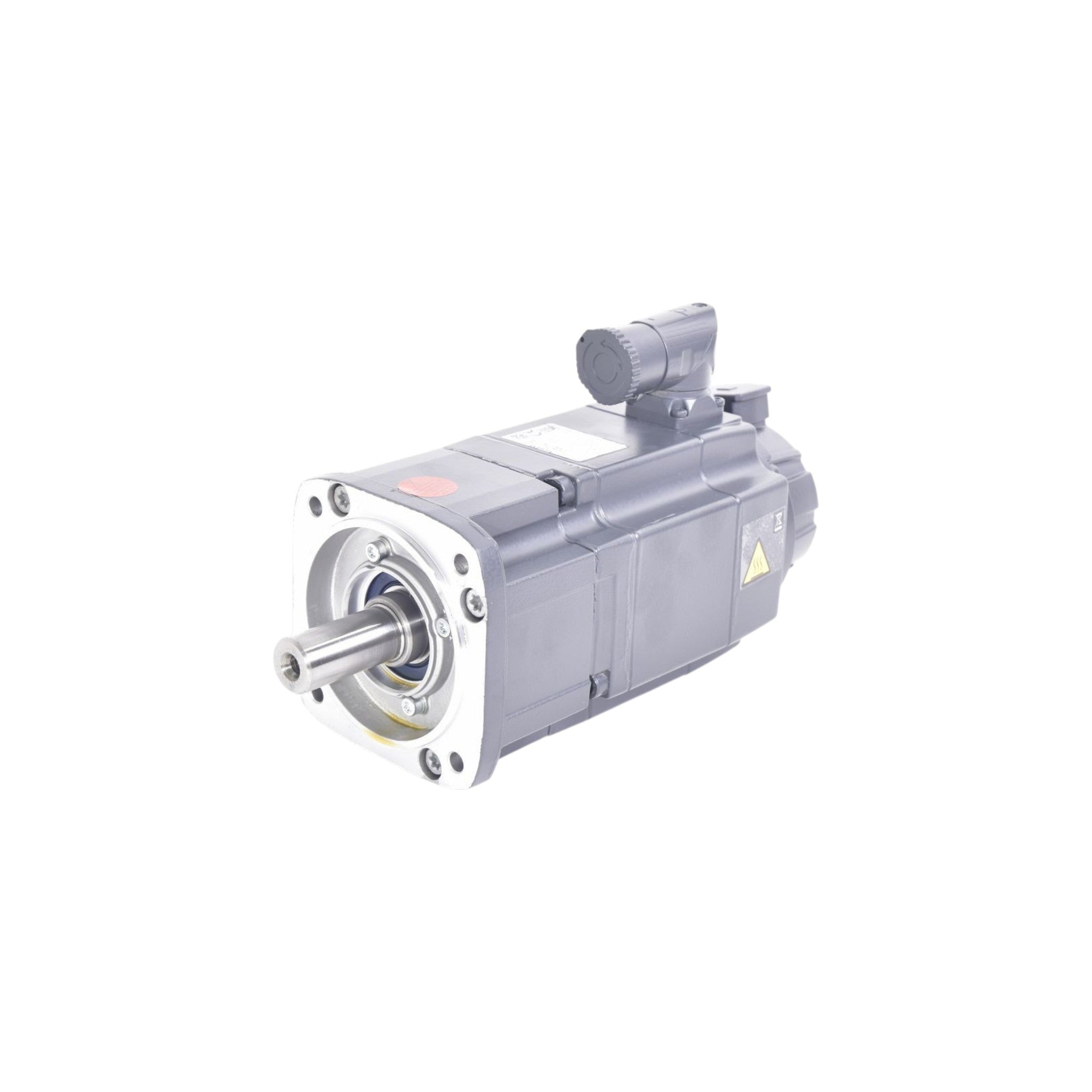

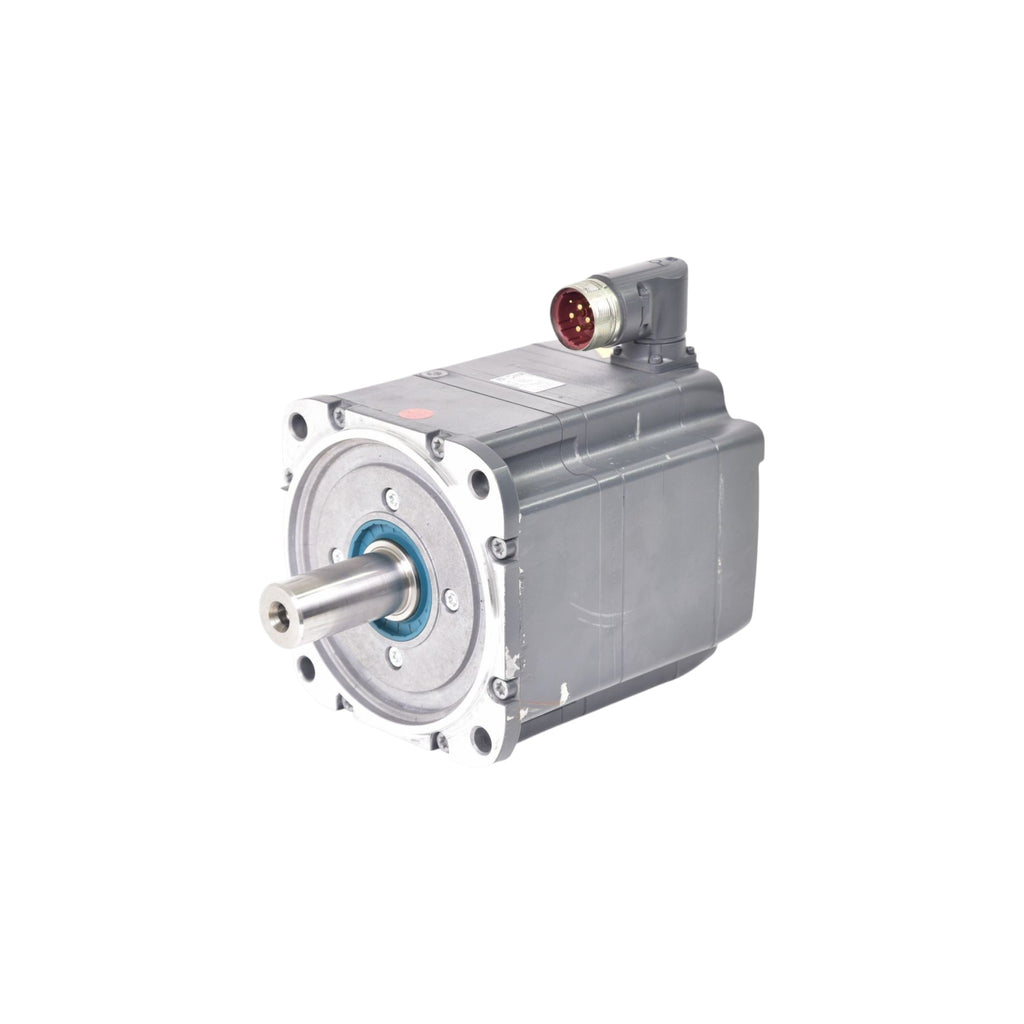

The Siemens 1FT7067-7WH7X-1XXX is a SIMOTICS S 1FT7 High Dynamic permanent magnet synchronous servo motor engineered for high-performance motion control applications. Designed for operation with Siemens SINAMICS S120 drive systems, this motor delivers outstanding dynamic response, high torque density, and exceptional positioning accuracy for demanding industrial automation environments.
The 7WH7 variant features an advanced water-cooled design that enables greater continuous output and improved thermal stability during intensive operating cycles. This model offers a 25 Nm stall torque (100 K), 4,500 rpm rated speed, and 10.4 kW rated power, making it well suited for CNC machine tools, robotics, packaging systems, material handling equipment, and precision manufacturing applications. The configurable suffix "1XXX" denotes factory-selected options such as encoder type, shaft configuration, electrical connections, and optional holding brake.
Key Features
- Siemens SIMOTICS S 1FT7 High Dynamic servo motor
- Model: 1FT7067-7WH7X-1XXX
- Permanent magnet synchronous motor
- Water-cooled construction for high continuous performance
- Rated speed: 4,500 rpm
- Stall torque (100 K): 25 Nm
- Rated power: 10.4 kW
- Maximum torque up to 60 Nm
- High-precision encoder options (configuration dependent)
- Compatible with Siemens SINAMICS S120 drive systems
- Compact, rugged design for demanding industrial environments
Applications
- CNC machine tools
- Industrial robotics
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Textile machinery
- Assembly automation
- High-speed production lines
- Precision manufacturing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMOTICS S 1FT7 High Dynamic |
| Model Number | 1FT7067-7WH7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Water Cooled |
| Rated Speed | 4,500 rpm |
| Rated Power | 10.4 kW |
| Stall Torque (100 K) | 25 Nm |
| Rated Torque (100 K) | 22 Nm |
| Maximum Torque | 60 Nm |
| Recommended Drive | Siemens SINAMICS S120 |
| Mounting | IM B5 Flange Mount |
| Encoder | Configuration Dependent |
| Holding Brake | Optional (Configuration Dependent) |
| Degree of Protection | Configuration Dependent (typically IP65/IP67) |
