Product Description

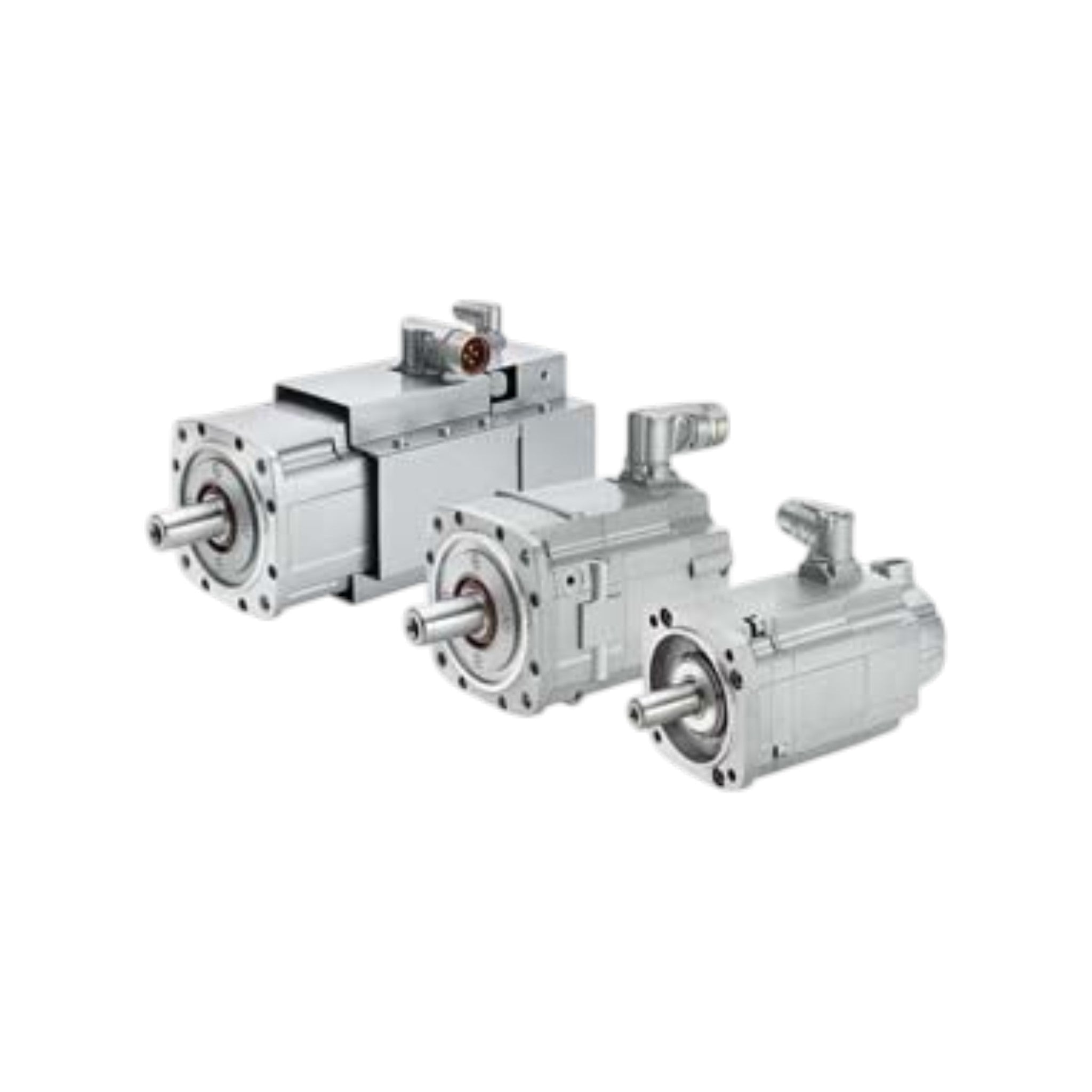

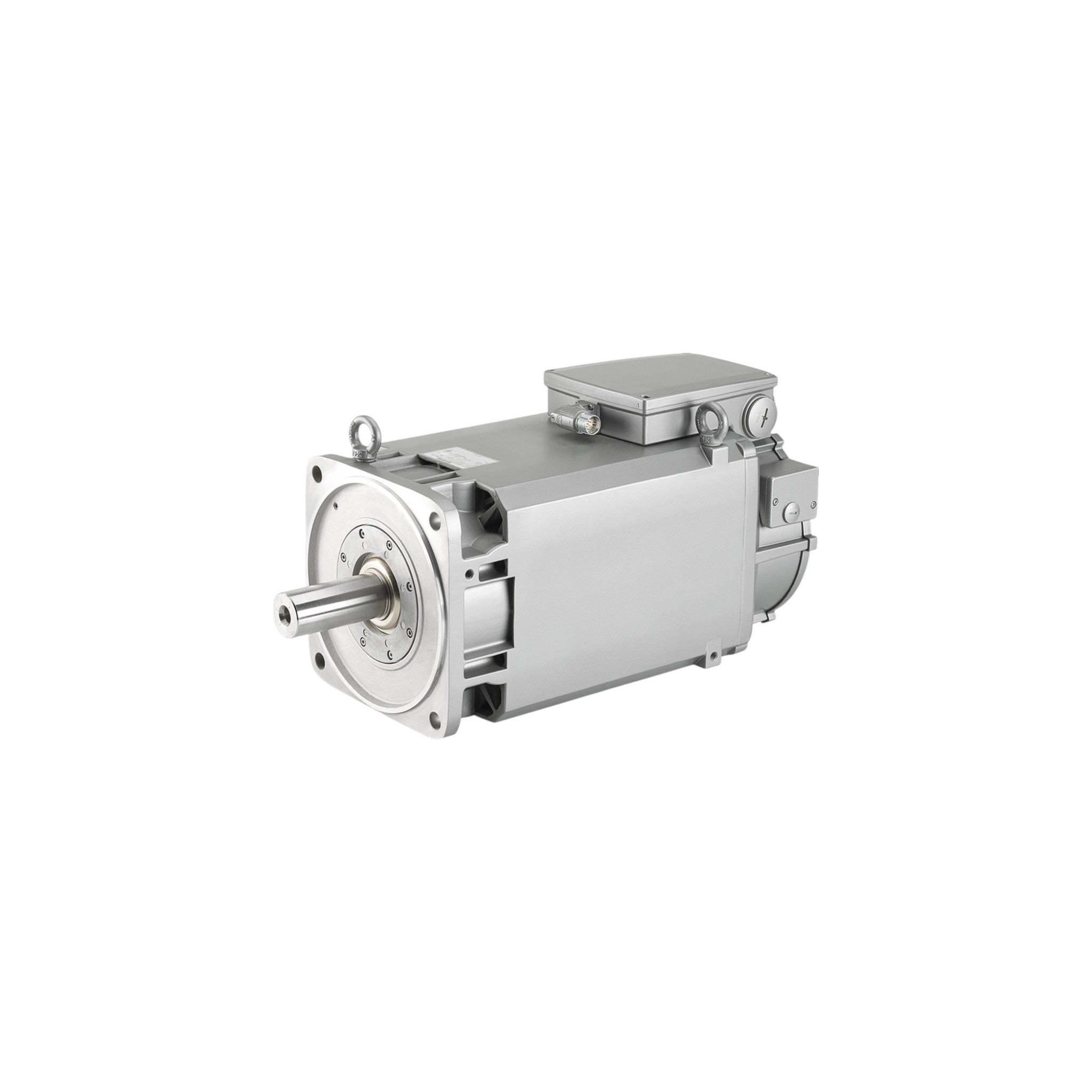

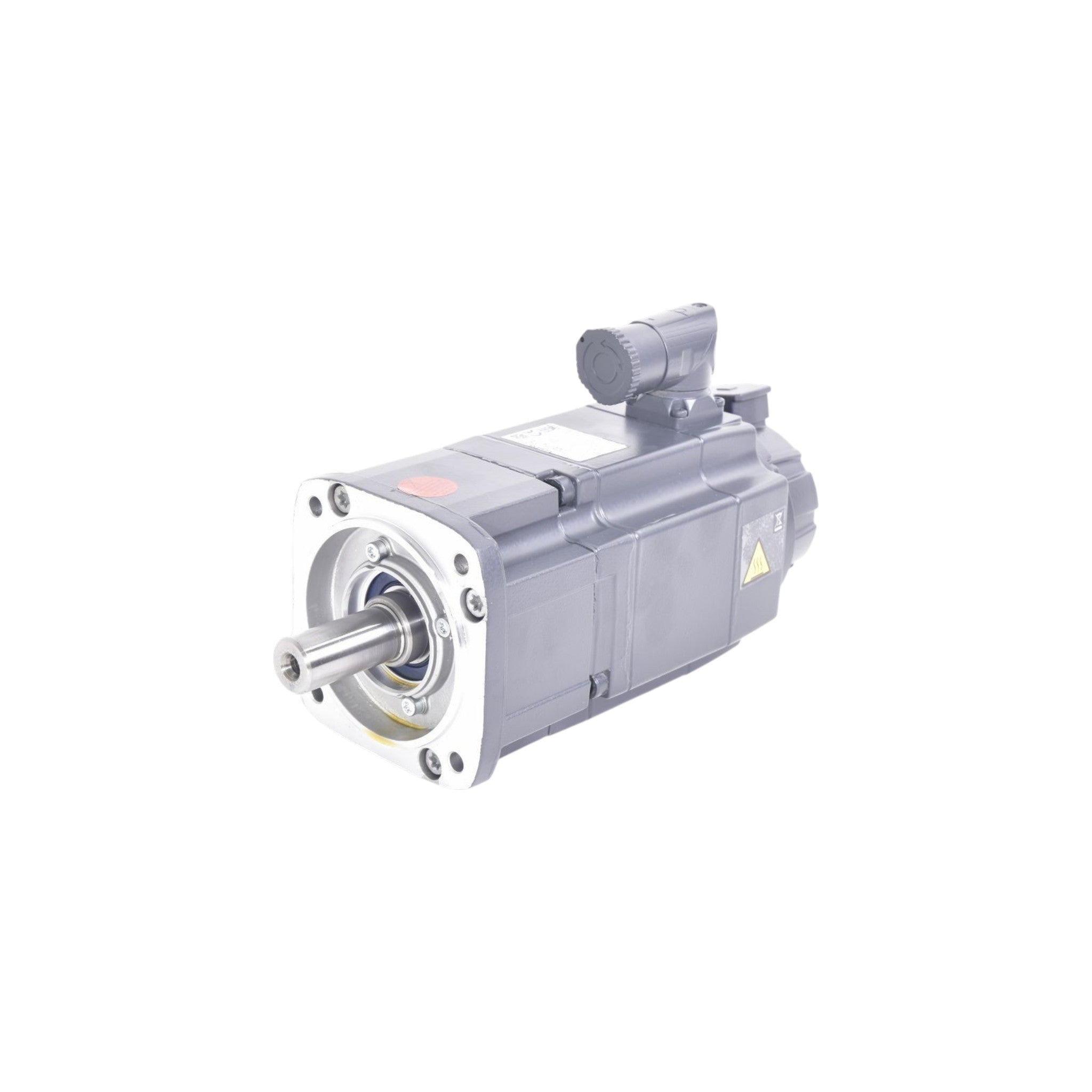

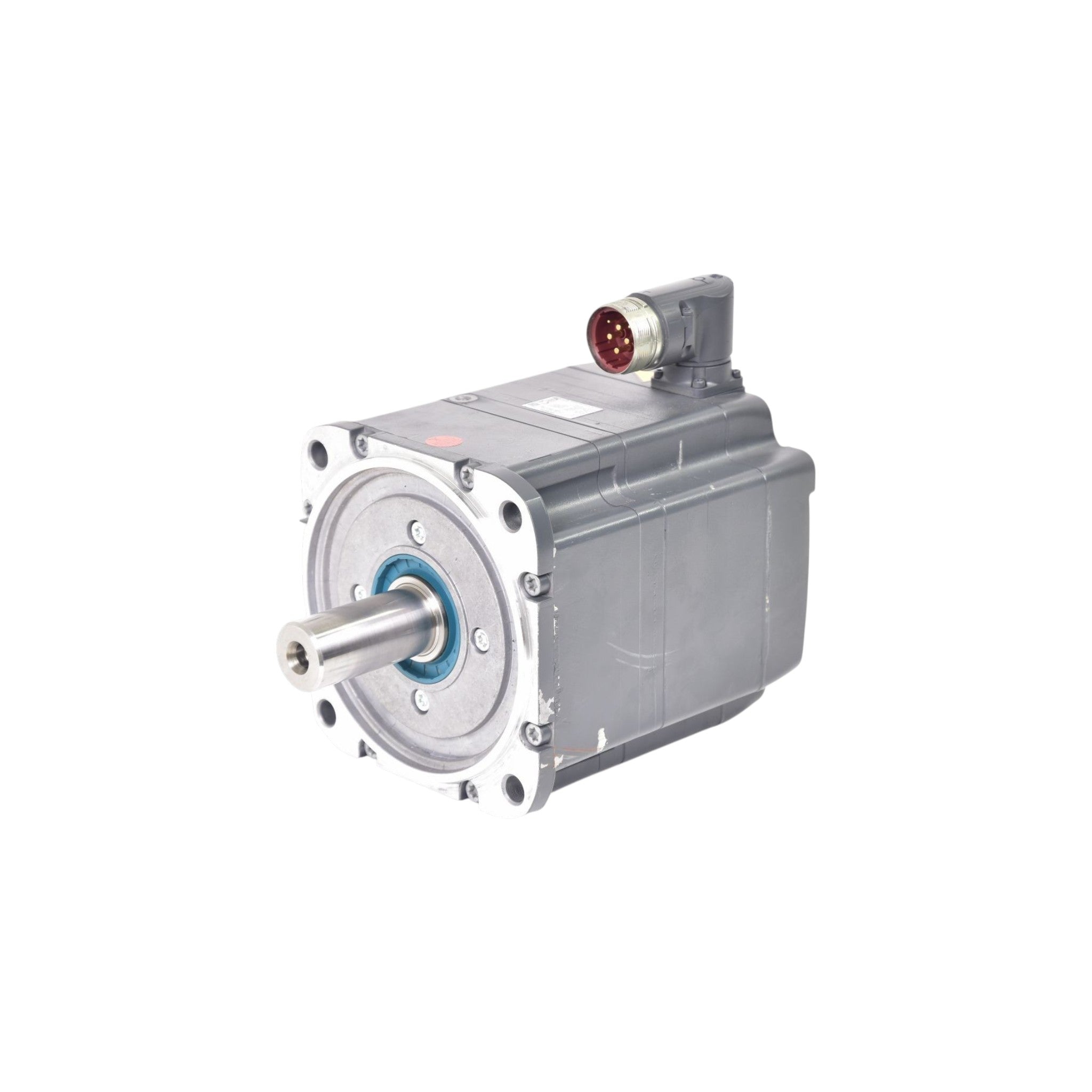

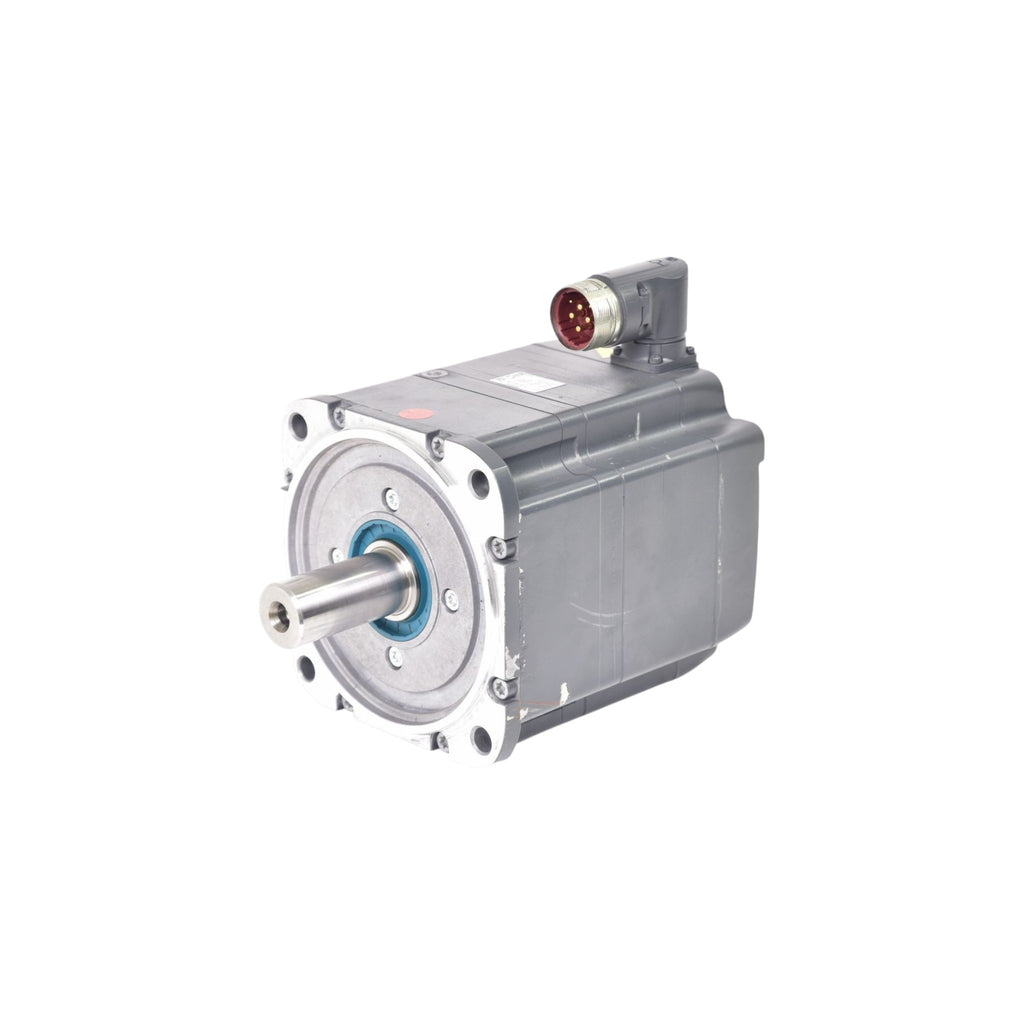

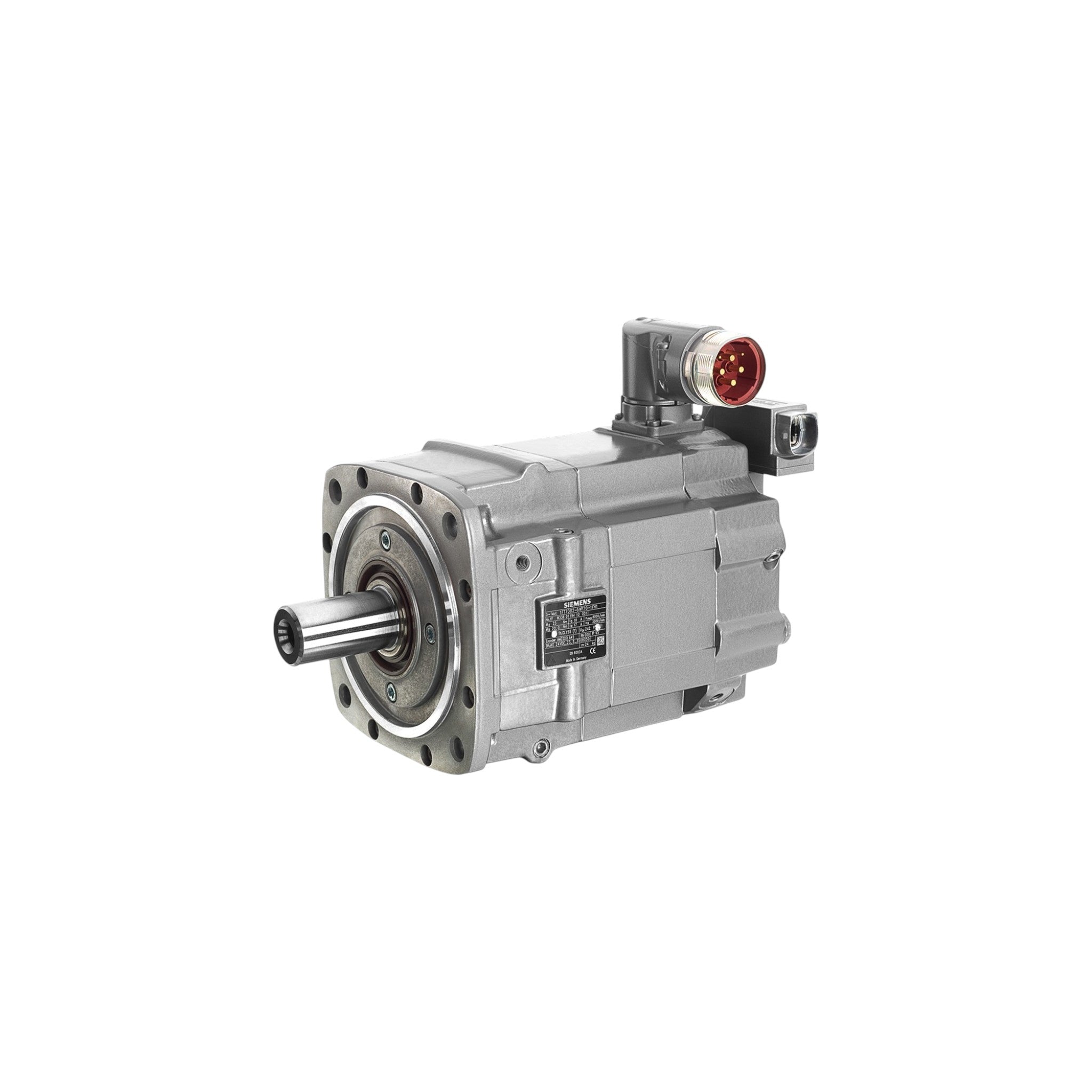

The Siemens 1FT7085-7WF7X-1XXX is a SIMOTICS S-1FT7 High Dynamic synchronous servo motor engineered for demanding industrial motion control applications requiring high torque, precision, and continuous-duty performance. Featuring water cooling, this permanent magnet synchronous servo motor delivers 43 Nm standstill torque (100 K), 38 Nm rated torque, and 11.9 kW optimum output power at a 3000 RPM rated speed. Its high torque density, efficient thermal management, and exceptional dynamic response make it ideal for CNC machine tools, robotics, packaging machinery, printing systems, and material handling equipment.
Designed for seamless integration with Siemens SINAMICS S120 drive systems, the 1FT7085-7WF7X-1XXX provides accurate positioning, rapid acceleration, and reliable long-term operation in demanding industrial environments. The configurable "X" in 7WF7X and the "1XXX" suffix represent factory-selectable options such as encoder type, shaft configuration, holding brake, connector orientation, and mounting arrangement while maintaining the same core motor performance.
Key Features
- Siemens SIMOTICS S-1FT7 High Dynamic synchronous servo motor
- Manufacturer Part Number: 1FT7085-7WF7X-1XXX
- Water-cooled design for superior thermal performance
- Standstill torque (M₀, 100 K): 43 Nm
- Rated torque: 38 Nm
- Rated speed: 3000 RPM
- Optimum output power: 11.9 kW
- Maximum mechanical speed: 8000 RPM
- Maximum inverter speed: 7500 RPM
- Maximum torque: 105 Nm
- Rated current: 32 A
- Maximum current: 126 A
- Permanent magnet synchronous motor technology
- High dynamic response and positioning accuracy
- Compatible with Siemens SINAMICS S120 servo drive systems
- Pt1000 temperature sensor
- IP65 protection for industrial environments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMOTICS S-1FT7 High Dynamic |
| Model Number | 1FT7085-7WF7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Water Cooling |
| Standstill Torque (100 K) | 43 Nm |
| Rated Torque | 38 Nm |
| Rated Speed | 3000 RPM |
| Optimum Output Power | 11.9 kW |
| Rated Current | 32 A |
| Maximum Mechanical Speed | 8000 RPM |
| Maximum Inverter Speed | 7500 RPM |
| Maximum Torque | 105 Nm |
| Maximum Current | 126 A |
| Number of Poles | 8 |
| Rotor Inertia | Approx. 20.7 kg·cm² (configuration dependent) |
| Efficiency | 93% |
| Protection Class | IP65 |
| Temperature Sensor | Pt1000 |
| Weight | Approx. 32 kg |
| Typical Applications | CNC Machines, Robotics, Packaging, Printing, Material Handling, Industrial Automation |
Note: The "X" in 7WF7X and the "1XXX" suffix denote configurable factory options including encoder type, shaft version, holding brake, electrical connection, and mounting configuration. These options do not affect the motor's primary electrical and mechanical performance.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Assembly Automation
- Semiconductor Manufacturing
- Textile Machinery
- High-Precision Motion Control
