Description
Product Description

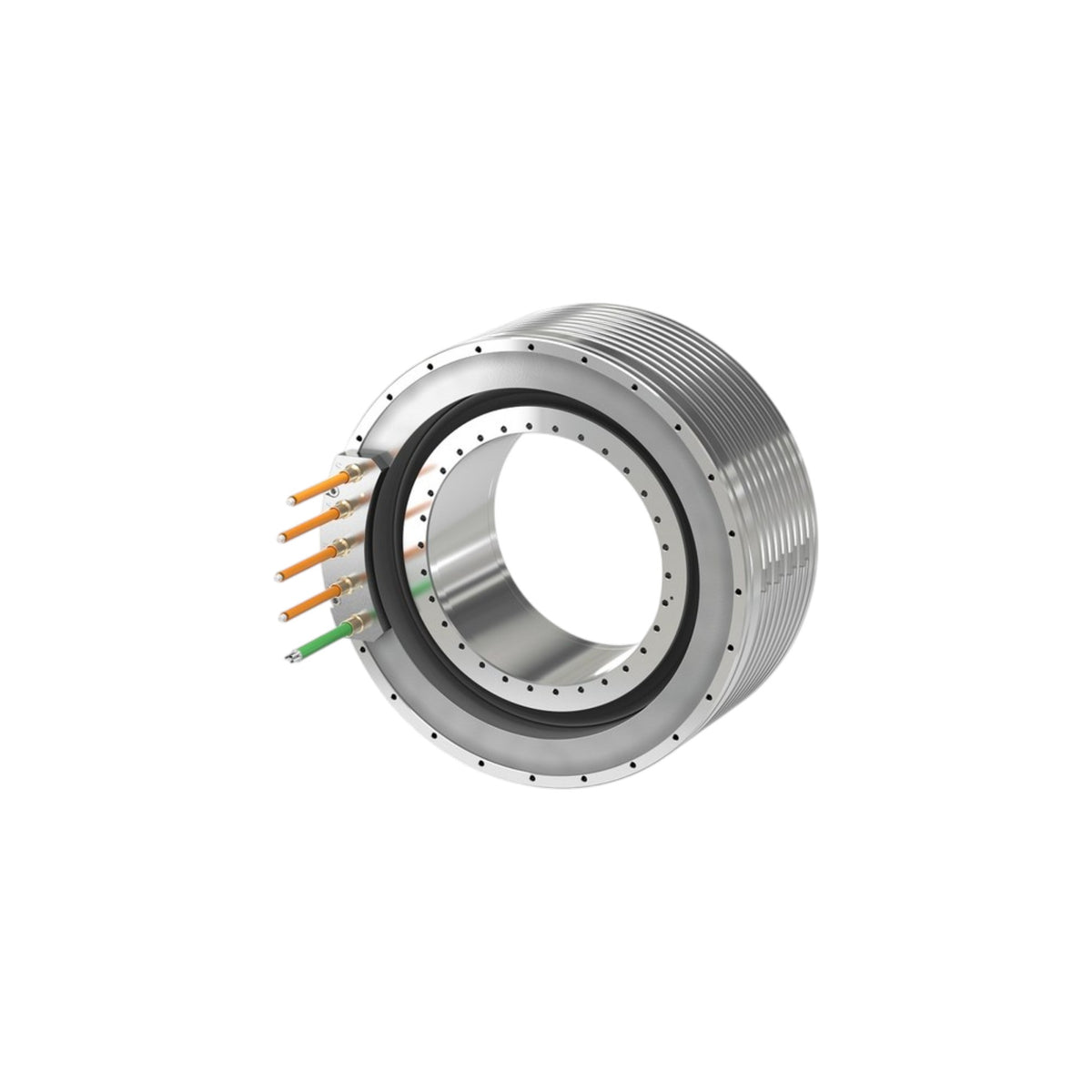

The Siemens SIMOTICS T-1FW3 Complete Torque Motor is a high-performance permanent magnet synchronous direct-drive motor designed for applications requiring exceptional torque, precision, and dynamic performance. Engineered for operation with Siemens SINAMICS S120 drive systems, the T-1FW3 provides a compact, highly efficient alternative to conventional geared and hydraulic drive systems.
Featuring a water-cooled, high-pole design, the SIMOTICS T-1FW3 delivers outstanding torque at low speeds while maintaining excellent control accuracy and smooth-running characteristics. The complete motor package includes factory-assembled components for simplified installation and a highly rigid drivetrain, enabling superior machine performance and reliability.
Available with hollow shaft, plug-on shaft, and solid shaft configurations, the T-1FW3 can be adapted to a wide range of industrial applications, including metal forming equipment, plastics machinery, marine systems, rotary tables, and process industry drives. Its direct-drive architecture eliminates gearboxes, belts, and couplings, reducing maintenance requirements and increasing overall system efficiency.
Key Features
- Permanent magnet synchronous complete torque motor
- Water-cooled design for high continuous torque output
- High-pole motor technology for exceptional low-speed torque
- Direct-drive operation without gearboxes or couplings
- High positioning accuracy and dynamic response
- Compact and space-saving construction
- Available in hollow shaft, plug-on shaft, and solid shaft versions
- Factory-assembled motor package for simplified installation
- Optimized for Siemens SINAMICS S120 drive systems
- Reduced maintenance and increased machine availability
Technical Specifications
| Specification | Details |
|---|---|
| Product Series | SIMOTICS T-1FW3 |
| Motor Type | Permanent Magnet Synchronous Complete Torque Motor |
| Cooling Method | Water Cooling |
| Drive Principle | Rotary Direct Drive |
| Shaft Heights | 150, 200, 280 |
| Rated Torque Range | 95 Nm – 7,000 Nm |
| Maximum Torque | Up to 11,000 Nm |
| Rated Power Range | 2.8 kW – 435 kW |
| Speed Range | 50 – 1,800 rpm |
| Protection Class | IP54 / IP55 (depending on shaft version) |
| Drive Compatibility | SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications vary according to motor size and shaft configuration.
Applications
- Metal Forming Machinery
- Plastic Processing Equipment
- Marine Propulsion and Positioning Systems
- Rotary Tables and Indexing Systems
- Test Benches and Dynamometers
- Heavy-Duty Production Machinery
- Process Industry Equipment
- High-Torque Positioning Systems
- Printing and Converting Machinery
- Industrial Automation Systems
