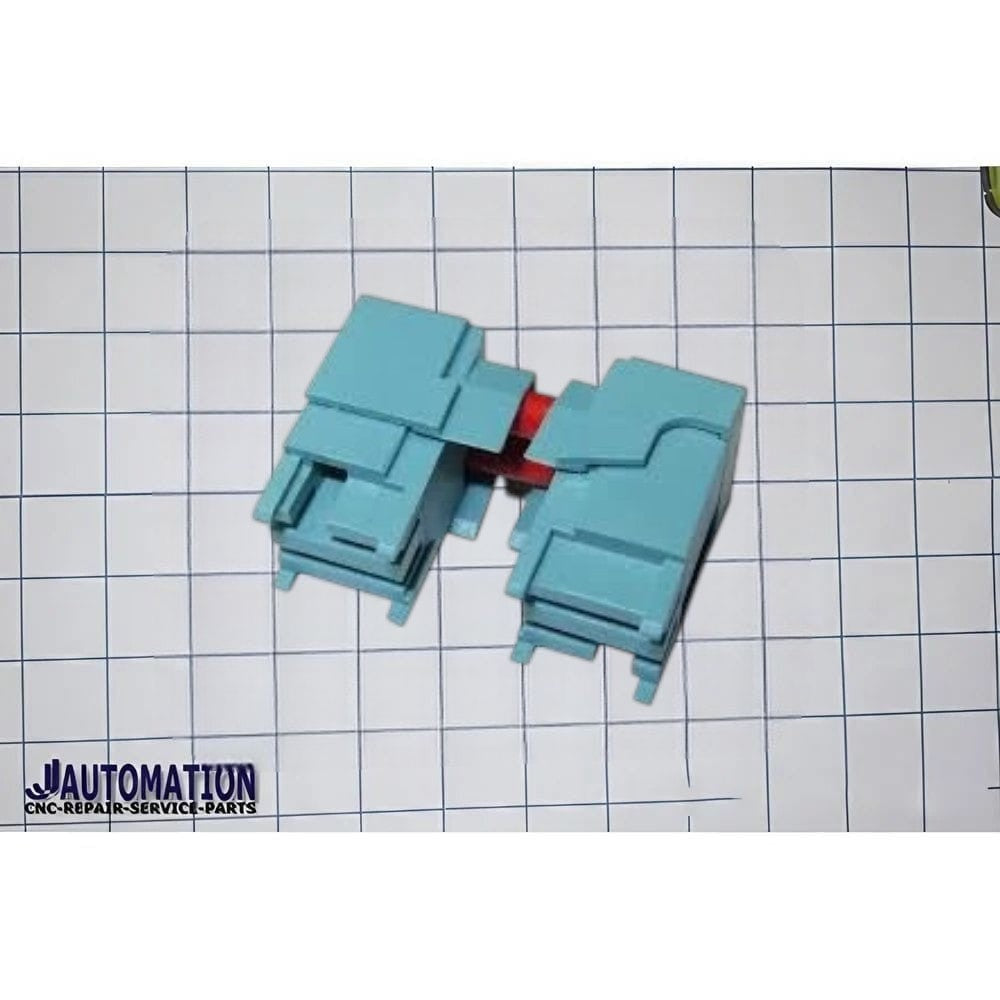

Siemens 6SL3162-2AA01-0AA0 – SINAMICS 24 V Plug-In Jumper
The Siemens 6SL3162-2AA01-0AA0 is a SINAMICS S120 replacement 24 V plug-in jumper designed for Booksize modules. It is an accessory used to connect the 24 V busbars between SINAMICS S120 modules, ensuring reliable distribution of the control supply voltage throughout the drive system.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3162-2AA01-0AA0 |
| Product Type | 24 V Plug-In Jumper |
| Application | 24 V Busbar Connection |
| Compatible System | SINAMICS S120 Booksize Modules |
| Mounting Type | Plug-in |
| Voltage Rating | 24 V DC |
📌 Siemens describes this accessory as a replacement 24 V plug-in jumper for modules in Booksize design.
⚙️ Main Functions
The 6SL3162-2AA01-0AA0 is designed to:
- Connect 24 V busbars between SINAMICS S120 Booksize modules
- Distribute control voltage throughout the drive lineup
- Simplify installation and maintenance
- Replace damaged or missing jumpers
- Ensure reliable power supply to module electronics
- Support modular SINAMICS S120 system configurations
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | 24 V Plug-In Jumper |
| Rated Voltage | 24 V DC |
| Mounting Style | Plug-in |
| Compatible Modules | SINAMICS S120 Booksize |
| Package Quantity | 5 Pieces |
| Weight | Approx. 0.06 kg |
| Operating Temperature | 0°C to +55°C |
Technical specifications are listed by Siemens distributors and automation suppliers.
🧠 System Role
In a SINAMICS S120 drive system:
24 V Power Supply
→ 6SL3162-2AA01-0AA0 Plug-In Jumper
→ 24 V Busbars
→ SINAMICS S120 Modules
The jumper serves as a 24 V interconnection accessory, allowing auxiliary control power to be shared between adjacent Booksize modules.
🔍 Difference Between Similar Accessories
| Model | Function |
|---|---|
| 6SL3162-2AA00-0AA0 | 24 V Terminal Adapter |
| 6SL3162-2AA01-0AA0 | 24 V Plug-In Jumper |
The 6SL3162-2AA00-0AA0 provides a connection point for an external 24 V DC supply, while the 6SL3162-2AA01-0AA0 is used to bridge and distribute the 24 V supply between Booksize modules.
🏭 Typical Applications
- CNC machine tools
- SINUMERIK-controlled systems
- Robotics cells
- Packaging machinery
- Material handling systems
- Multi-axis servo drive systems
- Industrial automation panels using SINAMICS S120 drives
