Siemens 6SL3100-0BE28-0AB0 Description

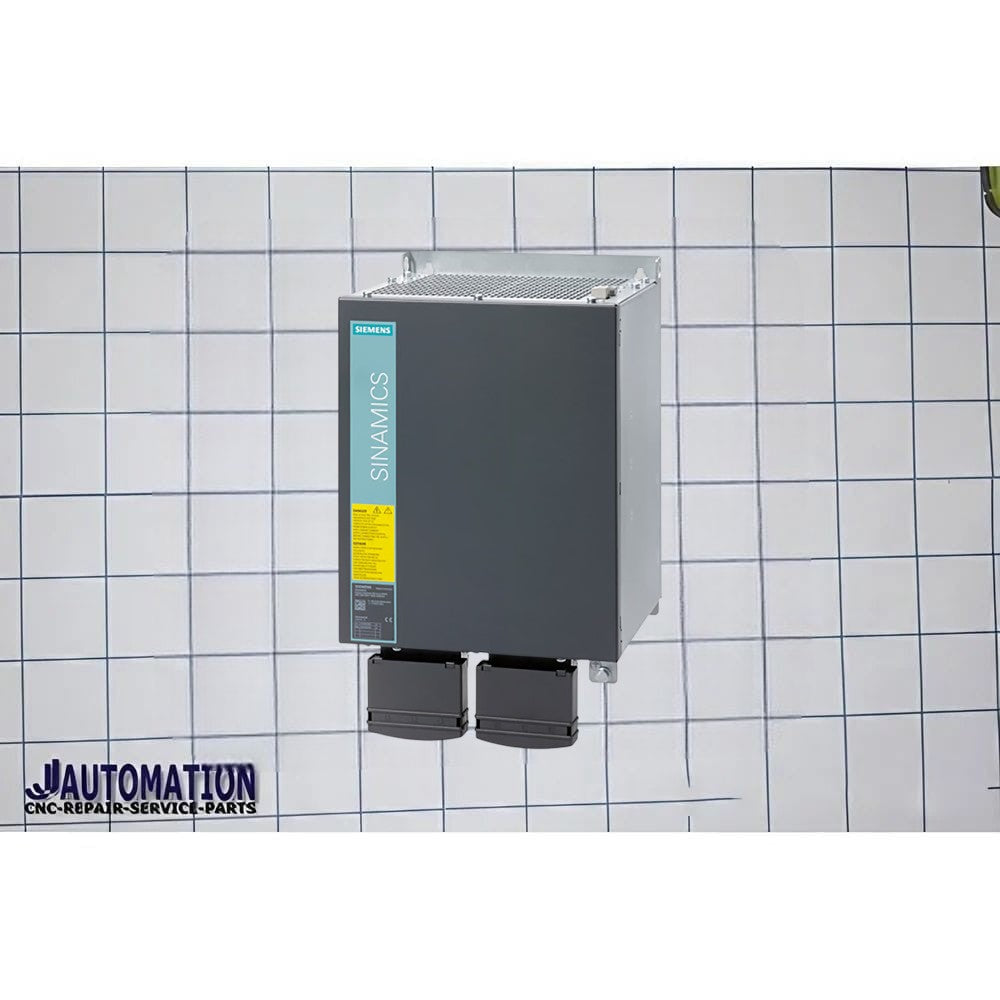

The Siemens 6SL3100-0BE28-0AB0 is a SINAMICS S120 Active Interface Module (AIM) designed for use with 80 kW Active Line Modules (ALM) in SINAMICS S120 drive systems. It serves as the line-side interface between the three-phase AC mains supply and the Active Line Module, providing power conditioning, harmonic reduction, and support for regenerative energy feedback. It is designed for operation on 3-phase 380ā480 V AC, 50/60 Hz power systems.
The Active Interface Module works together with the Active Line Module to create a high-performance front-end power supply solution. This configuration allows braking energy generated by servo motors to be returned to the electrical grid, improving energy efficiency and reducing heat dissipation within the control cabinet. The module also helps improve power factor and minimize harmonic distortion on the mains supply.
Designed for demanding industrial applications, the 6SL3100-0BE28-0AB0 is commonly used in CNC machine tools, robotics, packaging machinery, material handling systems, printing equipment, and multi-axis servo drive installations requiring high-performance motion control and regenerative power capability.
š§ Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3100-0BE28-0AB0 |
| Product Type | Active Interface Module (AIM) |
| Compatible Active Line Module | 80 kW |
| Input Voltage | 3 AC 380ā480 V |
| Frequency | 50/60 Hz |
| System Architecture | SINAMICS S120 |
| Product Family | Active Interface Modules (Booksize) |
Ā
āļø Main Functions
- Interfaces the AC mains supply with an 80 kW Active Line Module
- Supports regenerative energy feedback to the power grid
- Reduces harmonic distortion on the mains network
- Improves system power factor
- Stabilizes DC link power supply
- Enhances energy efficiency in servo drive systems
- Supports compliance with industrial power-quality requirements
Ā
š Technical Specifications
| Specification | Value |
|---|---|
| Supply Voltage | 3 AC 380ā480 V |
| Frequency | 50/60 Hz |
| Compatible ALM Rating | 80 kW |
| Rated Current | 128 A |
| Dimensions (H Ć W Ć D) | 300 Ć 380 Ć 270 mm |
| Weight | Approx. 31.9 kg |
| System Family | SINAMICS S120 |
| Mounting Format | Booksize |
Ā
š Typical Applications
- CNC machining centers
- SINUMERIK-controlled machine tools
- Robotics and automation systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Multi-axis servo drive installations
- Industrial manufacturing lines
Ā
š§¾ Short Website Description
The Siemens 6SL3100-0BE28-0AB0 is a SINAMICS S120 Active Interface Module engineered for 80 kW Active Line Modules. Designed for 380ā480 V three-phase power systems, it provides efficient line-side power conditioning, harmonic reduction, and regenerative energy feedback. Ideal for CNC machines, robotics, packaging equipment, and industrial automation applications, it helps improve power quality, energy efficiency, and overall drive system performance.
