Siemens 6SL3000-0BE25-5DA0 Description

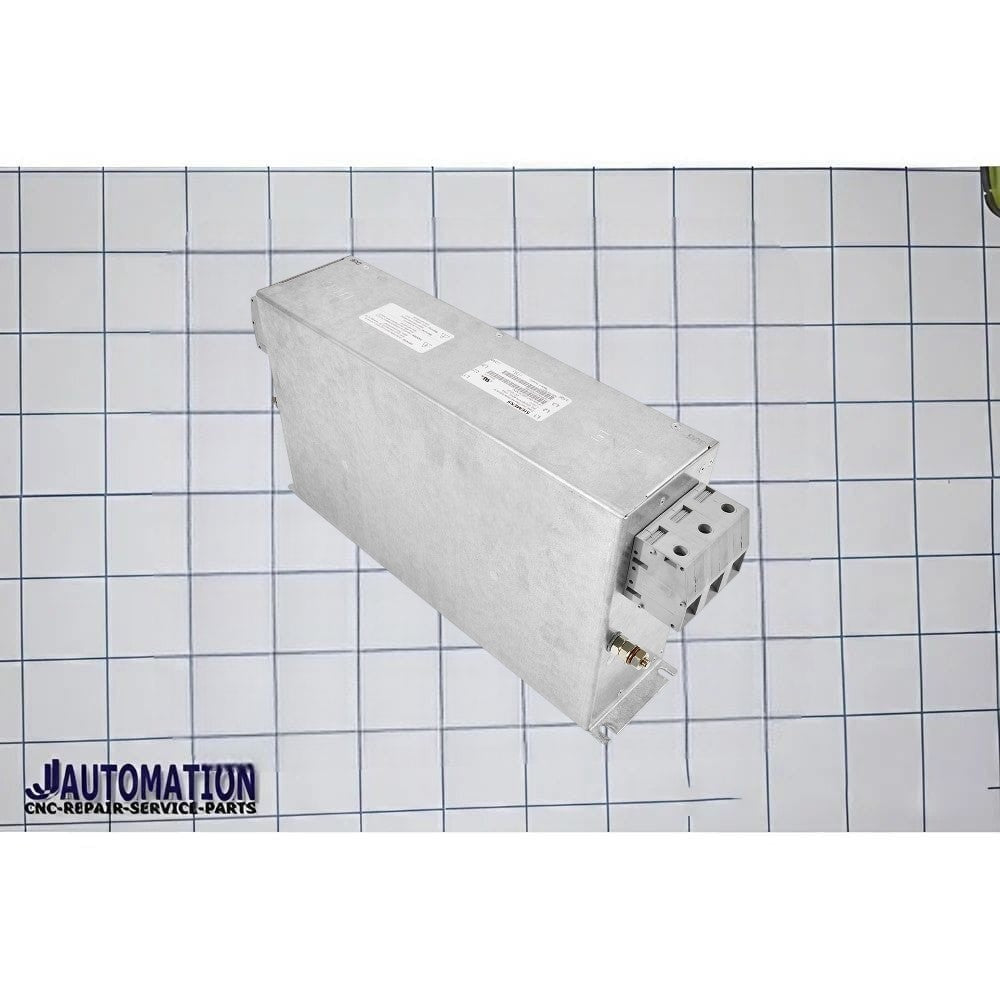

The Siemens 6SL3000-0BE25-5DA0 is a SINAMICS S120 Basic Line Filter designed for use with 55 kW Active Line Modules (ALM), 55 kW Smart Line Modules (SLM), and compatible SINAMICS S120 drive systems operating on 3-phase 200ā240 V AC, 50/60 Hz power supplies. The filter is installed between the mains supply and the drive system to suppress conducted electromagnetic interference (EMI), reduce electrical noise, and improve overall power quality.
As part of the SINAMICS S120 modular drive platform, the Basic Line Filter helps drive systems comply with EMC (Electromagnetic Compatibility) requirements by limiting conducted emissions transmitted back to the power network. This improves system reliability, protects sensitive control equipment, and ensures stable operation of servo drives and motion-control applications.
The 6SL3000-0BE25-5DA0 is widely used in CNC machine tools, robotics, packaging machinery, material handling systems, printing equipment, and other industrial automation applications where reliable power quality and EMC compliance are essential.
š§ Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3000-0BE25-5DA0 |
| Product Type | Basic Line Filter |
| Input Voltage | 3 AC 200ā240 V |
| Frequency | 50/60 Hz |
| Compatible Drive Rating | 55 kW |
| System Family | SINAMICS S120 |
| Design Format | Booksize |
āļø Main Functions
- Reduces conducted electromagnetic interference (EMI)
- Suppresses mains-borne electrical noise
- Improves EMC compliance
- Enhances power quality and system reliability
- Protects sensitive automation and control equipment
- Supports stable operation of SINAMICS drives
- Reduces interference with nearby electronic devices
š Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Basic Line Filter |
| Supply Voltage | 3 AC 200ā240 V |
| Frequency | 50/60 Hz |
| Compatible Power Rating | 55 kW |
| Cooling Method | Passive |
| Mounting Design | Booksize |
| Application | SINAMICS S120 Drive Systems |
š Typical Applications
- CNC milling and turning machines
- SINUMERIK-controlled machine tools
- Robotics and automation systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Conveyor systems
- Multi-axis servo drive installations
ā Key Benefits
- Improved EMC performance
- Reduced electrical noise and interference
- Enhanced drive system reliability
- Compliance with industrial EMC standards
- Compact Booksize design
- Easy integration into SINAMICS S120 systems
- Reliable operation in industrial environments
