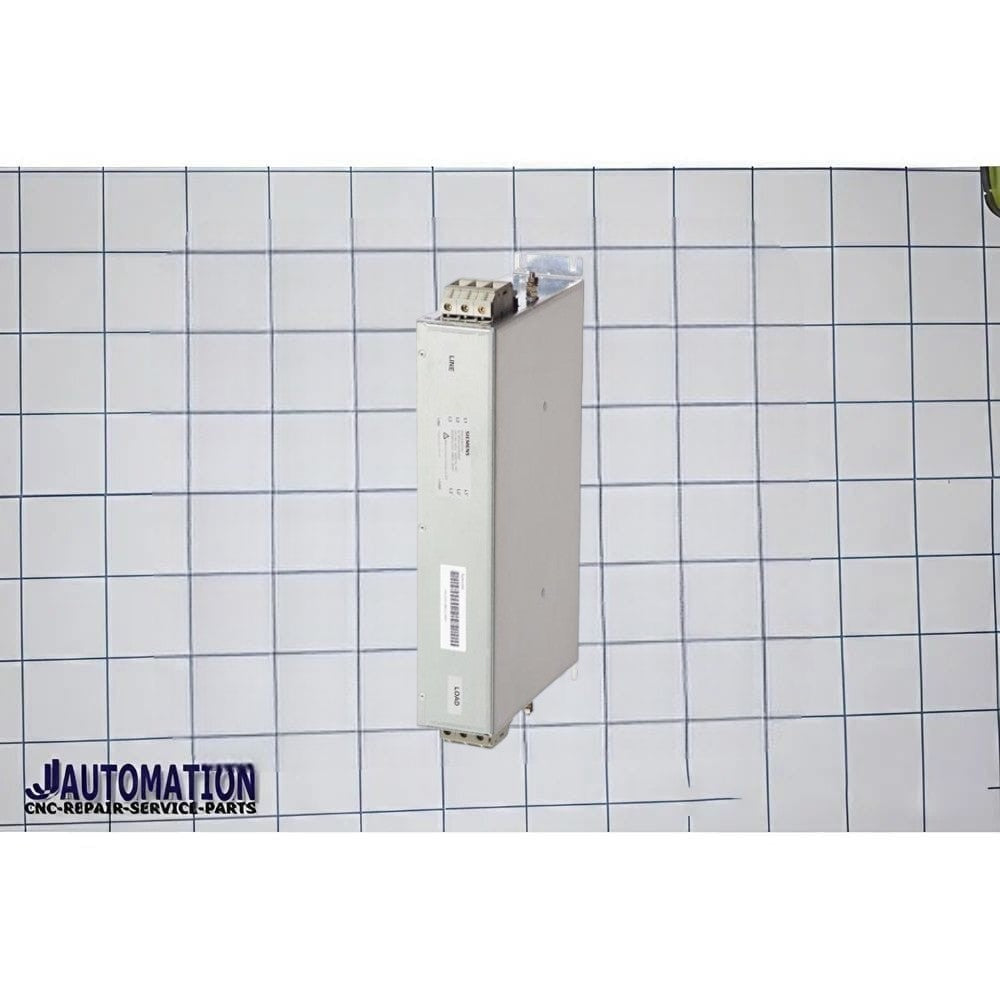

Siemens 6SL3000-0BE28-0DA0 Description
The Siemens 6SL3000-0BE28-0DA0 is a SINAMICS S120 Basic Line Filter designed for use with 80 kW Active Line Modules (ALM), 80 kW Smart Line Modules (SLM), and compatible SINAMICS S120 drive systems operating on 3-phase 380ā480 V AC, 50/60 Hz power supplies. It is installed between the mains supply and the drive system to suppress conducted electromagnetic interference (EMI), reduce line-borne noise, and improve overall power quality.
As an integral component of the SINAMICS S120 drive platform, the Basic Line Filter helps drive installations meet EMC (Electromagnetic Compatibility) requirements by minimizing conducted emissions returned to the electrical network. This contributes to improved system reliability, protection of sensitive control electronics, and stable operation of high-performance motion-control systems.
The 6SL3000-0BE28-0DA0 is commonly used in CNC machine tools, robotics, packaging machinery, material handling systems, printing equipment, and other industrial automation applications requiring reliable drive performance and compliance with industrial EMC standards.
š§ Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3000-0BE28-0DA0 |
| Product Type | Basic Line Filter |
| Input Voltage | 3 AC 380ā480 V |
| Frequency | 50/60 Hz |
| Compatible Drive Rating | 80 kW |
| System Family | SINAMICS S120 |
| Design Format | Booksize |
āļø Main Functions
- Reduces conducted electromagnetic interference (EMI)
- Suppresses electrical noise on the mains supply
- Improves EMC compliance
- Enhances power quality and system reliability
- Protects sensitive automation and control equipment
- Supports stable operation of SINAMICS drive systems
- Reduces interference with nearby electronic devices
š Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Basic Line Filter |
| Supply Voltage | 3 AC 380ā480 V |
| Frequency | 50/60 Hz |
| Compatible Power Rating | 80 kW |
| System Family | SINAMICS S120 |
| Mounting Design | Booksize |
| Cooling Method | Passive |
š Typical Applications
- CNC milling and turning machines
- SINUMERIK-controlled machine tools
- Robotics and automation systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Conveyor systems
- Multi-axis servo drive installations
ā Key Benefits
- Improved EMC performance
- Reduced electrical noise and harmonics
- Enhanced drive system reliability
- Compliance with industrial EMC standards
- Compact Booksize design
- Easy integration into SINAMICS S120 systems
- Reliable operation in demanding industrial environments
