Description

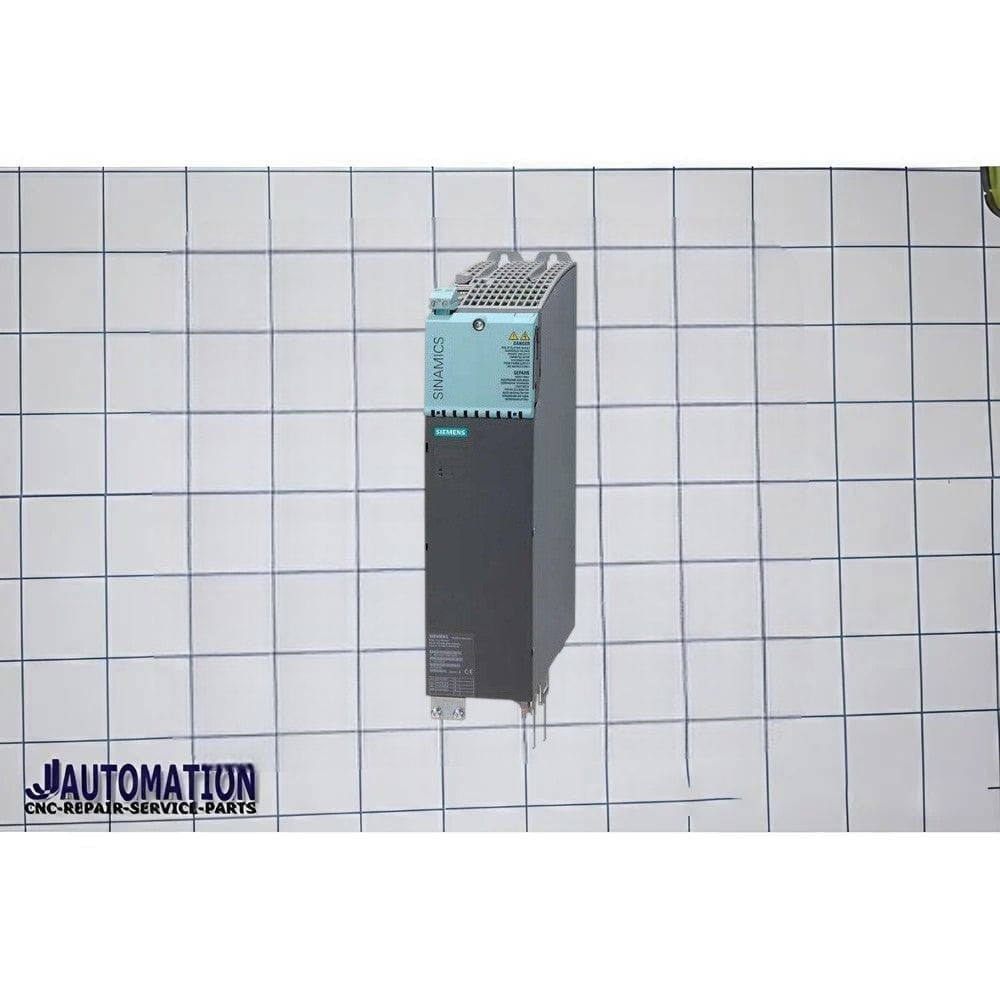

Siemens 6SL3130-1TE22-0AA0 Description
The Siemens 6SL3130-1TE22-0AA0 is a SINAMICS S120 Basic Line Module (BLM) designed to convert three-phase AC mains power into a regulated DC link voltage for SINAMICS S120 drive systems. Operating on 3 AC 380–480 V, 50/60 Hz, the module delivers a 600 V DC link output with a rated power of 20 kW, providing a reliable power supply for connected Motor Modules. The compact Booksize design with internal air cooling allows efficient installation in industrial control cabinets while minimizing space requirements.
As part of the SINAMICS S120 modular drive platform, the Basic Line Module serves as the central power supply unit, generating the DC bus voltage required by servo and spindle drives. Unlike Active Line Modules, the Basic Line Module is designed for non-regenerative applications, making it a cost-effective solution for machinery that does not require energy feedback to the mains. The module integrates seamlessly with SINAMICS components through the DRIVE-CLiQ communication interface, simplifying commissioning and diagnostics.
The 6SL3130-1TE22-0AA0 is widely used in CNC machine tools, packaging machinery, material handling systems, textile equipment, printing machines, and industrial automation applications requiring dependable DC link power generation and high-performance motion control.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3130-1TE22-0AA0 |
| Product Type | Basic Line Module (BLM) |
| Design Format | Booksize |
| Input Voltage | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| DC Link Voltage | 600 V DC |
| Rated Power | 20 kW |
| Cooling Method | Internal Air Cooling |
⚙️ Main Functions
- Converts three-phase AC power into DC link voltage
- Supplies DC power to SINAMICS S120 Motor Modules
- Supports servo and spindle drive systems
- Provides stable DC bus voltage for motion control
- Enables compact multi-axis drive configurations
- Supports DRIVE-CLiQ communication and diagnostics
- Optimized for non-regenerative applications
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Basic Line Module |
| Input Voltage | 3 AC 380–480 V ±10% |
| Frequency Range | 50/60 Hz |
| Rated Power | 20 kW |
| DC Link Voltage | 600 V DC |
| Rated DC Link Current | 34 A |
| Design | Booksize |
| Cooling | Internal Air Cooling |
| Protection Class | IP20 |
| Communication | DRIVE-CLiQ |
🧠 System Role
In a SINAMICS S120 architecture:
3-Phase AC Mains
→ 6SL3130-1TE22-0AA0 Basic Line Module
→ 600 V DC Link
→ Motor Modules
→ Servo Motors / Spindle Motors
The Basic Line Module converts incoming AC power into the DC link voltage required by SINAMICS S120 Motor Modules, providing the foundation for reliable motion-control operation.
🏭 Typical Applications
- CNC machining centers
- Machine tools
- Packaging machinery
- Material handling systems
- Printing and converting equipment
- Textile machinery
- Assembly automation systems
- Conveyor systems
- Industrial production lines
⭐ Key Benefits
- Reliable AC-to-DC power conversion
- Compact Booksize construction
- Cost-effective solution for non-regenerative systems
- Stable 600 V DC link output
- Easy integration with SINAMICS S120 components
- Simplified commissioning through DRIVE-CLiQ
- Reduced cabinet space requirements
- Proven Siemens industrial drive technology
