Siemens 6SL3130-1TE31-0AA0 Description

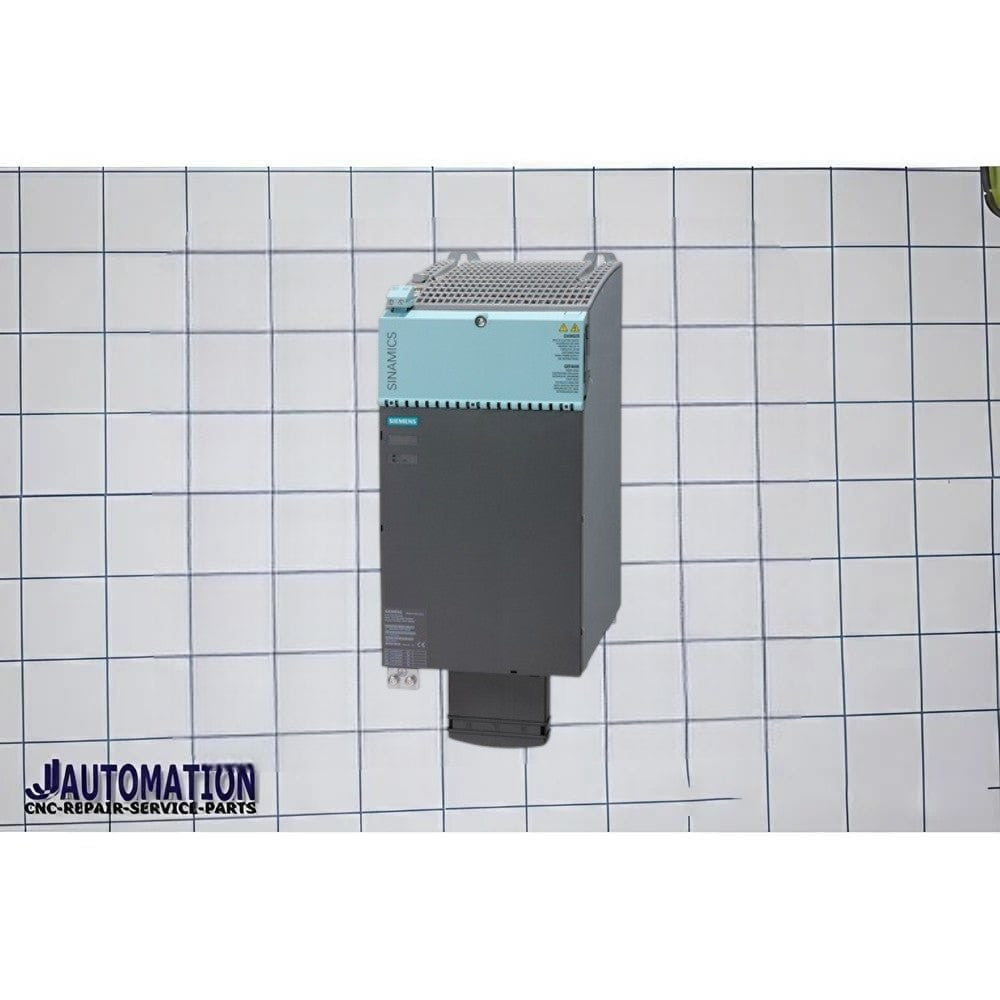

The Siemens 6SL3130-1TE31-0AA0 is a SINAMICS S120 Basic Line Module (BLM) designed to convert three-phase AC mains power into a stable DC link voltage for SINAMICS S120 drive systems. Operating on 3 AC 380–480 V, 50/60 Hz, the module delivers a 600 V DC output with a rated power of 100 kW, providing a reliable DC power source for connected Motor Modules in high-performance motion-control applications.
Built in the compact Booksize format with internal air cooling, the 6SL3130-1TE31-0AA0 enables efficient cabinet integration while maintaining excellent thermal performance. As a Basic Line Module, it is intended for non-regenerative applications, where braking energy is dissipated through external braking resistors rather than being fed back into the mains supply. The module integrates seamlessly with the SINAMICS S120 platform via the DRIVE-CLiQ communication interface, enabling simplified commissioning, diagnostics, and system configuration.
The 6SL3130-1TE31-0AA0 is widely used in CNC machine tools, metalworking equipment, packaging machinery, material handling systems, printing presses, textile machinery, and other industrial automation applications requiring a dependable DC link power supply for servo and spindle drive systems.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3130-1TE31-0AA0 |
| Product Type | Basic Line Module (BLM) |
| Design Format | Booksize |
| Input Voltage | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| DC Link Voltage | 600 V DC |
| Rated Power | 100 kW |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
⚙️ Main Functions
- Converts three-phase AC power into DC link voltage
- Supplies power to SINAMICS S120 Motor Modules
- Provides stable 600 V DC bus voltage
- Supports high-power servo and spindle drive systems
- Enables compact multi-axis drive configurations
- Supports DRIVE-CLiQ communication and diagnostics
- Designed for non-regenerative applications
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Basic Line Module |
| Input Voltage | 3 AC 380–480 V ±10% |
| Frequency Range | 50/60 Hz |
| Rated Power | 100 kW |
| DC Link Voltage | 600 V DC |
| Rated DC Link Current | Approx. 167 A |
| Design | Booksize |
| Cooling | Internal Air Cooling |
| Protection Rating | IP20 |
| Communication | DRIVE-CLiQ |
🧠 System Role
In a SINAMICS S120 architecture:
3-Phase AC Mains
→ 6SL3130-1TE31-0AA0 Basic Line Module
→ 600 V DC Link
→ Motor Modules
→ Servo Motors / Spindle Motors
The Basic Line Module serves as the central AC-to-DC power conversion stage, supplying the DC bus voltage required for reliable operation of connected SINAMICS S120 Motor Modules.
