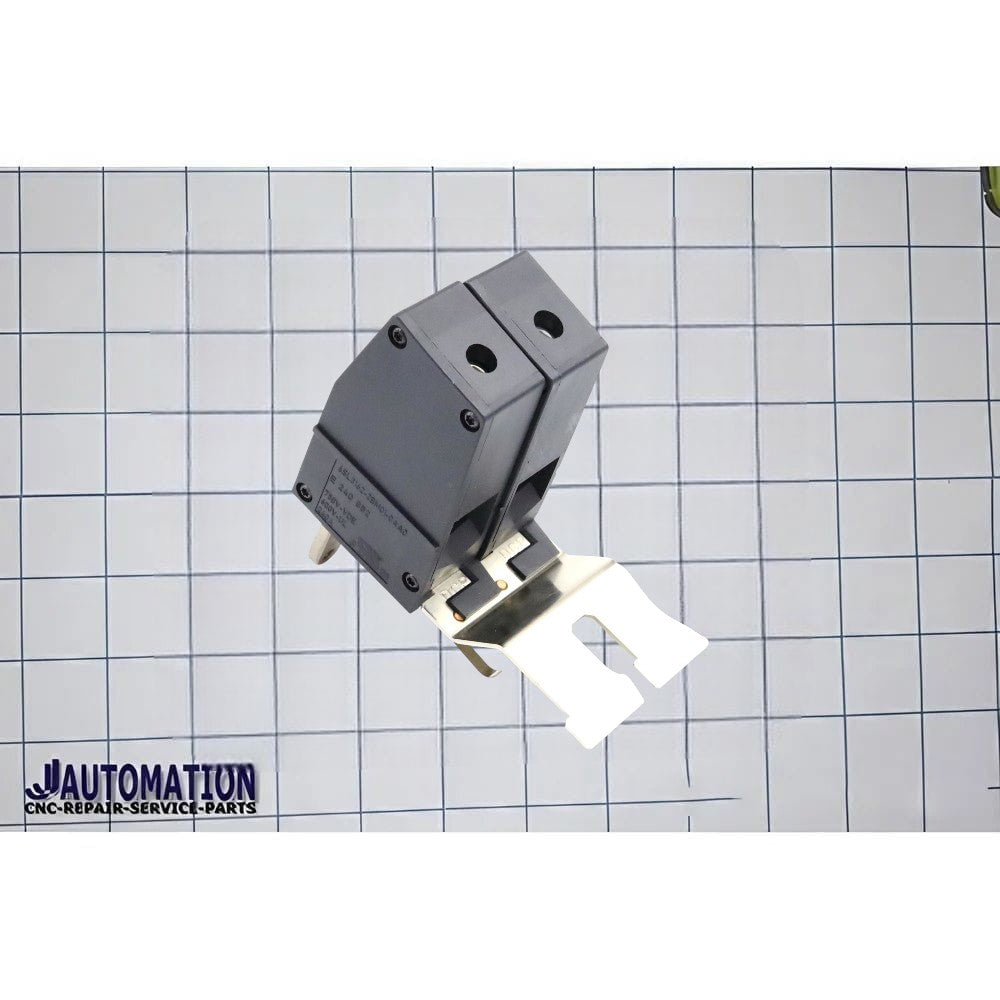

SINAMICS DC Link Adapter 6SL3162-2BM01-0AA0

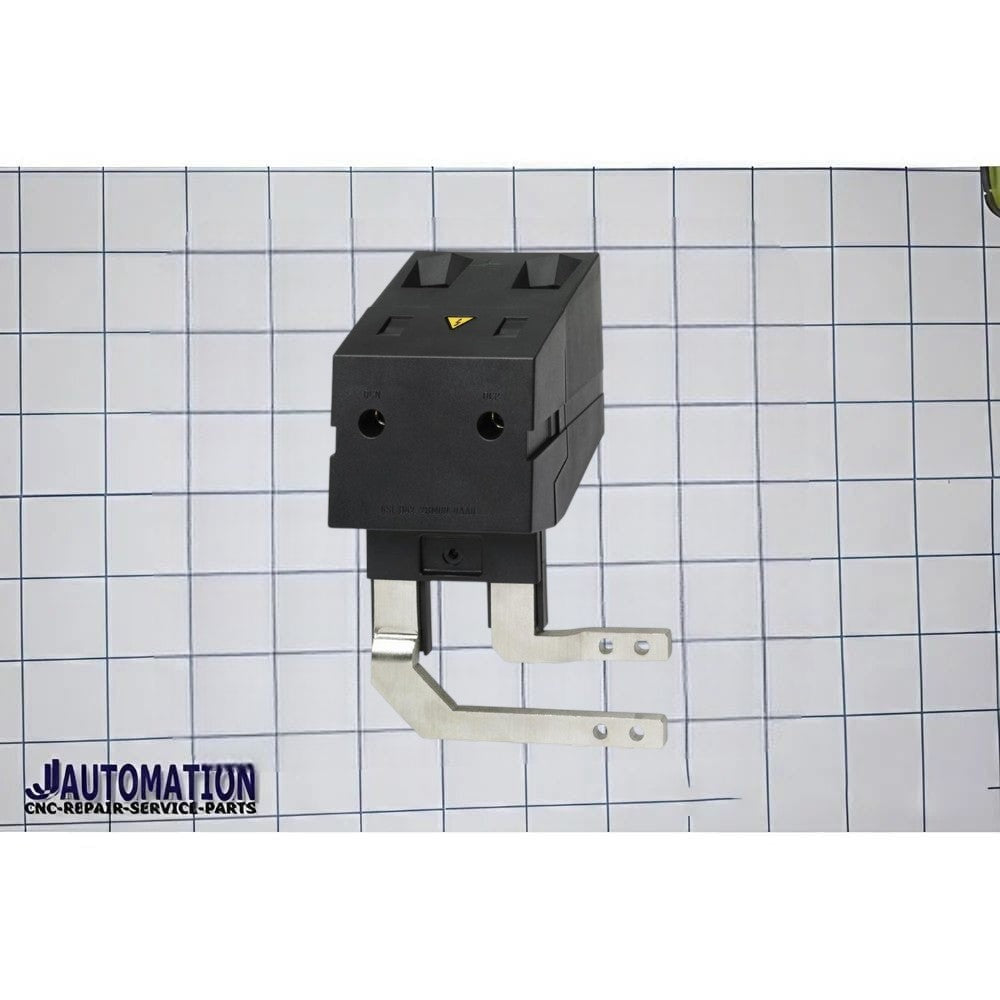

Siemens 6SL3162-2BM01-0AA0 – SINAMICS S120 DC Link Rectifier Adapter

The Siemens 6SL3162-2BM01-0AA0 is a SINAMICS S120 DC Link Rectifier Adapter designed for direct DC infeed applications in SINAMICS S120 Booksize drive systems. It enables the connection of external DC power sources to the DC link of larger SINAMICS Line Modules and Motor Modules, providing a reliable interface for common DC bus architectures.

🔧 Basic Identification

⚙️ Main Functions

The 6SL3162-2BM01-0AA0 is designed to:

• Connect external DC power supplies to the SINAMICS DC link
• Support common DC bus drive systems
• Simplify DC power distribution within SINAMICS S120 installations
• Provide secure high-current terminal connections
• Enable flexible system configurations using external rectifiers or DC sources
• Facilitate integration of large multi-axis drive systems

📋 Technical Specifications

🧠 System Role

In a SINAMICS S120 architecture:

External DC Source / Rectifier
→ 6SL3162-2BM01-0AA0 Adapter
→ SINAMICS S120 Line or Motor Modules
→ Servo Motors

The adapter serves as a DC bus connection interface, allowing external DC voltage to be distributed safely to SINAMICS drive components.

🔍 Key Features

• Designed for SINAMICS S120 Booksize systems
• Supports direct DC infeed architectures
• High-current screw terminals (35–95 mm²)
• Compatible with large Line and Motor Modules
• Simplifies DC link wiring
• Reliable industrial-grade connection solution
• Suitable for common DC bus applications

🏭 Typical Applications

• CNC machine tools
• Robotics systems
• Packaging machinery
• Printing and converting equipment
• Material handling systems
• Multi-axis servo drive installations
• Industrial automation systems

🧾 Short Website Description

The Siemens 6SL3162-2BM01-0AA0 is a SINAMICS S120 DC Link Rectifier Adapter designed for direct DC infeed applications in Booksize drive systems. Featuring high-current screw terminals for 35–95 mm² conductors, it enables secure DC bus connections for 150 mm, 200 mm, and 300 mm Line and Motor Modules, making it ideal for CNC machines, robotics, and industrial automation systems requiring reliable DC power distribution.
