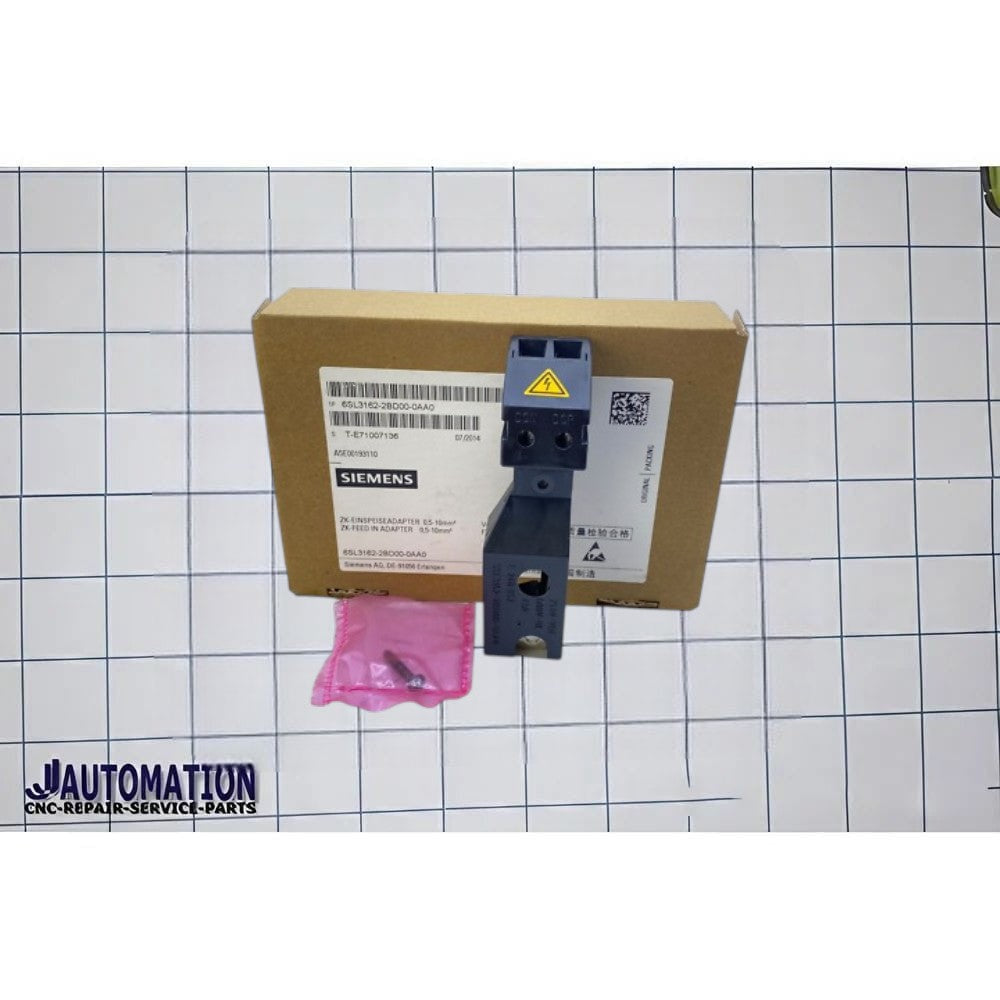

SINAMICS DC Link Rectifier Adapter 6SL3162-2BD00-0AA0

The Siemens 6SL3162-2BD00-0AA0 is a SINAMICS S120 DC Link Rectifier Adapter designed for direct DC infeed applications in SINAMICS S120 Booksize drive systems. It is an accessory used to connect an external DC source directly to the DC link of compatible Line Modules and Motor Modules.

🔧 Basic Identification

📌 Siemens officially describes the product as:

"SINAMICS DC LINK RECTIFIER ADAPTER FOR DIRECT INFEED SCREW TERMINALS 0.5-10 MM² FOR 50 AND 100 MM LINE/MOTOR MODULES IN BOOKSIZE FORMAT."

⚙️ Main Functions

The 6SL3162-2BD00-0AA0 is designed to:

• Provide direct DC link power connections
• Connect external rectifiers or DC power supplies to SINAMICS drives
• Support common DC bus architectures
• Simplify wiring of Booksize power modules
• Enable individual component DC supply arrangements
• Facilitate integration of external DC energy systems

📋 Technical Specifications

Technical data is listed in Siemens Industry Mall product documentation.

🧠 System Role

In a SINAMICS S120 system:

External DC Source / Rectifier
→ 6SL3162-2BD00-0AA0 Adapter
→ SINAMICS S120 Line or Motor Module
→ Motor Control System

The adapter acts as a DC link interface, allowing direct connection of external DC voltage to compatible SINAMICS modules.

🔍 Installation Notes

According to Siemens documentation:

• The adapter is best suited for supplying individual components directly.
• When supplying multiple components, it must be installed on the module located at the far right of the drive lineup.
• Cable sizing must be selected according to the total DC link current.
• Appropriate fusing of connection cables is required.
• It is not suitable for modules equipped with reinforced DC link busbars.

🏭 Typical Applications

• CNC machine tools
• Multi-axis servo systems
• Robotics systems
• Packaging machinery
• Material handling equipment
• Common DC bus drive systems
• Industrial automation panels

🧾 Short Website Description

The Siemens 6SL3162-2BD00-0AA0 is a SINAMICS S120 DC Link Rectifier Adapter for direct DC infeed applications. Designed for 50 mm, 75 mm, and 100 mm Booksize Line and Motor Modules, it provides secure DC link connections through 0.5–10 mm² screw terminals, making it ideal for CNC machines, robotics, servo drive systems, and industrial automation applications.
