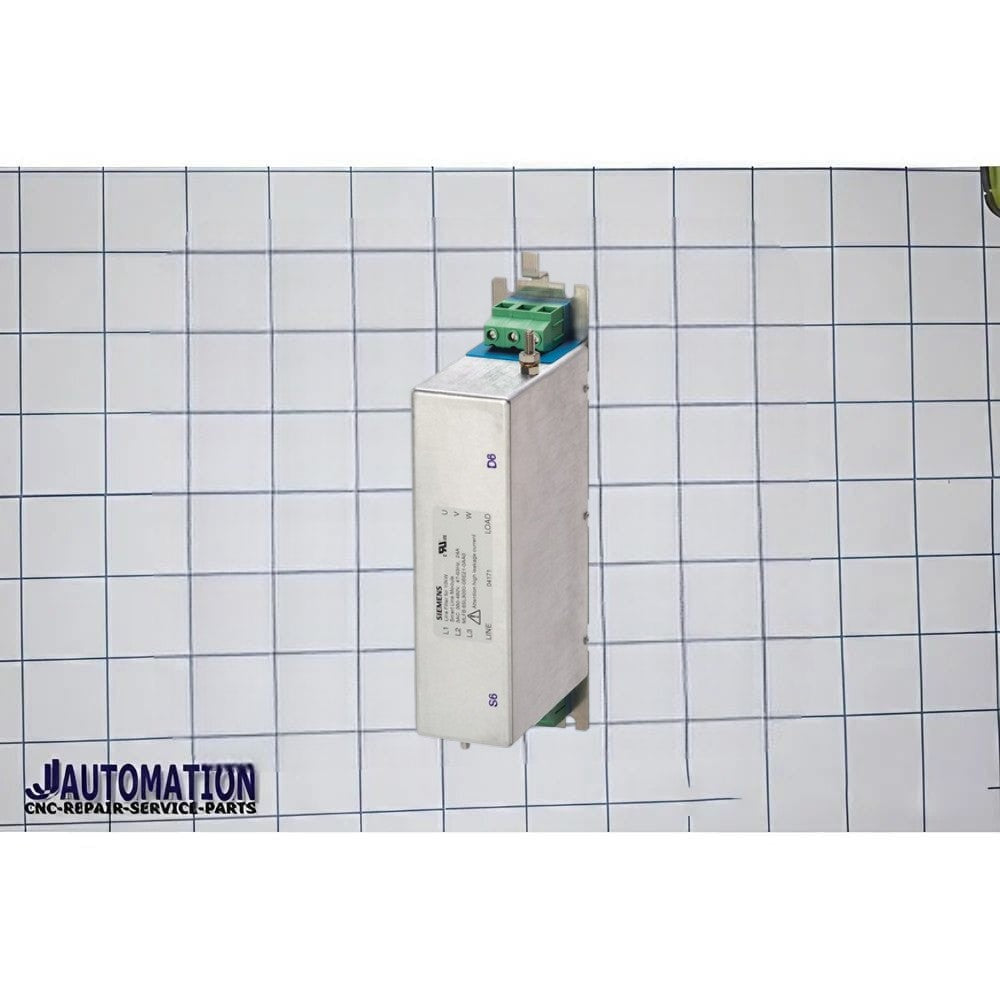

Siemens 6SL3000-0HE15-0AA0 Description
The Siemens 6SL3000-0HE15-0AA0 is a SINAMICS S120 Line Filter designed for use with 5 kW Smart Line Modules (SLM) operating on 3-phase 380–480 V AC, 50/60 Hz power systems. Installed between the mains supply and the Smart Line Module, the filter reduces conducted electromagnetic interference (EMI), suppresses line disturbances, and improves electromagnetic compatibility (EMC) performance. It helps ensure reliable operation of SINAMICS S120 drive systems in industrial environments.
As part of the SINAMICS S120 power infrastructure, the line filter minimizes electrical noise transmitted back into the mains network, helping protect sensitive control equipment and supporting compliance with industrial EMC standards. By reducing conducted emissions and improving power quality, it enhances system reliability and operational stability.
The 6SL3000-0HE15-0AA0 is commonly used in CNC machine tools, robotics, packaging machinery, material handling systems, printing equipment, and other industrial automation applications utilizing SINAMICS S120 Smart Line Modules.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3000-0HE15-0AA0 |
| Product Type | Line Filter |
| Product Family | Line Filters for Smart Line Modules |
| Compatible Module Rating | 5 kW Smart Line Module |
| Input Voltage | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| Rated Current | 12 A |
| Protection Class | IP20 |
⚙️ Main Functions
- Reduces conducted electromagnetic interference (EMI)
- Improves electromagnetic compatibility (EMC)
- Suppresses line-side electrical noise
- Protects sensitive control and automation equipment
- Enhances power quality and system reliability
- Helps meet industrial EMC requirements
- Supports stable operation of SINAMICS S120 drive systems
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Line Filter |
| Compatible Module | 5 kW Smart Line Module |
| Supply Voltage | 3 AC 380–480 V |
| Frequency Range | 50/60 Hz |
| Rated Current | 12 A |
| Net Weight | Approx. 2.8 kg |
| Protection Rating | IP20 |
| Product Lifecycle | Active Product |
🧠 System Role
In a SINAMICS S120 architecture:
3-Phase AC Mains
→ 6SL3000-0HE15-0AA0 Line Filter
→ 5 kW Smart Line Module
→ DC Link
→ Motor Modules
→ Servo Motors / Spindle Motors
The line filter acts as the primary EMC filtering stage, reducing conducted emissions and improving the quality of power supplied to the drive system.
🏭 Typical Applications
- CNC machining centers
- SINUMERIK-controlled machine tools
- Robotics systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Conveyor automation
- Multi-axis servo drive installations
⭐ Key Benefits
- Improved EMC compliance
- Reduced electrical noise and interference
- Enhanced protection for automation equipment
- Increased system reliability
- Improved power quality
- Reduced risk of nuisance faults
- Optimized for SINAMICS S120 Smart Line Modules
🧾 Short Website Description
The Siemens 6SL3000-0HE15-0AA0 is a SINAMICS S120 Line Filter designed for 5 kW Smart Line Modules operating on 380–480 V three-phase power systems. It reduces electromagnetic interference, improves EMC compliance, and enhances power quality, helping ensure reliable operation of CNC machines, robotics, packaging equipment, and industrial automation systems.
