Siemens 6SL3000-0CE15-0AA0 Description

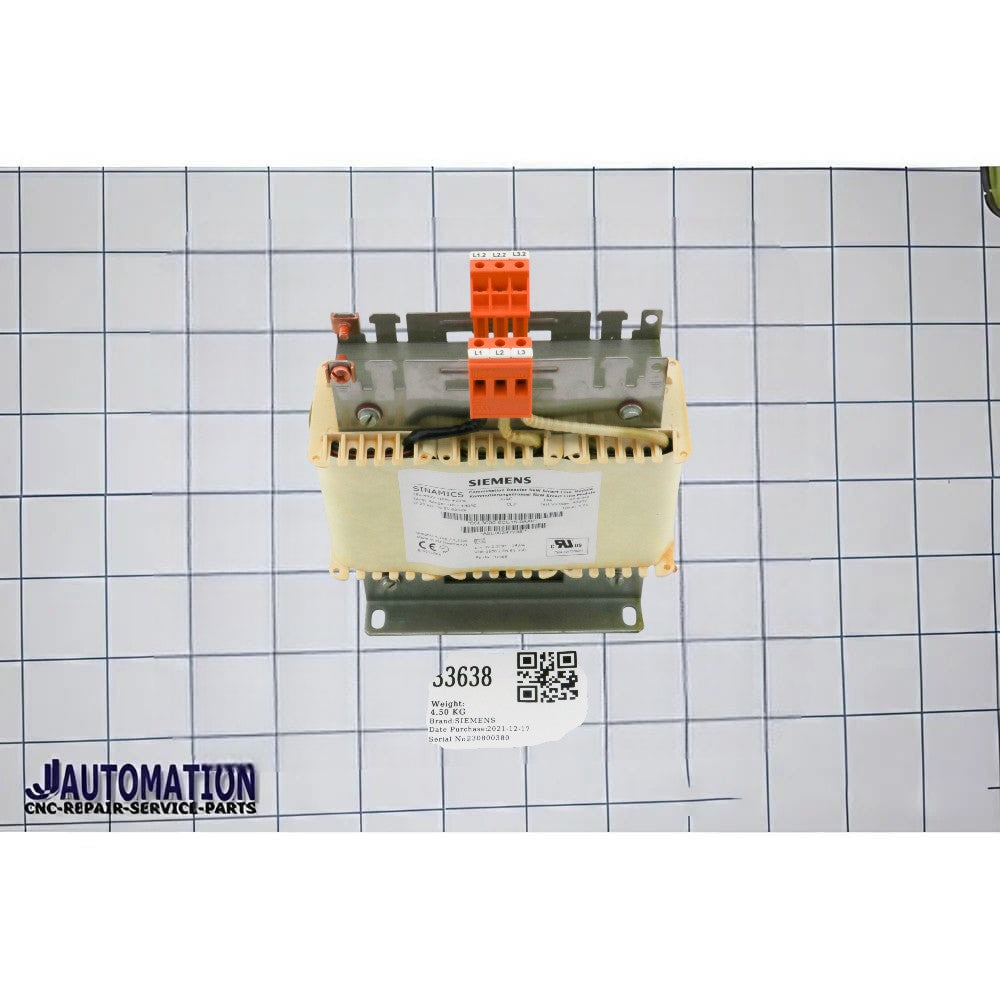

The Siemens 6SL3000-0CE15-0AA0 is a SINAMICS S120 Line Reactor specifically designed for use with 5 kW Smart Line Modules (SLM). Operating on 3-phase 380–480 V AC, 50/60 Hz power systems, the reactor is installed on the line side of the drive system to reduce harmonic distortion, limit inrush currents, suppress voltage transients, and improve overall power quality. It plays a critical role in protecting drive components and enhancing the reliability of industrial motion-control applications.
As part of the SINAMICS S120 drive platform, the line reactor helps reduce stress on power semiconductors, capacitors, and rectifier circuits while improving electromagnetic compatibility (EMC). By smoothing the incoming power supply and reducing line disturbances, it contributes to longer equipment life and more stable drive operation.
The 6SL3000-0CE15-0AA0 is commonly used in CNC machine tools, robotics, packaging machinery, printing equipment, material handling systems, and other industrial automation applications utilizing SINAMICS S120 Smart Line Modules.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3000-0CE15-0AA0 |
| Product Type | Line Reactor |
| Application | Smart Line Module (SLM) |
| Compatible Power Rating | 5 kW |
| Input Voltage | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| Rated Current | 14 A |
| System Family | SINAMICS S120 |
⚙️ Main Functions
- Reduces harmonic distortion on the mains supply
- Limits input current peaks and inrush currents
- Protects Smart Line Modules from voltage transients
- Improves EMC performance
- Enhances power quality and system stability
- Reduces electrical stress on drive components
- Extends service life of connected equipment
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Line Reactor |
| Compatible Module | SINAMICS S120 Smart Line Module |
| Power Rating | 5 kW |
| Rated Current | 14 A |
| Input Voltage | 3 AC 380–480 V |
| Frequency Range | 50/60 Hz |
| Mounting Type | Panel / Cabinet Mounting |
| Weight | Approx. 4.1–4.4 kg |
🧠 System Role
In a SINAMICS S120 architecture:
3-Phase AC Mains
→ 6SL3000-0CE15-0AA0 Line Reactor
→ Smart Line Module (5 kW)
→ DC Link
→ Motor Modules
→ Servo Motors / Spindle Motors
The line reactor acts as the first line-side conditioning component, improving power quality and protecting the drive system from electrical disturbances.
🏭 Typical Applications
- CNC machining centers
- SINUMERIK-controlled machine tools
- Robotics systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Conveyor automation
- Multi-axis servo drive installations
⭐ Key Benefits
- Improved power quality
- Reduced harmonic distortion
- Enhanced protection for Smart Line Modules
- Increased system reliability
- Better EMC compliance
- Reduced stress on electrical components
- Long-term operational stability
