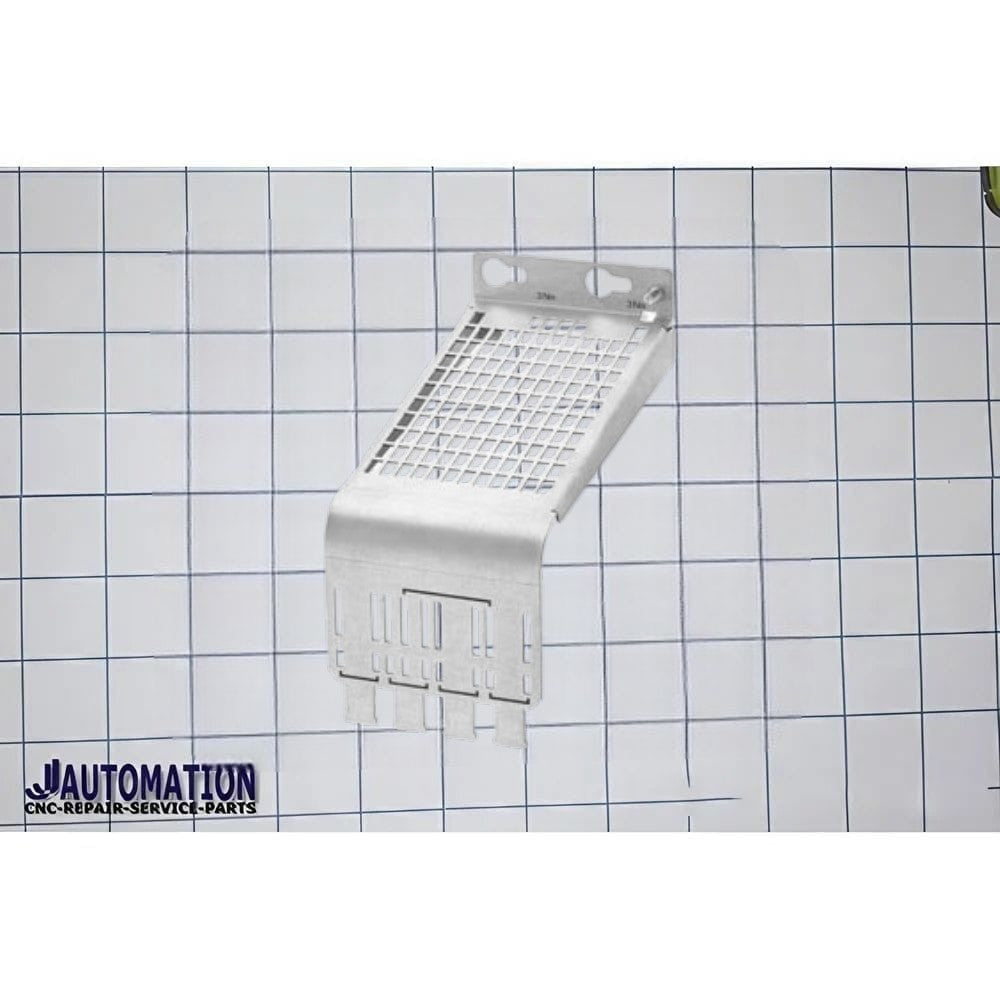

Siemens 6SL3163-1AH00-0AA0 – SINAMICS S120 Shield Connection Sheet for Active Interface Module 55 kW
The Siemens 6SL3163-1AH00-0AA0 is a SINAMICS S120 Shield Connection Sheet designed specifically for 55 kW Active Interface Modules (AIM). It is an EMC accessory that provides a dedicated grounding and shield termination point for power, motor, and control cable shields, helping to reduce electromagnetic interference (EMI) and ensure reliable operation of SINAMICS drive systems.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3163-1AH00-0AA0 |
| Product Type | Shield Connection Sheet |
| Application | Active Interface Module (AIM) |
| Compatible Power Rating | 55 kW |
| System Family | SINAMICS S120 |
| Product Lifecycle | Active Product |
📌 Siemens identifies this accessory as:
"SINAMICS Shield Connection Sheet for Active Interface Module 55 kW."
⚙️ Main Functions
The 6SL3163-1AH00-0AA0 is designed to:
- Provide secure termination of cable shields
- Improve electromagnetic compatibility (EMC)
- Reduce conducted and radiated electrical noise
- Ensure proper grounding of shielded cables
- Support reliable communication and drive performance
- Simplify control cabinet wiring and installation
- Help meet industrial EMC requirements
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Shield Connection Sheet |
| Compatible Module | Active Interface Module (AIM) |
| Compatible Power Rating | 55 kW |
| System Family | SINAMICS S120 |
| Net Weight | Approx. 0.74 kg |
| Country of Origin | Germany |
| GTIN | 4034106440398 |
Technical specifications are listed by Siemens distributors and SINAMICS documentation.
🧠 System Role
In a SINAMICS S120 drive architecture:
Shielded Power & Control Cables
→ 6SL3163-1AH00-0AA0 Shield Connection Sheet
→ 55 kW Active Interface Module
→ Active Line Module & Drive System
The shield connection sheet serves as an EMC grounding interface, ensuring cable screens are properly bonded to the control cabinet ground system, thereby reducing interference and improving system reliability.
🔍 Related Shield Connection Sheets
| Model | Compatible Active Interface Module |
|---|---|
| 6SL3163-1AF00-0AA0 | 36 kW AIM |
| 6SL3163-1AH00-0AA0 | 55 kW AIM |
| 6SL3163-1AM00-0AA0 | 80 kW and 120 kW AIM |
This model is specifically designed for 55 kW Active Interface Modules, while other shield connection sheets are available for different AIM power ratings.
🏭 Typical Applications
- CNC machine tools
- SINUMERIK-controlled systems
- Robotics and automation systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Multi-axis servo drive installations
- Industrial automation control cabinets
🧾 Short Website Description
The Siemens 6SL3163-1AH00-0AA0 is a SINAMICS S120 Shield Connection Sheet designed for 55 kW Active Interface Modules. It provides a secure grounding point for cable shields, helping to reduce electromagnetic interference, improve EMC performance, and ensure reliable operation of CNC machines, servo systems, robotics, and industrial automation applications.
