Product Title

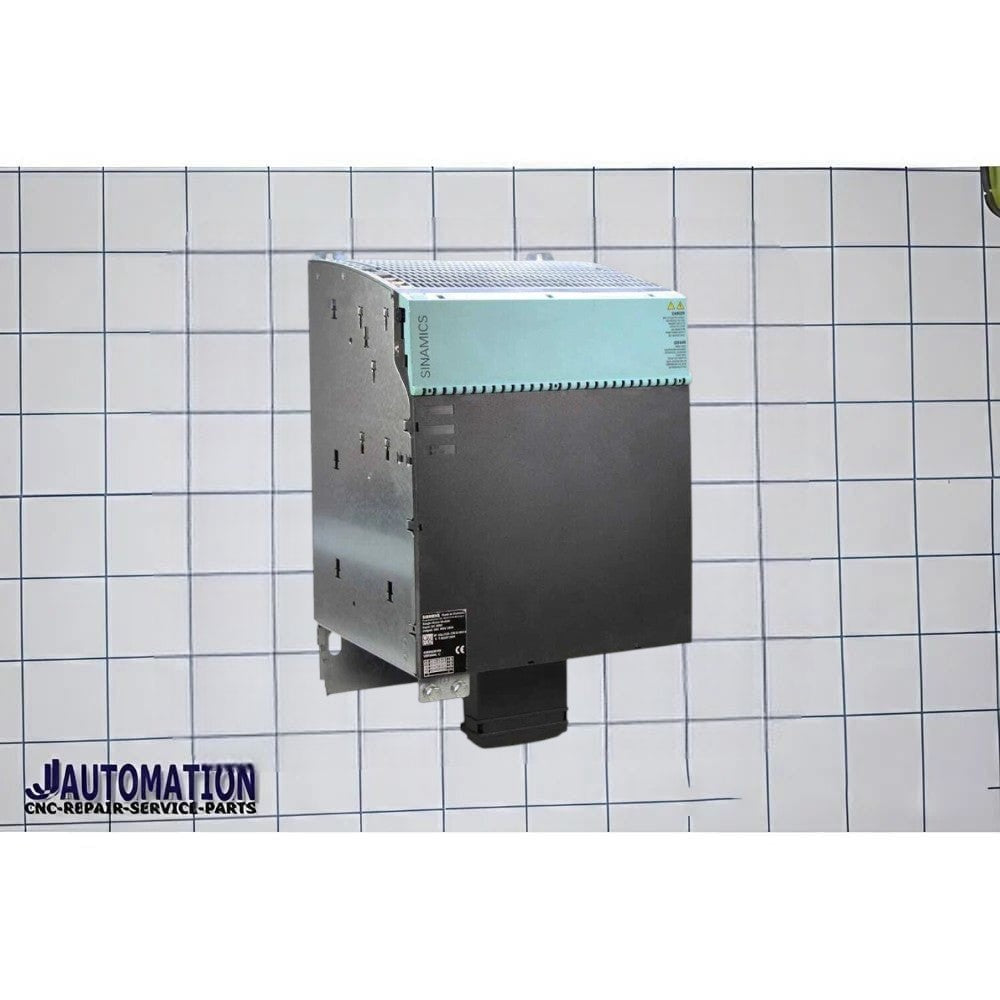

Siemens 6SL3320-1TE32-1AA3 SINAMICS S120 Single Motor Module | 510–720 V DC | 3AC 0–400 V | 210 A
Product Description
The Siemens 6SL3320-1TE32-1AA3 is a SINAMICS S120 Single Motor Module designed for high-performance CNC machines, industrial automation systems, and precision motion control applications. Operating from a 510–720 V DC link, it delivers a 3-phase output voltage of 0–400 V AC with a rated output current of 210 A, making it ideal for controlling servo motors, spindle motors, and asynchronous motors in demanding industrial environments. The module features a chassis frame, internal air cooling, Extended Safety Integrated support, and includes a DRIVE-CLiQ communication cable for seamless integration into Siemens SINAMICS S120 drive systems.
Built for continuous industrial operation, the 6SL3320-1TE32-1AA3 provides excellent overload capability, fast dynamic response, and precise motor control. Its robust design and advanced safety features make it an excellent choice for OEM machine builders, manufacturing plants, and factory automation systems.
Key Features
- Genuine Siemens SINAMICS S120 Single Motor Module
- Part Number: 6SL3320-1TE32-1AA3
- DC Link Voltage: 510–720 V DC
- Output Voltage: 3AC 0–400 V
- Rated Output Current: 210 A
- Base Load Current (IL): 205 A
- Base Load Current (IH): 178 A
- Maximum Output Current: 307 A
- Rated Power: 110 kW (IL) / 90 kW (IH)
- Chassis frame construction
- Internal air cooling
- Integrated DRIVE-CLiQ communication
- Supports Extended Safety Integrated
- IP20 protection
- Optimized for Siemens SINAMICS S120 systems
- High-performance servo and spindle motor control
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3320-1TE32-1AA3 |
| Product Family | SINAMICS S120 |
| Product Type | Single Motor Module |
| DC Link Voltage | 510–720 V DC |
| Output Voltage | 3AC 0–400 V |
| Rated Output Current | 210 A |
| Base Load Current (IL) | 205 A |
| Base Load Current (IH) | 178 A |
| Maximum Output Current | 307 A |
| Rated Power (IL) | 110 kW |
| Rated Power (IH) | 90 kW |
| Output Frequency | 0–550 Hz |
| Cooling Method | Internal Air Cooling |
| Frame Size | Chassis |
| Protection Class | IP20 |
| Communication | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Compatible Drive System | Siemens SINAMICS S120 |
Note: Technical specifications may vary depending on system configuration and operating conditions. Refer to the official Siemens documentation before installation.
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Turning Centers
- High-Power Servo Drive Systems
- Main Spindle Drives
- Metal Processing Machinery
- Industrial Automation Systems
- Material Handling Equipment
- Packaging Machinery
- Printing Machinery
- OEM Machine Building
