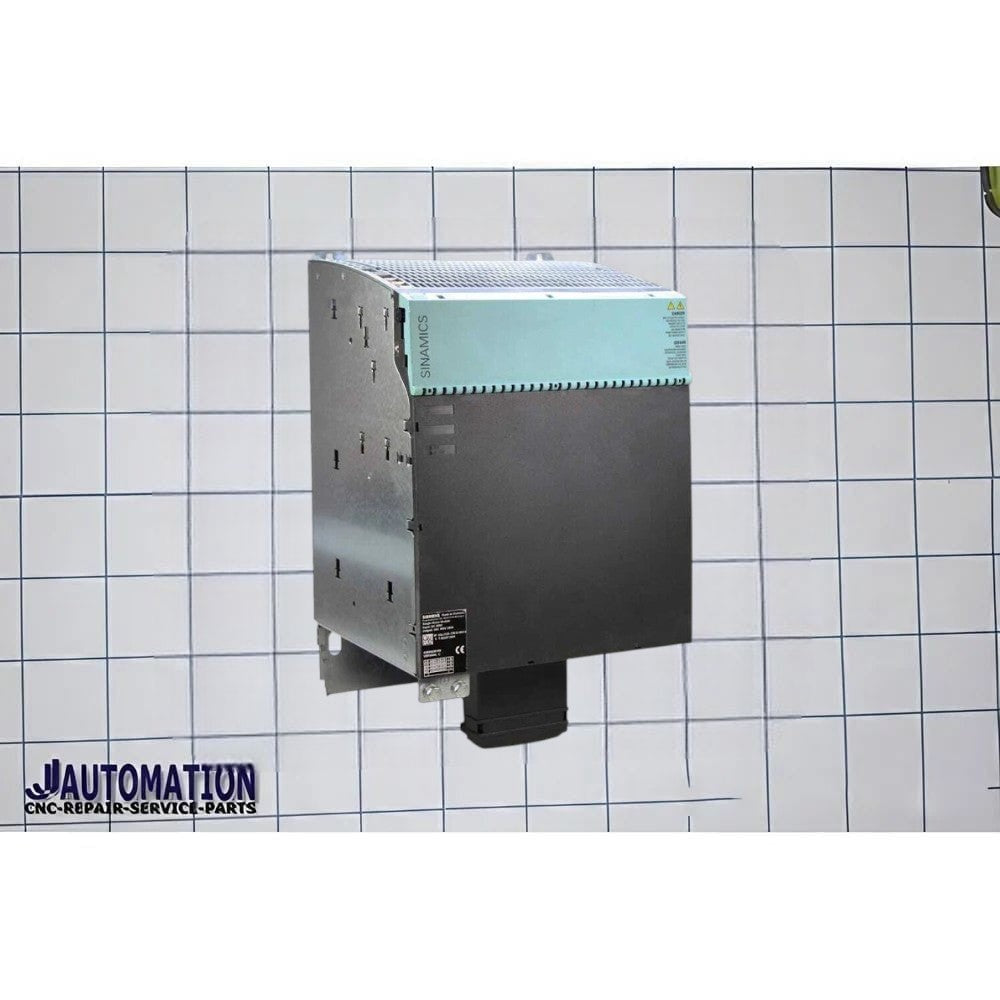

Siemens 6SL3320-1TE38-0AA3 SINAMICS S120 Single Motor Module | 510–720 V DC | 3AC 0–480 V | 800 A

Product Description

The Siemens 6SL3320-1TE38-0AA3 is a high-capacity SINAMICS S120 Single Motor Module designed for heavy-duty CNC machine tools, large industrial automation systems, and high-performance motion control applications. Operating from a 510–720 V DC link, it delivers a 3-phase output voltage of 0–480 V AC with a rated output current of 800 A, making it suitable for controlling large servo motors, spindle motors, and asynchronous motors in demanding industrial environments.

Featuring a built-in IP00 chassis design with internal air cooling, the module provides excellent thermal management, high overload capability, and precise motor control. It includes DRIVE-CLiQ communication for seamless integration with Siemens SINAMICS S120 drive systems and supports Extended Safety Integrated functions to enhance machine safety and reliability. The 800 A model fits between the 745 A and 840 A variants in the SINAMICS S120 high-power motor module range.

Key Features

• Genuine Siemens SINAMICS S120 Single Motor Module
• Part Number: 6SL3320-1TE38-0AA3
• DC Link Voltage: 510–720 V DC
• Output Voltage: 3AC 0–480 V
• Rated Output Current: 800 A
• Built-in chassis design
• Internal air cooling
• Integrated DRIVE-CLiQ communication
• Supports Extended Safety Integrated
• High-performance servo and spindle motor control
• Designed for continuous industrial operation
• Optimized for Siemens SINAMICS S120 drive systems
• Suitable for high-power CNC and industrial automation

Technical Specifications

Note: The exact electrical ratings and dimensions may vary depending on the specific hardware version and firmware revision. Refer to the official Siemens documentation for installation and commissioning details.

Applications

• CNC Machining Centers
• CNC Milling Machines
• CNC Turning Centers
• Heavy-Duty Servo Drive Systems
• High-Power Spindle Drives
• Metal Processing Machinery
• Steel Processing Equipment
• Material Handling Systems
• Mining Equipment
• Packaging Machinery
• Heavy Industrial Automation
• OEM Machine Building
