Siemens SINAMICS S120 – 6SL3320-1TE41-0AA3 Shopify Product Listing
Product Title

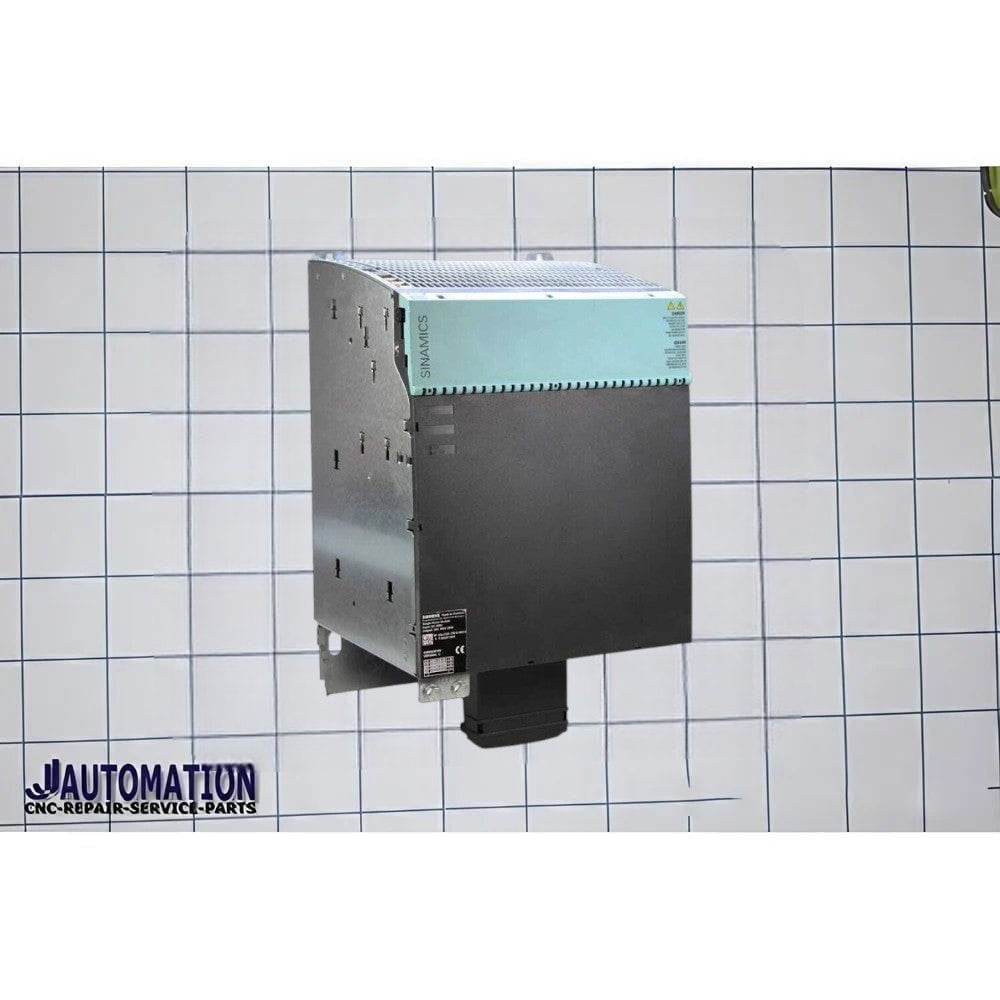

Siemens 6SL3320-1TE41-0AA3 SINAMICS S120 Single Motor Module | 510–720 V DC | 3AC 0–480 V | 985 A | 560 kW
Product Description
The Siemens 6SL3320-1TE41-0AA3 is a high-power SINAMICS S120 Single Motor Module engineered for the most demanding CNC machine tools, heavy industrial automation systems, steel processing, mining, and high-performance motion control applications. Designed to operate with a 510–720 V DC input, it delivers a 3-phase 0–480 V AC output with a rated output current of 985 A and a type rating of 560 kW, making it ideal for driving large servo motors, spindle motors, and asynchronous motors in continuous industrial operation.
Built as a built-in IP00 unit with internal air cooling, the 6SL3320-1TE41-0AA3 offers exceptional overload capability, high efficiency, and precise motor control. It includes integrated DRIVE-CLiQ communication for seamless integration with Siemens SINAMICS S120 drive systems and supports Extended Safety Integrated functions, ensuring enhanced machine safety and operational reliability.
Key Features
- Genuine Siemens SINAMICS S120 Single Motor Module
- Part Number: 6SL3320-1TE41-0AA3
- Input Voltage: 510–720 V DC
- Output Voltage: 3AC 0–480 V
- Rated Output Current: 985 A
- Base Load Current (IL): 960 A
- Base Load Current (IH): 860 A
- Maximum Output Current: 1440 A
- Type Rating: 560 kW
- Built-in IP00 construction
- Internal air cooling
- Integrated DRIVE-CLiQ communication cable
- Supports Extended Safety Integrated
- Designed for Siemens SINAMICS S120 drive systems
- High-performance servo, spindle, and asynchronous motor control
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3320-1TE41-0AA3 |
| Product Family | SINAMICS S120 |
| Product Type | Single Motor Module |
| Input Voltage | 510–720 V DC |
| Output Voltage | 3AC 0–480 V |
| Rated Output Current | 985 A |
| Base Load Current (IL) | 960 A |
| Base Load Current (IH) | 860 A |
| Maximum Output Current | 1440 A |
| Type Rating (IL) | 560 kW |
| Type Rating (IH) | 450 kW |
| Output Frequency | 0–550 Hz |
| Cooling Method | Internal Air Cooling |
| Frame Size | JX Built-in Unit |
| Protection Class | IP00 |
| Communication | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Compatible Drive System | Siemens SINAMICS S120 |
Note: Technical specifications may vary depending on system configuration and operating conditions. Refer to the official Siemens documentation before installation and commissioning.
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Turning Centers
- Heavy-Duty Servo Drive Systems
- High-Power Spindle Drives
- Steel Processing Equipment
- Metal Processing Machinery
- Mining Equipment
- Material Handling Systems
- Paper & Pulp Industry
- Heavy Industrial Automation
- OEM Machine Building
