Product Title

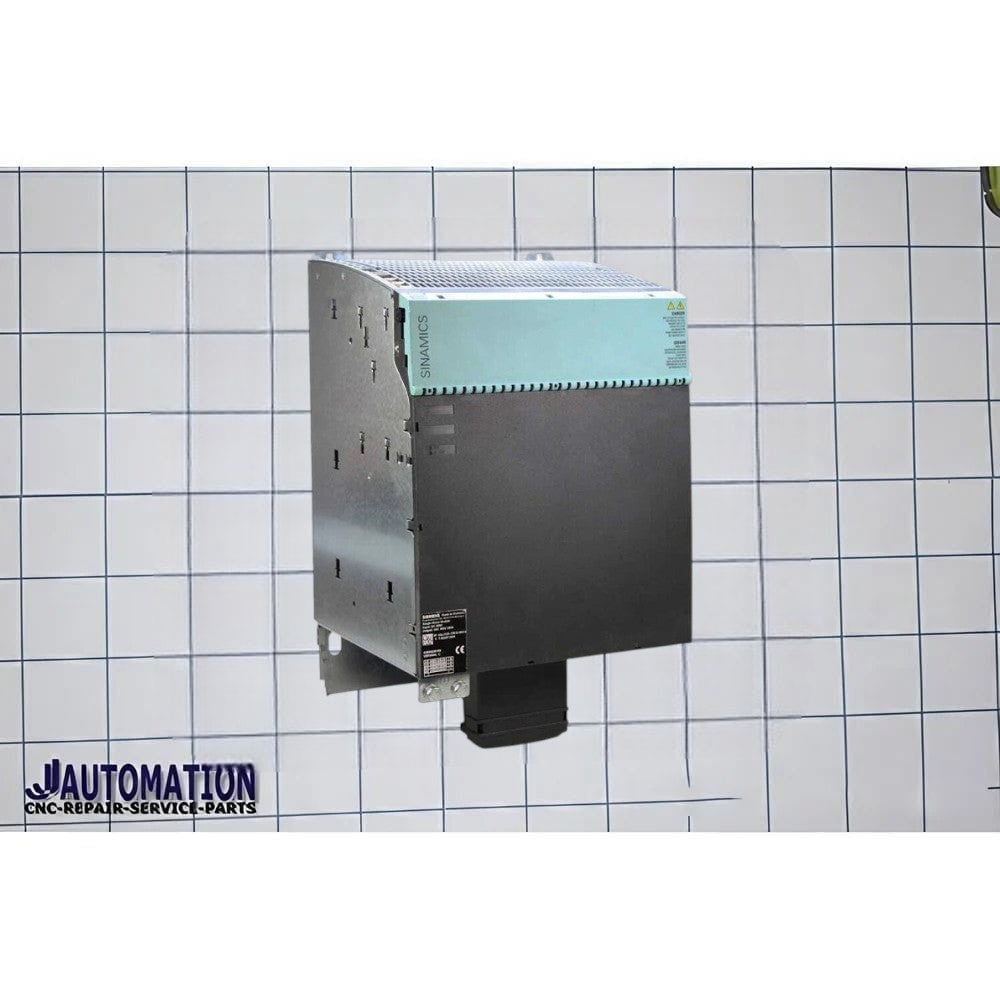

Siemens 6SL3320-1TG34-1AA3 SINAMICS S120 Single Motor Module | 675–1035 V DC | 3AC 500–690 V | 410 A
Product Description
The Siemens 6SL3320-1TG34-1AA3 is a high-power SINAMICS S120 Single Motor Module designed for the most demanding CNC machine tools, heavy industrial automation, metal processing equipment, and high-performance motion control applications. Operating from a 675–1035 V DC link, this module provides a 3-phase output voltage of 0–690 V AC with a rated output current of 410 A, making it ideal for driving large servo motors, spindle motors, and asynchronous motors in continuous-duty industrial environments. It features internal air cooling, an IP00 chassis design, Extended Safety Integrated support, and includes a DRIVE-CLiQ communication cable for seamless integration into Siemens SINAMICS S120 systems.
Designed for maximum reliability and dynamic performance, the 6SL3320-1TG34-1AA3 delivers excellent overload capability, precise motor control, and efficient thermal management. Its robust chassis construction makes it an ideal solution for OEM machine builders, steel plants, heavy machinery, and advanced manufacturing facilities.
Key Features
- Genuine Siemens SINAMICS S120 Single Motor Module
- Part Number: 6SL3320-1TG34-1AA3
- DC Link Voltage: 675–1035 V DC
- Output Voltage: 3AC 0–690 V
- Rated Output Current: 410 A
- Base Load Current (IL): 400 A
- Base Load Current (IH): 367 A
- Maximum Output Current: 600 A
- Rated Power: 400 kW (IL) / 315 kW (IH)
- Chassis frame (HX)
- Internal air cooling
- IP00 protection
- Integrated DRIVE-CLiQ communication cable
- Supports Extended Safety Integrated
- Optimized for Siemens SINAMICS S120 drive systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3320-1TG34-1AA3 |
| Product Family | SINAMICS S120 |
| Product Type | Single Motor Module |
| DC Link Voltage | 675–1035 V DC |
| Output Voltage | 0–690 V AC (3-Phase) |
| Rated Output Current | 410 A |
| Base Load Current (IL) | 400 A |
| Base Load Current (IH) | 367 A |
| Maximum Output Current | 600 A |
| Rated Power (IL) | 400 kW |
| Rated Power (IH) | 315 kW |
| Frame Size | HX Chassis |
| Cooling Method | Internal Air Cooling |
| Protection Class | IP00 |
| Communication | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Output Frequency | 0–550 Hz |
| Max. Shielded Motor Cable | 300 m |
| Max. Unshielded Motor Cable | 450 m |
| Compatible Drive System | Siemens SINAMICS S120 |
Note: Specifications may vary depending on system configuration and application. Refer to the official Siemens documentation before installation.
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Turning Centers
- High-Power Servo Drive Systems
- Heavy-Duty Spindle Drives
- Steel Processing Equipment
- Metal Processing Machinery
- Heavy Industrial Automation
- Material Handling Systems
- Mining Equipment
- OEM Machine Building
