Description
Siemens SINAMICS S120 – 6SL3320-1TG35-8AA3 Shopify Product Listing
Product Title

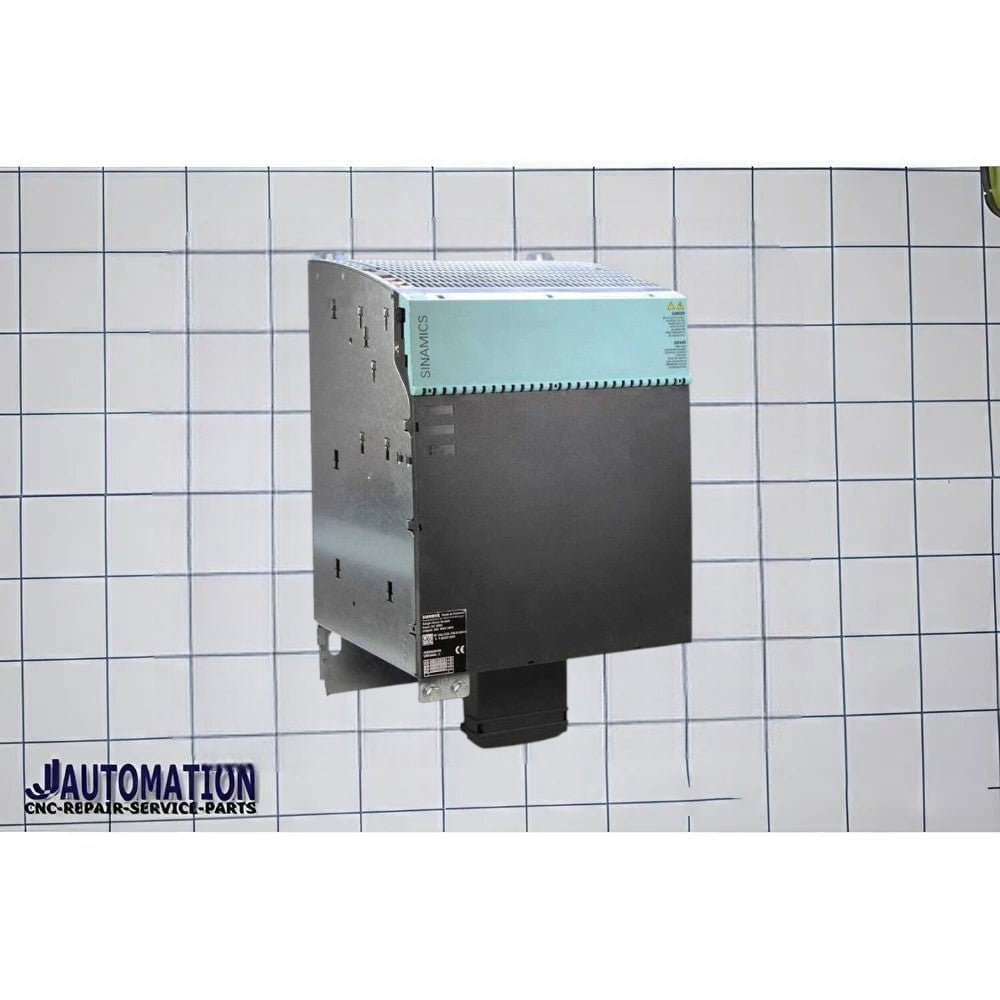

Siemens 6SL3320-1TG35-8AA3 SINAMICS S120 Single Motor Module | 675–1035 V DC | 3AC 0–690 V | 605 A | 560 kW
Product Description
The Siemens 6SL3320-1TG35-8AA3 is a high-performance SINAMICS S120 Single Motor Module designed for high-power CNC machine tools, heavy industrial automation, steel processing, mining, and advanced motion control applications. Operating from a 675–1035 V DC link, it delivers a 3-phase output voltage of 0–690 V AC with a rated output current of 605 A and a rated power of up to 560 kW, making it ideal for controlling large servo motors, spindle motors, and asynchronous motors in demanding industrial environments.
Built as an HX frame built-in unit with IP00 protection and internal air cooling, the 6SL3320-1TG35-8AA3 provides excellent overload capability, efficient thermal management, and highly accurate motor control. Integrated DRIVE-CLiQ communication ensures seamless connectivity with Siemens SINAMICS S120 drive systems, while Extended Safety Integrated functions enhance machine safety and operational reliability.
Engineered for continuous heavy-duty operation, this motor module is an excellent solution for OEM machine builders and industries requiring reliable, high-power drive technology with maximum efficiency and long service life.
Key Features
- Genuine Siemens SINAMICS S120 Single Motor Module
- Part Number: 6SL3320-1TG35-8AA3
- DC Link Voltage: 675–1035 V DC
- Output Voltage: 3AC 0–690 V
- Rated Output Current: 605 A
- Base Load Current (IL): 590 A
- Base Load Current (IH): 530 A
- Maximum Output Current: 885 A
- Rated Power (IL): 560 kW
- Rated Power (IH): 500 kW
- HX frame built-in construction
- Internal air cooling
- IP00 protection class
- Integrated DRIVE-CLiQ communication
- Supports Extended Safety Integrated
- Optimized for Siemens SINAMICS S120 systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3320-1TG35-8AA3 |
| Product Family | SINAMICS S120 |
| Product Type | Single Motor Module |
| DC Link Voltage | 675–1035 V DC |
| Output Voltage | 3AC 0–690 V |
| Rated Output Current | 605 A |
| Base Load Current (IL) | 590 A |
| Base Load Current (IH) | 530 A |
| Maximum Output Current | 885 A |
| Rated Power (IL) | 560 kW |
| Rated Power (IH) | 500 kW |
| Output Frequency | 0–550 Hz |
| Frame Size | HX |
| Cooling Method | Internal Air Cooling |
| Protection Class | IP00 |
| Communication | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Compatible Drive System | Siemens SINAMICS S120 |
Note: Technical specifications may vary depending on system configuration and operating conditions. Always verify compatibility using the official Siemens documentation before installation.
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Turning Centers
- High-Power Servo Drive Systems
- Heavy-Duty Spindle Drives
- Steel Processing Equipment
- Metal Processing Machinery
- Mining Equipment
- Material Handling Systems
- Heavy Industrial Automation
- Paper & Pulp Industry
- OEM Machine Building
