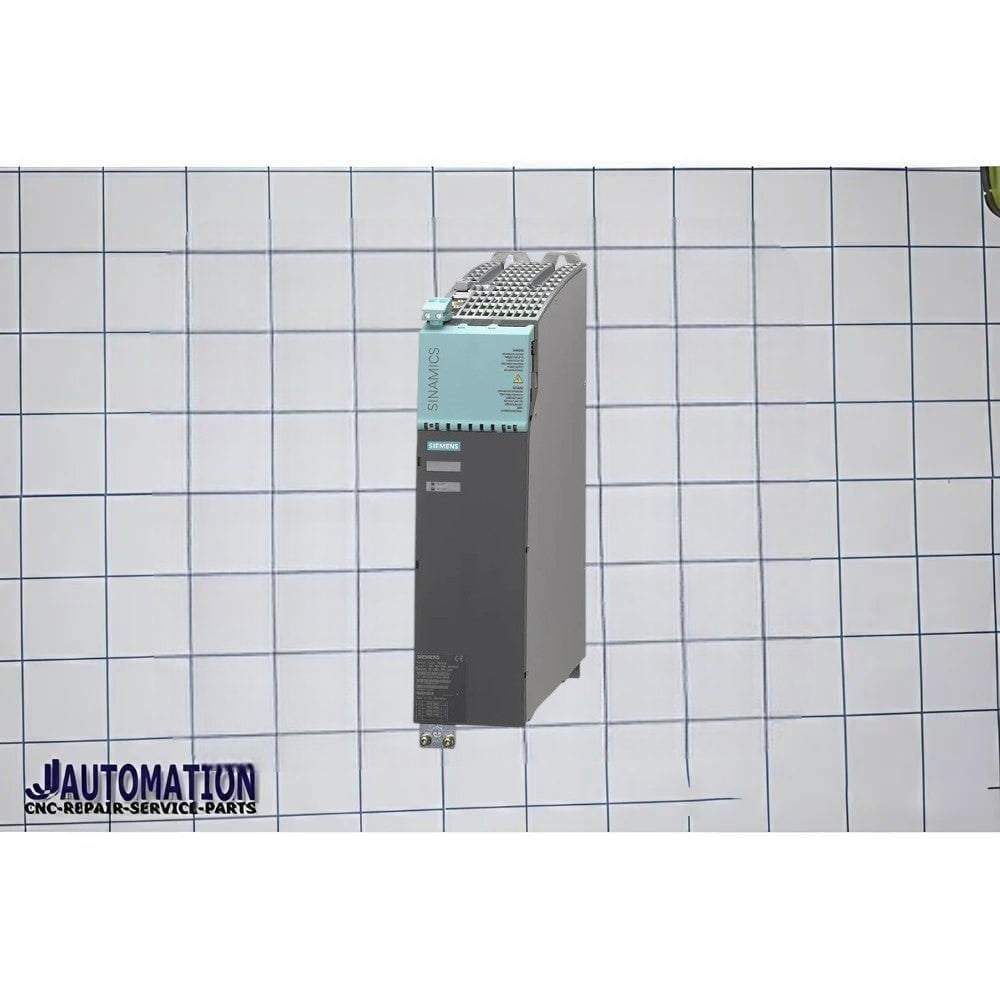

Siemens 6SL3130-6TE23-6AA3 Description
The Siemens 6SL3130-6TE23-6AA3 is a SINAMICS S120 Smart Line Module (SLM) designed to convert three-phase AC mains power into a stable DC link voltage for SINAMICS S120 drive systems. Operating on 3 AC 380–480 V, 50/60 Hz, the module provides a 600 V DC output with a rated DC link current of 60 A and a power rating of 36 kW. Its compact Booksize design and internal air cooling make it ideal for medium- to high-power industrial motion-control applications.
The Smart Line Module serves as the central power supply unit for SINAMICS S120 systems, supplying regulated DC power to connected Motor Modules. It supports efficient energy management, reliable operation, and seamless integration through the Siemens DRIVE-CLiQ communication interface. The module includes a DRIVE-CLiQ cable and is optimized for multi-axis servo and spindle drive applications.
Designed for industrial automation environments, the 6SL3130-6TE23-6AA3 is widely used in CNC machine tools, robotics, packaging machinery, material handling systems, printing equipment, and other applications requiring dependable DC link power generation and high-performance motion control.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3130-6TE23-6AA3 |
| Product Type | Smart Line Module (SLM) |
| Input Voltage | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| DC Output Voltage | 600 V DC |
| DC Link Current | 60 A |
| Rated Power | 36 kW |
| Cooling Method | Internal Air Cooling |
| Design Format | Booksize |
⚙️ Main Functions
- Converts three-phase AC power into DC link voltage
- Supplies power to SINAMICS S120 Motor Modules
- Supports multi-axis servo and spindle drive systems
- Provides stable DC bus voltage for motion-control applications
- Enables compact drive system architectures
- Supports DRIVE-CLiQ communication and diagnostics
- Simplifies commissioning through automatic component recognition
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Smart Line Module |
| Input Voltage | 3 AC 380–480 V |
| Frequency Range | 50/60 Hz |
| Rated Power | 36 kW |
| DC Link Voltage | 600 V DC |
| DC Link Current | 60 A |
| Frame Size | Booksize |
| Cooling | Internal Air Cooling |
| Dimensions (W × H × D) | 150 × 300 × 270 mm |
| Weight | Approx. 10.3–10.7 kg |
🧠 System Role
In a SINAMICS S120 architecture:
3-Phase AC Mains
→ 6SL3130-6TE23-6AA3 Smart Line Module
→ 600 V DC Link
→ Motor Modules
→ Servo Motors / Spindle Motors
The Smart Line Module acts as the power conversion stage, generating the DC link voltage required by connected SINAMICS S120 drive modules.
🏭 Typical Applications
- CNC machining centers
- SINUMERIK-controlled machine tools
- Robotics and automation systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Conveyor automation
- Multi-axis servo drive installations
⭐ Key Benefits
- Reliable AC-to-DC power conversion
- Compact Booksize design
- Stable 600 V DC link output
- High 60 A DC link current capability
- Seamless SINAMICS S120 integration
- Internal air cooling for efficient thermal management
- Simplified installation with included DRIVE-CLiQ cable
- Proven Siemens industrial drive technology
