Description

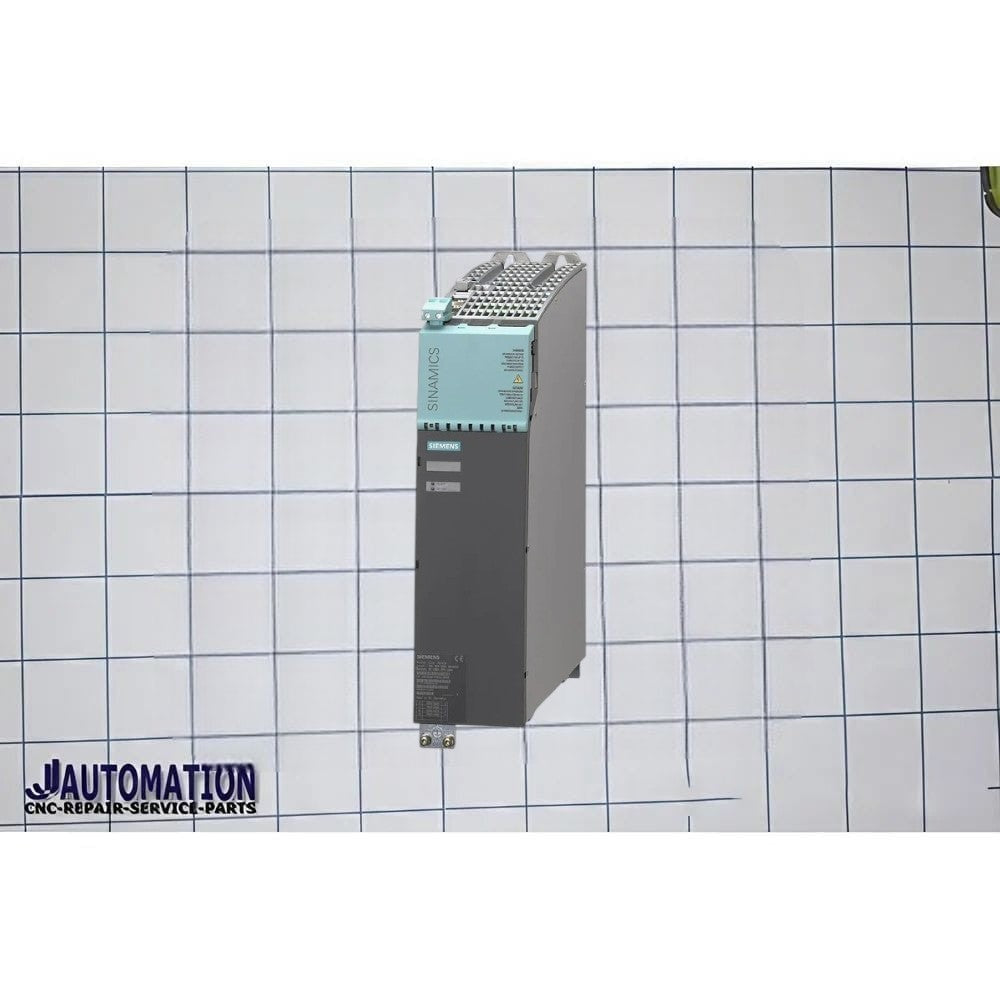

Siemens 6SL3130-6TE25-5AA3 Description
The Siemens 6SL3130-6TE25-5AA3 is a SINAMICS S120 Smart Line Module (SLM) designed to convert three-phase AC mains power into a stable DC link voltage for SINAMICS S120 drive systems. Operating on 3 AC 380–480 V, 50/60 Hz, the module delivers a 600 V DC output with a rated DC link current of 90 A and a power rating of 55 kW. It features a compact Booksize frame, internal air cooling, and includes a DRIVE-CLiQ communication cable for seamless integration with SINAMICS S120 components.
The Smart Line Module serves as the central power supply unit within the SINAMICS S120 architecture, supplying regulated DC power to connected Motor Modules. It provides efficient AC-to-DC conversion, simplified installation, and reliable operation for demanding servo and spindle drive applications. The module is optimized for multi-axis motion-control systems used in machine tools and industrial automation.
Designed for high-performance industrial environments, the 6SL3130-6TE25-5AA3 is widely used in CNC machine tools, robotics, packaging machinery, material handling systems, printing equipment, and automated production lines requiring dependable DC link power generation.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3130-6TE25-5AA3 |
| Product Type | Smart Line Module (SLM) |
| Input Voltage | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| Output Voltage | 600 V DC |
| DC Link Current | 90 A |
| Rated Power | 55 kW |
| Cooling Method | Internal Air Cooling |
| Design Format | Booksize |
⚙️ Main Functions
- Converts three-phase AC power into DC link voltage
- Supplies power to SINAMICS S120 Motor Modules
- Supports multi-axis servo and spindle drive systems
- Provides stable DC bus voltage for motion-control applications
- Enables compact drive cabinet designs
- Supports DRIVE-CLiQ communication and diagnostics
- Simplifies commissioning and system integration
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Smart Line Module |
| Input Voltage | 3 AC 380–480 V |
| Frequency Range | 50/60 Hz |
| Rated Power | 55 kW |
| Output Voltage | 600 V DC |
| DC Link Current | 90 A |
| Input Current | Approx. 94 A |
| Dimensions (W × H × D) | 200 × 380 × 270 mm |
| Weight | Approx. 16–17 kg |
| Cooling | Internal Air Cooling |
| Frame Size | Booksize |
🧠 System Role
In a SINAMICS S120 architecture:
3-Phase AC Mains
→ 6SL3130-6TE25-5AA3 Smart Line Module
→ 600 V DC Link
→ Motor Modules
→ Servo Motors / Spindle Motors
The Smart Line Module acts as the AC-to-DC power conversion stage, supplying the DC link voltage required by SINAMICS S120 Motor Modules.
🏭 Typical Applications
- CNC machining centers
- SINUMERIK-controlled machine tools
- Robotics systems
- Packaging machinery
- Printing and converting equipment
- Material handling systems
- Conveyor automation
- Multi-axis servo drive installations
⭐ Key Benefits
- Reliable AC-to-DC power conversion
- High 55 kW power capability
- Stable 600 V DC link output
- Compact Booksize design
- Integrated DRIVE-CLiQ connectivity
- Efficient internal air cooling
- Easy integration with SINAMICS S120 systems
- Proven Siemens industrial drive technology
