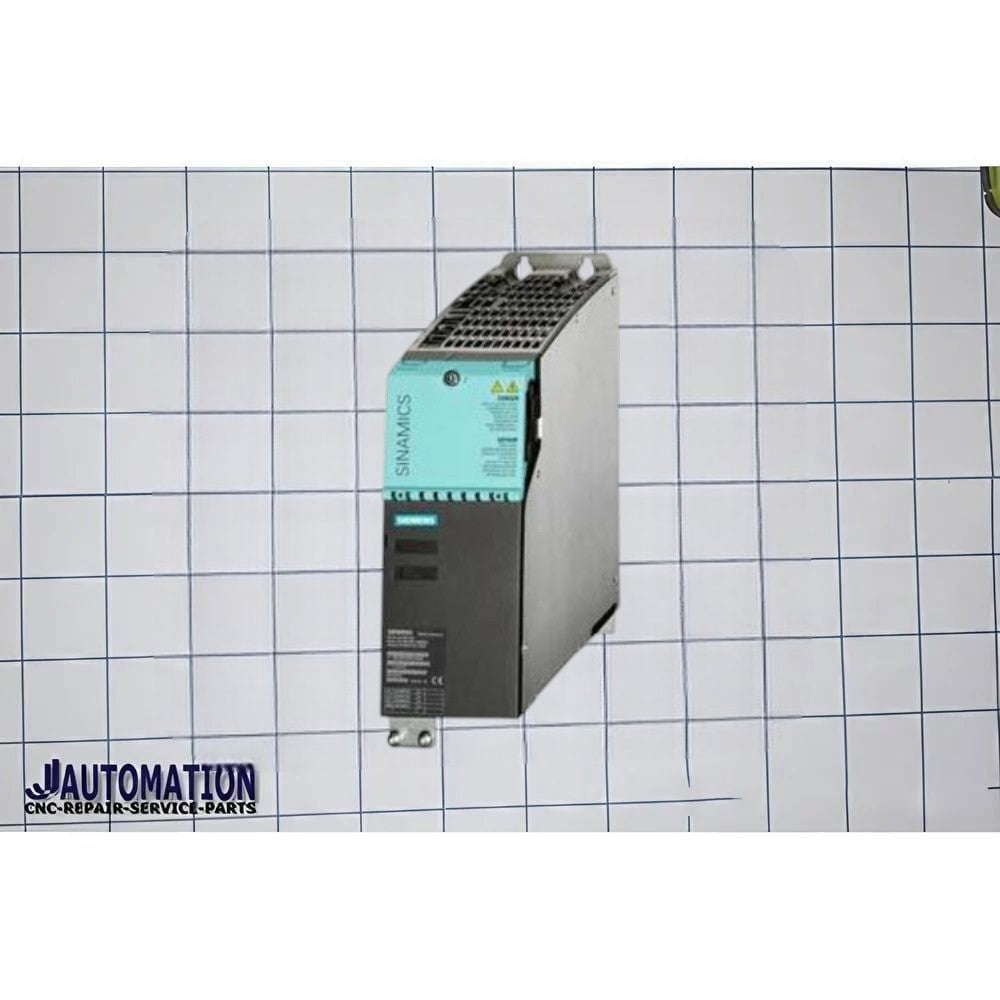

Siemens 6SL3430-6TE21-6AA1 Description
The Siemens 6SL3430-6TE21-6AA1 is a SINAMICS S120 Smart Line Module designed to convert a three-phase AC mains supply into a stable DC link voltage for SINAMICS S120 drive systems. It operates with an input voltage of 3 AC 380–480 V, 50/60 Hz and provides a DC output of 600 V, 27 A, supporting drive systems with a power rating of 16 kW. The module features a Booksize Compact design with internal air cooling and includes a DRIVE-CLiQ communication cable for seamless integration into SINAMICS architectures. printing systems, material handling equipment, and other industrial automation applications requiring precise motion control and dependable power conversion. Cooling |
mains power into DC link voltage
- Supplies energy to SINAMICS S120 Motor Modules
- Provides stable DC bus power for drive systems
- Supports modular SINAMICS S120 architectures
- Enables efficient power distribution within multi-axis systems
- Integrates via DRIVE-CLiQ communication technology
- Supports high-performance motion-control applications
| Value |
|---|---|
| Input Supply | 3 AC 380–480 V |
| Frequency Range | 50/60 Hz |
| DC Output Voltage | 600 V DC |
| Output Current | 27 A |
| Rated Power | 16 kW |
| Cooling | Internal Air Cooling |
| Frame Design | Booksize Compact |
| Communication | DRIVE-CLiQ |
connected drive components. for SINAMICS drive systems. Featuring a compact Booksize design, internal air cooling, and integrated DRIVE-CLiQ connectivity, it provides reliable power conversion for CNC machines, robotics, packaging equipment, and industrial automation applications.
