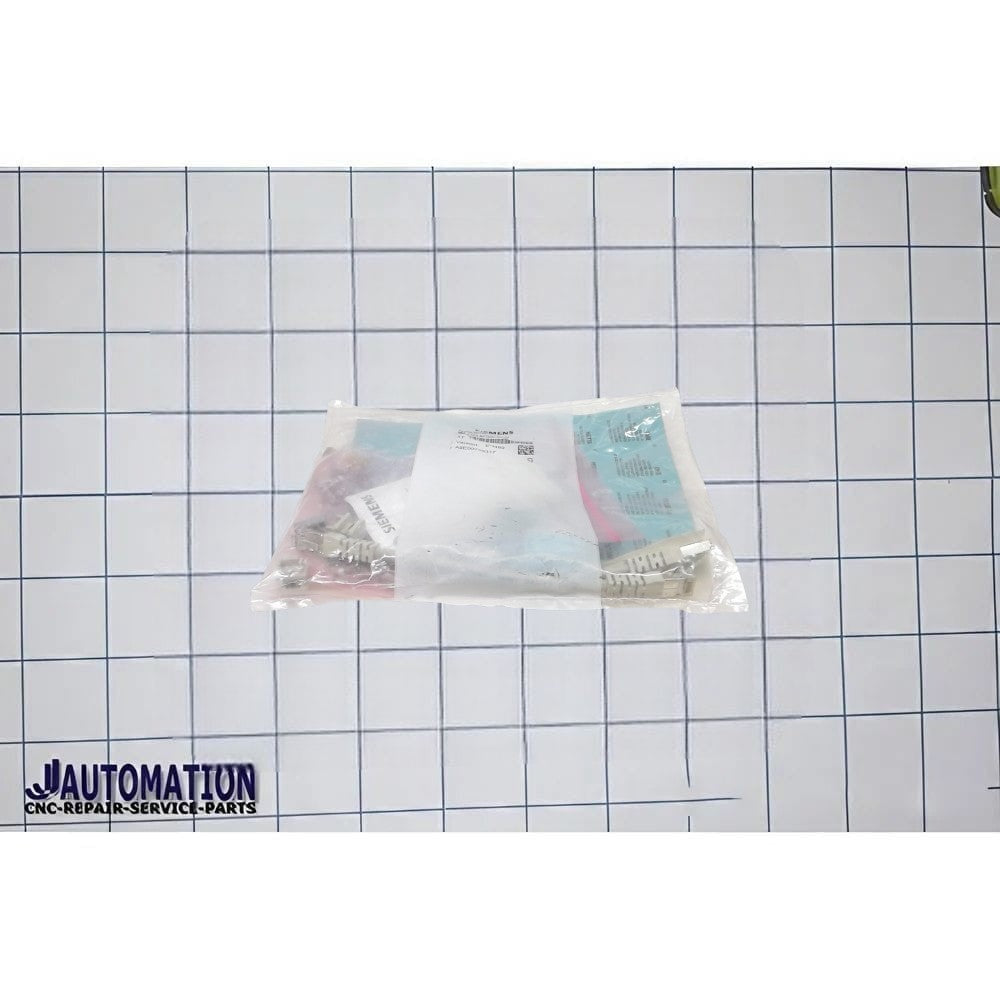

Siemens 6SL3163-8FD00-0AA0 – SINAMICS S120 Terminal Kit ALM/SLM 100 mm
The Siemens 6SL3163-8FD00-0AA0 is a SINAMICS S120 Terminal Kit designed for Active Line Modules (ALM) and Smart Line Modules (SLM) with 100 mm width in the SINAMICS S120 drive system. It provides the required power and control connection terminals for proper installation and commissioning of line modules.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3163-8FD00-0AA0 |
| Product Type | Terminal Kit |
| Application | Active Line Module (ALM) / Smart Line Module (SLM) |
| Compatible Module Width | 100 mm |
| System Format | Booksize |
| Product Lifecycle | Active Product |
📌 Siemens officially identifies this item as:
"SINAMICS S120 Terminal Kit ALM/SLM 100 mm".
⚙️ Main Functions
The 6SL3163-8FD00-0AA0 is designed to:
- Provide power and control connection terminals for SINAMICS line modules
- Simplify installation of Active Line Modules and Smart Line Modules
- Ensure reliable electrical connections within S120 drive systems
- Support service and maintenance activities
- Enable organized cabinet wiring and module integration
- Facilitate commissioning of SINAMICS S120 systems
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Terminal Kit |
| Compatible Modules | ALM / SLM |
| Module Width | 100 mm |
| System Family | SINAMICS S120 |
| Mounting Format | Booksize |
| Net Weight | Approx. 0.06 kg |
| Country of Origin | Germany |
Technical information published by Siemens and distributors lists the kit weight at approximately 0.06 kg.
🧠 System Role
In a SINAMICS S120 architecture:
Mains Power Supply
→ Active Line Module (ALM) / Smart Line Module (SLM)
→ 6SL3163-8FD00-0AA0 Terminal Kit
→ DC Link and Control Connections
→ Motor Modules and Servo Drives
The terminal kit serves as the electrical connection interface required for proper installation and operation of 100 mm line modules.
🔍 Related Terminal Kits
| Model | Application |
|---|---|
| 6SL3162-8AB00-0AA0 | Motor Module Terminal Kit 50 mm |
| 6SL3162-8BD00-0AA0 | Motor Module Terminal Kit 100 mm |
| 6SL3163-8FD00-0AA0 | ALM / SLM Terminal Kit 100 mm |
The 6SL3163-8FD00-0AA0 is specifically intended for Line Modules (ALM/SLM), whereas the 6SL3162 series terminal kits are generally used with Motor Modules.
